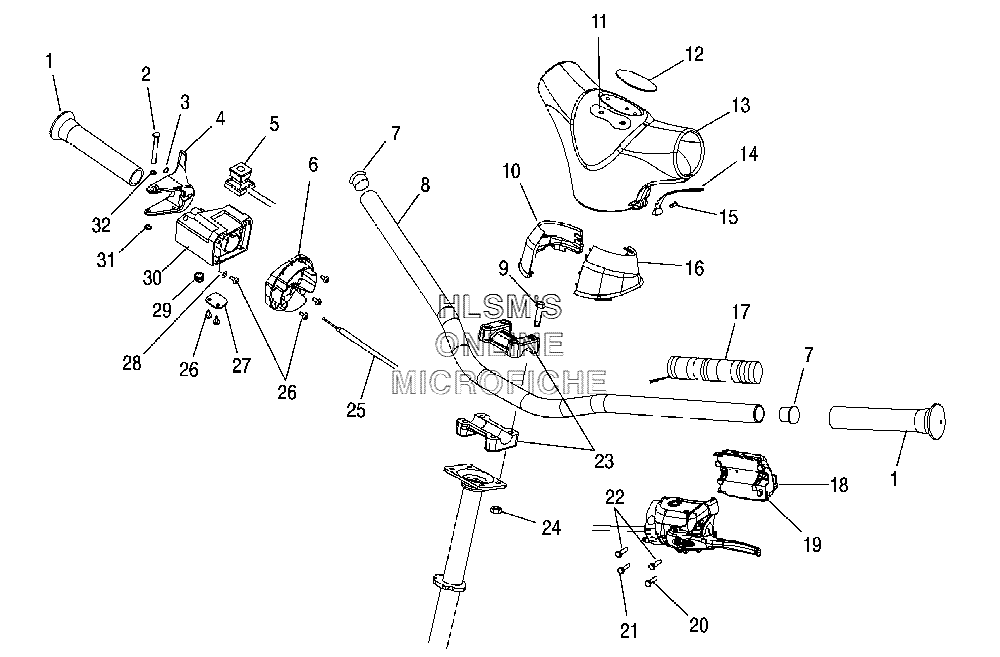

HANDLEBAR ASSEMBLY W/ CONTROLS для Polaris 340 Touring (S06NT3AS) - 2006 года выпуска
‹-+›
-
№АртикулНазвание
-
15432634 GRIP, HANDLEBARGRIP, HANDLEBAR
-
27661624 PIN RETAININGPIN RETAINING
-
37710503 RING, RETAININGRING, RETAINING
-
45430601 LEVER THROTTLELEVER THROTTLE
-
42010213 LEVER HEATER ASSY, HI/LO (30MM)LEVER HEATER ASSY, HI/LO (30MM)
-
54110106 SWITCH, AUXILIARY SHUT OFFSWITCH, AUXILIARY SHUT OFF
-
65433345 ADAPTER BLOCK, THROTTLEADAPTER BLOCK, THROTTLE
-
75431096 PLUGPLUG
-
85243355-067 HANDLEBAR (BLACK)HANDLEBAR (BLACK)
-
97517238 SCREWSCREW
-
105434488 COLLAR CONSOLE (RIGHT)COLLAR CONSOLE (RIGHT)
-
117670106 NUT PUSH ONNUT PUSH ON
-
125434179 EMBLEM ''STAR'' HANDLEBAR (PLUM BEZEL)EMBLEM ''STAR'' HANDLEBAR (PLUM BEZEL)
-
135433159-070 COVER HANDLEBAR (BLACK)COVER HANDLEBAR (BLACK)
-
145433160-070 SLIDE HANDLEBAR COVER (BLACK)SLIDE HANDLEBAR COVER (BLACK)
-
154010287 CLIP, DART NYLON (BLACK)CLIP, DART NYLON (BLACK)
-
165434487 COLLAR CONSOLE, STD (LEFT)COLLAR CONSOLE, STD (LEFT)
-
172460677 HEATER, GRIP, LO/MED/HIHEATER, GRIP, LO/MED/HI
-
185433291 BUTTON SWITCH HI/LO CONTROL (LEFT)BUTTON SWITCH HI/LO CONTROL (LEFT)
-
192010206 CONTROL ASSY, BASIC (LEFT)CONTROL ASSY, BASIC (LEFT)
-
207517566 SCREW (1.50)SCREW (1.50)
-
217512078 SCREW (1.12)SCREW (1.12)
-
227517441 SCREW (.75)SCREW (.75)
-
235630187-067 BLOCK, HANDLEBAR (BLACK)BLOCK, HANDLEBAR (BLACK)
-
247542122 NUT NYLOKNUT NYLOK
-
257081233 CABLE THROTTLECABLE THROTTLE
-
267511848 SCREWSCREW
-
275432261 HOLDER WIREHOLDER WIRE
-
287555727 WASHERWASHER
-
297512465 SCREW, SETSCREW, SET
-
305431592 BLOCK, THROTTLE/BRAKEBLOCK, THROTTLE/BRAKE
-
317710401 RING, RETAININGRING, RETAINING
-
327555730 WASHERWASHER
