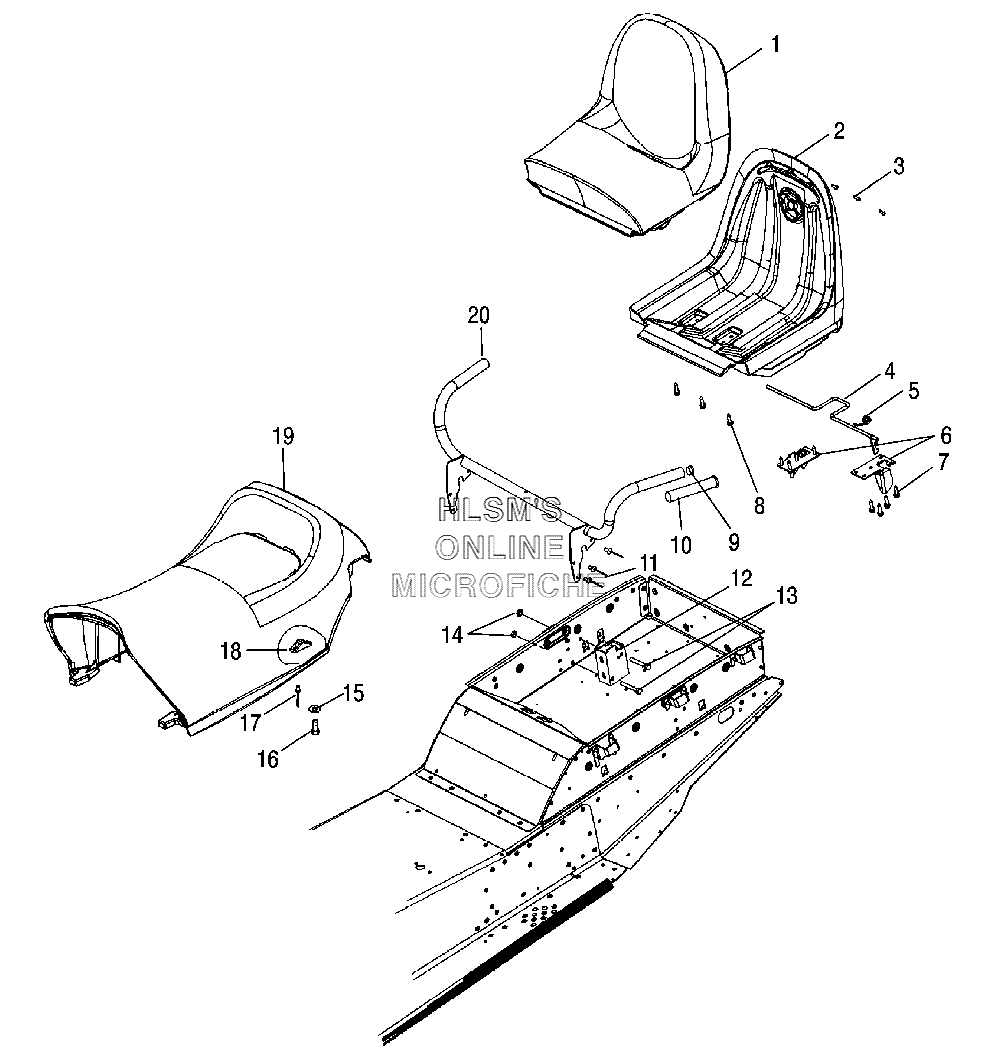

SEAT W/ TAILLIGHT для Polaris 340 Touring (S06NT3AS) - 2006 года выпуска
-
№АртикулНазвание
-
12683502 BASE SEAT, PASSENGER, SECONDARY ASSYBASE SEAT, PASSENGER, SECONDARY ASSY
-
12683503 SEAT COVER, PASSENGER ASSYSEAT COVER, PASSENGER ASSY
-
22683501 SEAT, PASSENGER ASSY (INCL. 1 8)SEAT, PASSENGER ASSY (INCL. 1 8)
-
37512026 SCREWSCREW
-
41013935 WELD LATCH, SEATWELD LATCH, SEAT
-
57042246 SPRING SEAT LATCH, TORSIONSPRING SEAT LATCH, TORSION
-
65249088 PLATE LATCH MOUNT, TOUR (LEFT)PLATE LATCH MOUNT, TOUR (LEFT)
-
65249089 PLATE LATCH MOUNT, TOUR (RIGHT)PLATE LATCH MOUNT, TOUR (RIGHT)
-
77621485 RIVETRIVET
-
87512098 SCREWSCREW
-
95431096 PLUGPLUG
-
105432634 GRIP, HANDLEBARGRIP, HANDLEBAR
-
117661637 RIVET, INTERLOCKRIVET, INTERLOCK
-
125246855 TUBE STRIKERTUBE STRIKER
-
137512130 BOLTBOLT
-
147542122 NUT NYLOKNUT NYLOK
-
157558301 WASHER, FLATWASHER, FLAT
-
167517219 SCREWSCREW
-
177621319 RIVETRIVET
-
185631194 NUT SEATNUT SEAT
-
192683498 SEAT ASSYSEAT ASSY
-
192683499 SEAT COVER ASSYSEAT COVER ASSY
-
201014241-067 WELD GRABHANDLE, NON ADJUST (BLACK)WELD GRABHANDLE, NON ADJUST (BLACK)
-
2683071 BASE SEAT ASSY, PASSENGR, PRIMARY (INCL. 2 8)BASE SEAT ASSY, PASSENGR, PRIMARY (INCL. 2 8)
