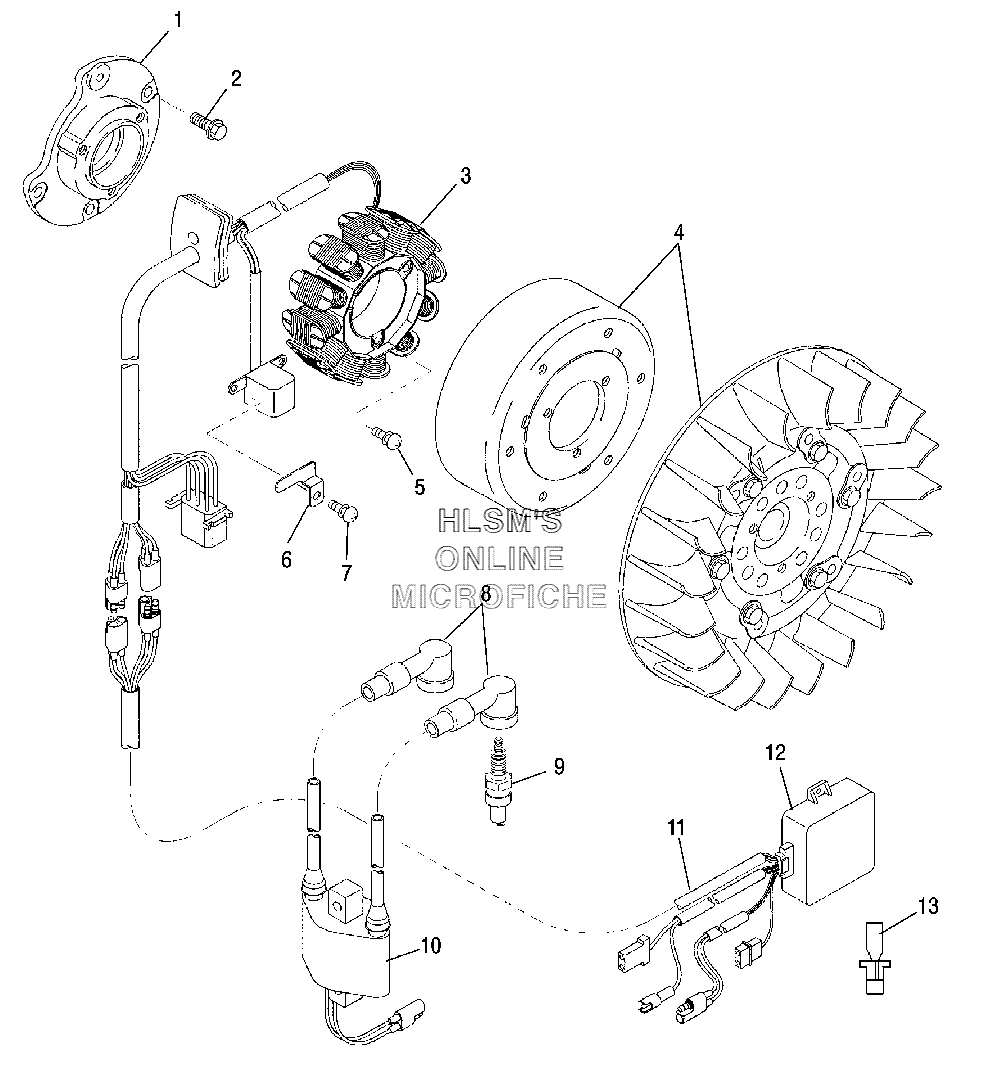

ELECTRICAL - MAGNETO ASSEMBLY W/ COIL для Polaris 340 Touring (S06NT3AS) - 2006 года выпуска`
-
№АртикулНазвание
-
13089477 PLATE, MAGNETOPLATE, MAGNETO
-
23089476 BOLT, FLANGEBOLT, FLANGE
-
33089472 STATOR ASSYSTATOR ASSY
-
43089475 FLYWHEEL ASSYFLYWHEEL ASSY
-
53085697 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
63089479 CLAMPCLAMP
-
73085698 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
84020129 RESISTOR PLUG CAPRESISTOR PLUG CAP
-
93070156 PLUG, SPARK, NGK BR8ESPLUG, SPARK, NGK BR8ES
-
103089478 IGNITION COIL ASSY (INCL. 8)IGNITION COIL ASSY (INCL. 8)
-
113087219 UNIT HARNESSUNIT HARNESS
-
123089473 CDI SYSTEM ASSY (INCL. 11)CDI SYSTEM ASSY (INCL. 11)
-
132461060 JUMPER STUBBER, W/ESJUMPER STUBBER, W/ES
