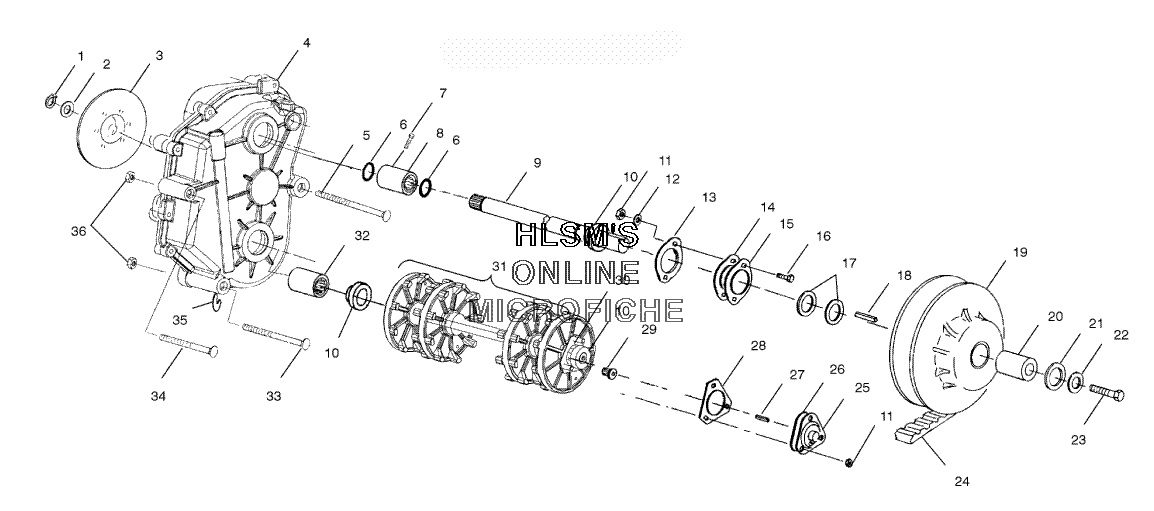

DRIVE SHAFT ASSY. для Polaris WIDETRAK LX (S03SU4BS) - 2003 года выпуска`
-
№АртикулНазвание
-
17713401 RING, RETAININGRING, RETAINING
-
27555922 BUSHING, MACHBUSHING, MACH
-
31910217 DISC, BRAKE ASSY.DISC, BRAKE ASSY.
-
57517291 BOLTBOLT
-
65410630 O-RINGO-RING
-
77517446 SCREWSCREW
-
81332219 COUPLER ASSY., 19T, W/GREASE, LONG (INCL. FITTING AND SCREW)COUPLER ASSY., 19T, W/GREASE, LONG (INCL. FITTING AND SCREW)
-
87080437 ZERK, GREASEZERK, GREASE
-
91332256 JACKSHAFT ASSY., LONG KEY (INCL. 10)JACKSHAFT ASSY., LONG KEY (INCL. 10)
-
103514525 BEARINGBEARING
-
117542324 NUT, NYLOKNUT, NYLOK
-
127558402 WASHER, FLATWASHER, FLAT
-
135222393 FLANGETTE (2 BOLT)FLANGETTE (2 BOLT)
-
145830135 GASKET, JACKSHAFT, 2 BOLTGASKET, JACKSHAFT, 2 BOLT
-
155222647 FLANGETTE (GREASABLE)FLANGETTE (GREASABLE)
-
167512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
177556509 BUSHINGBUSHING
-
187721132 KEY (1/4 X 3/16 X 2.25)KEY (1/4 X 3/16 X 2.25)
-
205431482 SPACER, INLET SHAFTSPACER, INLET SHAFT
-
217555806 WASHER, FLATWASHER, FLAT
-
227571626 WASHER, SPRINGWASHER, SPRING
-
237515502 BOLTBOLT
-
243211070 BELT, DRIVE (28 DEG)BELT, DRIVE (28 DEG)
-
253280116 ADAPTER, DRIVE, W/ZERKADAPTER, DRIVE, W/ZERK
-
265830012 GASKET, DRIVE ADAPTORGASKET, DRIVE ADAPTOR
-
273280017 KEY, SPEEDOMETER, SQUAREKEY, SPEEDOMETER, SQUARE
-
285243529 FLANGETTE OFFSET, W/HOLEFLANGETTE OFFSET, W/HOLE
-
293280019 BUSHING METAL SPEEDOMETERBUSHING METAL SPEEDOMETER
-
301012945 FLANGETTE W/SCREWS ASSY.FLANGETTE W/SCREWS ASSY.
-
311590338 DRIVESHAFT ASSY. (INCL.29 31)DRIVESHAFT ASSY. (INCL.29 31)
-
321332260 COUPLER ASSY., 19T, W/GREASE ZERKCOUPLER ASSY., 19T, W/GREASE ZERK
-
327080437 ZERK, GREASEZERK, GREASE
-
337517292 BOLTBOLT
-
347515474 BOLTBOLT
-
355210760 SPACER (.080)SPACER (.080)
-
355210759 SPACER (.063)SPACER (.063)
-
355210764 SPACER (.020)SPACER (.020)
-
355211065 SHIM (.010)SHIM (.010)
-
367542423 NUT, FLANGENUT, FLANGE
