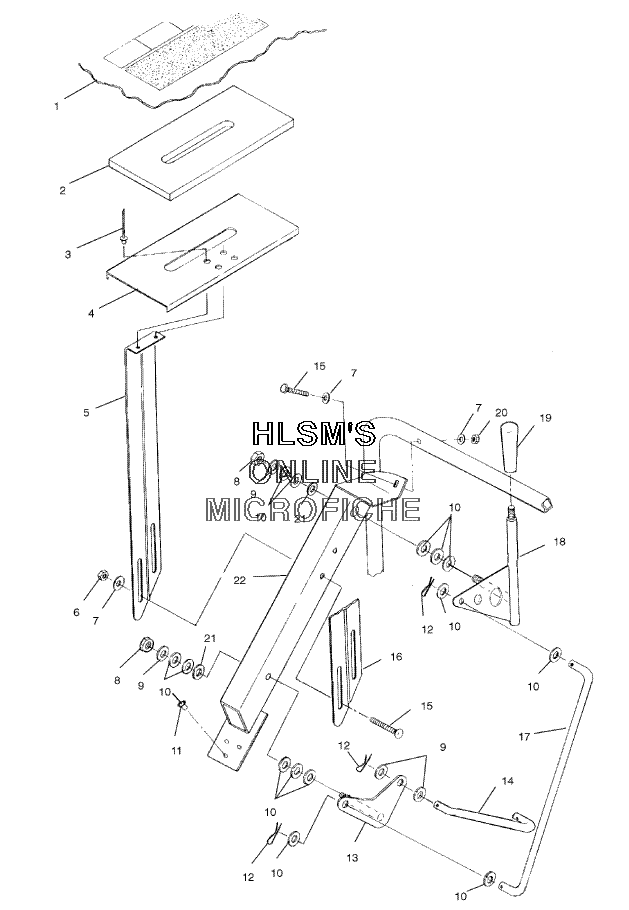

SHIFT LINKAGE для Polaris WIDETRAK LX (S03SU4BS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    7077619 DECAL, SHIFT PATTERN
    DECAL, SHIFT PATTERN
  • 2
    5811768 FOAM, INDICATOR PLATE, HYB
    FOAM, INDICATOR PLATE, HYB
  • 3
    7661637 RIVET, INTERLOCK, Z
    RIVET, INTERLOCK, Z
  • 4
    5243204 PLATE INDICATOR
    PLATE INDICATOR
  • 5
    5241897 SUPPORT (RIGHT), INDIC.PLATE
    SUPPORT (RIGHT), INDIC.PLATE
  • 6
    7542101 NUT HEX LOCK
    NUT HEX LOCK
  • 7
    7558301 WASHER, FLAT
    WASHER, FLAT
  • 8
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 9
    7558402 WASHER, FLAT
    WASHER, FLAT
  • 10
    7555820 WASHER, FLAT
    WASHER, FLAT
  • 11
    7661637 RIVET, INTERLOCK, Z
    RIVET, INTERLOCK, Z
  • 12
    7661203 PIN, COTTER
    PIN, COTTER
  • 13
    1012558 PLATE (LOWER) PIVOT
    PLATE (LOWER) PIVOT
  • 14
    5224770 ROD, LINKAGE (LOWER)
    ROD, LINKAGE (LOWER)
  • 15
    7517931 BOLT CARR 1/4 20 UNC 2AX1.5 Y
    BOLT CARR 1/4 20 UNC 2AX1.5 Y
  • 16
    5241896 SUPPORT (LEFT), INDIC.PLATE
    SUPPORT (LEFT), INDIC.PLATE
  • 17
    5224769 ROD, UP.LINKAGE
    ROD, UP.LINKAGE
  • 18
    1341250 ROD, SHIFT LEVER
    ROD, SHIFT LEVER
  • 19
    5132004 HANDLE SHIFT
    HANDLE SHIFT
  • 20
    7542122 NUT NYLOK
    NUT NYLOK
  • 21
    7571619 WASHER, WAVE
    WASHER, WAVE
  • 22
    1012559 SUPPORT, SHIFT LEVER ROD
    SUPPORT, SHIFT LEVER ROD
