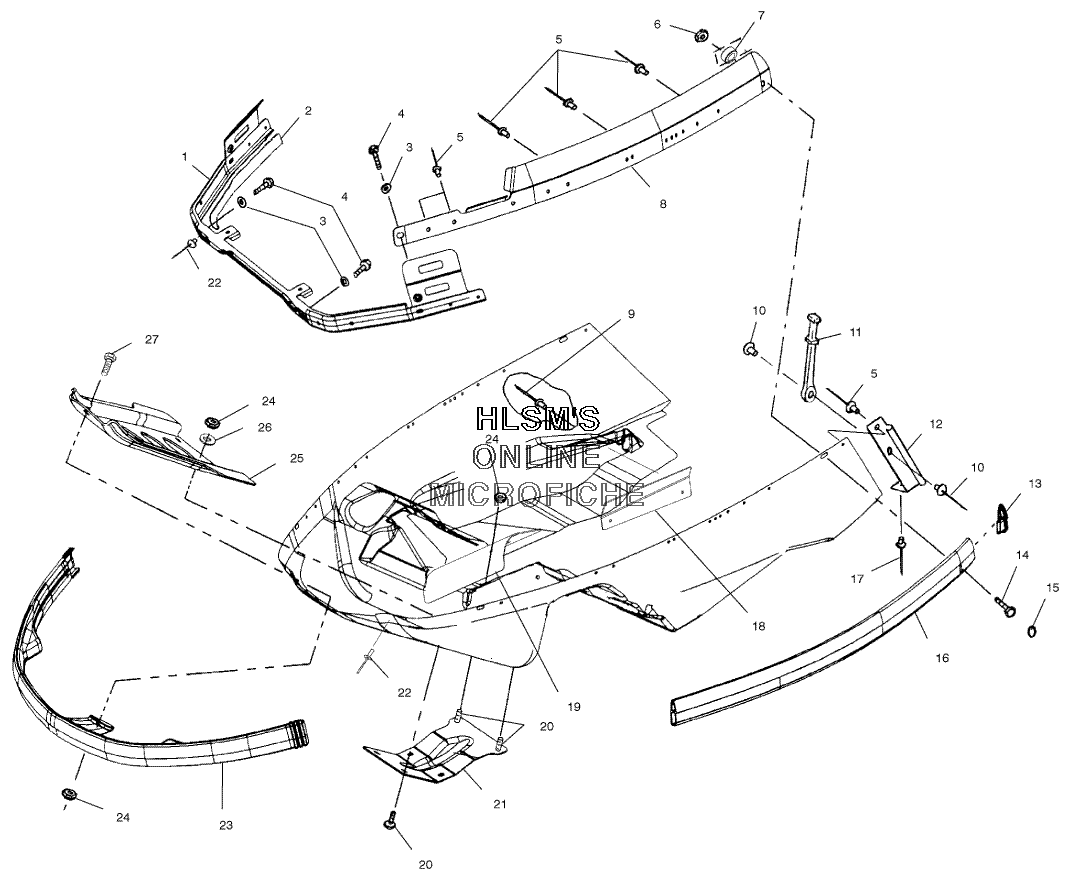

NOSEPAN ASSEMBLY #2 для Polaris WIDETRAK LX (S03SU4BS) - 2003 года выпуска`
-
№АртикулНазвание
-
11012783-067 BRACE HINGE (BLACK)BRACE HINGE (BLACK)
-
25811747 FOIL, TAPE 1"X15"FOIL, TAPE 1"X15"
-
37552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
47512232 BOLTBOLT
-
57621402 RIVET, POPRIVET, POP
-
67542103 NUT, FLEXLOCNUT, FLEXLOC
-
77555932 WASHER, NYLONWASHER, NYLON
-
85243007 GUIDE, HOOD (LEFT)GUIDE, HOOD (LEFT)
-
85243006 GUIDE, HOOD (RIGHT)GUIDE, HOOD (RIGHT)
-
97621472 RIVETRIVET
-
107621601 RIVETRIVET
-
115410370 STRAP, HOOD LATCHSTRAP, HOOD LATCH
-
125220522-067 BRACE, PAN (LEFT)BRACE, PAN (LEFT)
-
125220523-067 BRACE, PAN (RIGHT)BRACE, PAN (RIGHT)
-
135432887 CAP, BUMPER (LEFT/BLACK)CAP, BUMPER (LEFT/BLACK)
-
135432888 CAP, BUMPER (RIGHT/BLACK)CAP, BUMPER (RIGHT/BLACK)
-
147512290 BOLT, SOCKET HEADBOLT, SOCKET HEAD
-
157080416 PLUG, HOLEPLUG, HOLE
-
165243818-067 EXTRUSION BUMPER, FORM (LEFT/BLACK)EXTRUSION BUMPER, FORM (LEFT/BLACK)
-
165243461-067 EXTRUSION BUMPER, FORMED (RIGHT/BLACK)EXTRUSION BUMPER, FORMED (RIGHT/BLACK)
-
177661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
185243418 BRKT, HOSE PROTECTORBRKT, HOSE PROTECTOR
-
195243287 SHIELD SHOCK TOWERSHIELD SHOCK TOWER
-
207512193 BOLT, CARRIAGEBOLT, CARRIAGE
-
215242575-067 BRACE PAN (LOWER/BLACK)BRACE PAN (LOWER/BLACK)
-
227621463 RIVETRIVET
-
235432891-070 BUMPER (FRONT/BLACK)BUMPER (FRONT/BLACK)
-
247542122 NUT NYLOKNUT NYLOK
-
255243073 BRACE-PAN, W/T (UPPER/BLACK)BRACE-PAN, W/T (UPPER/BLACK)
-
267558301 WASHER, FLATWASHER, FLAT
-
277515175 BOLTBOLT
