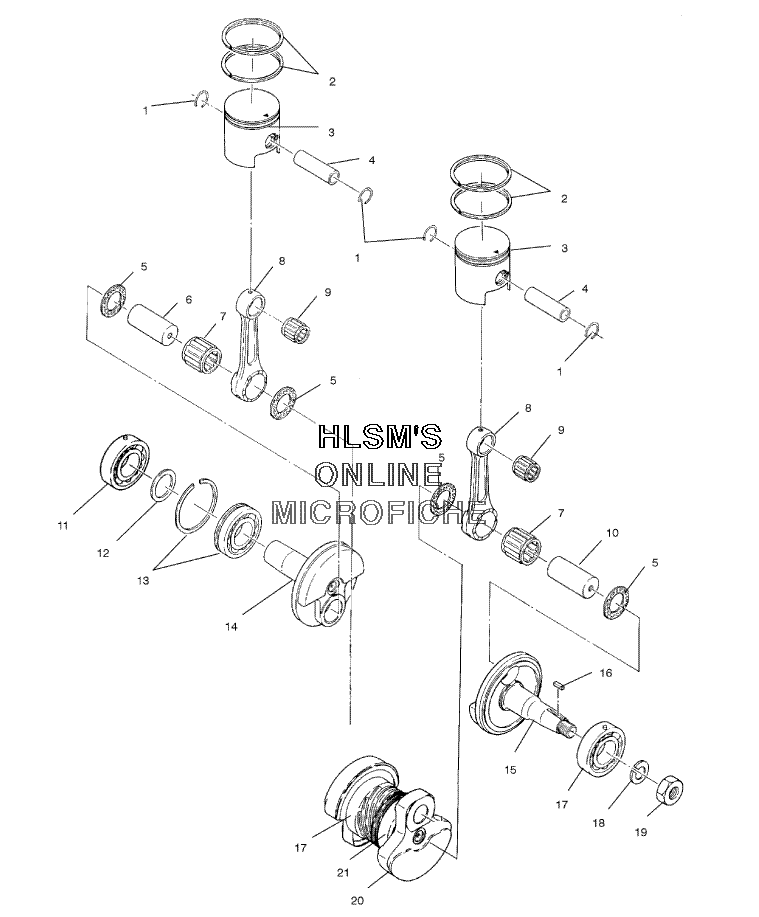

PISTON AND CRANKSHAFT для Polaris WIDETRAK LX (S03SU4BS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    3083839 CLIP, PISTON PIN,
    CLIP, PISTON PIN,
  • 2
    3084342 PISTON, RING, STANDARD(2/STANDARD)
    PISTON, RING, STANDARD(2/STANDARD)
  • 2
    3084343 SET, PISTON, RING, .010"/.25MM(2/0.25MM/.010"O/S)
    SET, PISTON, RING, .010"/.25MM(2/0.25MM/.010"O/S)
  • 2
    3084344 PISTON, RING, .020"/.50 MM O/S (2 (0.50MM/.020"O/S)
    PISTON, RING, .020"/.50 MM O/S (2 (0.50MM/.020"O/S)
  • 3
    3085869 PISTON, STANDARD (STANDARD)
    PISTON, STANDARD (STANDARD)
  • 3
    3085870 PISTON, .010"/.25MM O/S (0.25MM/.010"O/S)
    PISTON, .010"/.25MM O/S (0.25MM/.010"O/S)
  • 3
    3085871 SET, PISTON, .020"/.50MM O/S (0.50MM/.020"O/S)
    SET, PISTON, .020"/.50MM O/S (0.50MM/.020"O/S)
  • 4
    3083858 PIN, PISTON
    PIN, PISTON
  • 5
    3083277 SPACER, CRANKPIN
    SPACER, CRANKPIN
  • 6
    3083456 PIN, CRANK, 2
    PIN, CRANK, 2
  • 7
    3085628 BEARING, LARGE END
    BEARING, LARGE END
  • 8
    3083252 ROD CONNECTING
    ROD CONNECTING
  • 9
    3083216 BEARING, SMALL END
    BEARING, SMALL END
  • 10
    3083233 PIN, CRANK 1
    PIN, CRANK 1
  • 11
    3085205 BALL BEARING
    BALL BEARING
  • 12
    3085203 SPACER
    SPACER
  • 13
    3085204 BALL BEARING
    BALL BEARING
  • 14
    3087261 CRANKSHAFT 3(PTO SIDE/PTO SIDE)
    CRANKSHAFT 3(PTO SIDE/PTO SIDE)
  • 15
    3087260 CRANKSHAFT ASSY. (INCL. 5 8, 10 15, 17, 20)
    CRANKSHAFT ASSY. (INCL. 5 8, 10 15, 17, 20)
  • 15
    3086835 CRANKSHAFT 1(MAG SIDE/MAG SIDE)
    CRANKSHAFT 1(MAG SIDE/MAG SIDE)
  • 16
    3080130 KEY WOODRUFF
    KEY WOODRUFF
  • 17
    3084601 BEARING, BALL
    BEARING, BALL
  • 18
    3083094 WASHER SPRING
    WASHER SPRING
  • 19
    3083093 NUT
    NUT
  • 20
    3083713 CRANKSHAFT 2 (CENTER (INCL. 6, 10)
    CRANKSHAFT 2 (CENTER (INCL. 6, 10)
  • 21
    3086878 BEARING, BALL
    BEARING, BALL
