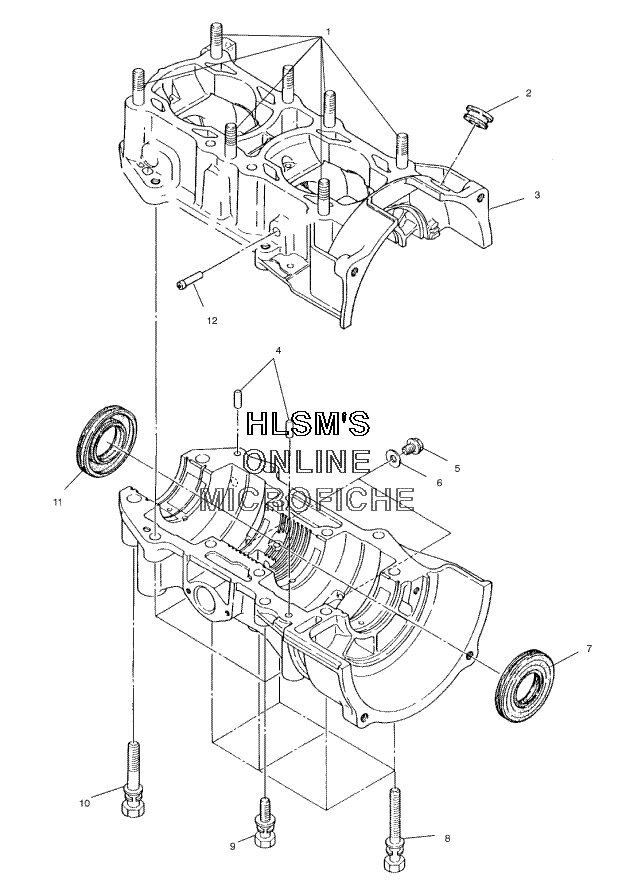

CRANKCASE ASSEMBLY для Polaris WIDETRAK LX (S03SU4BS) - 2003 года выпуска`
-
№АртикулНазвание
-
13084119 STUDSTUD
-
23082875 GROMMETGROMMET
-
33086832 CRANKCASE ASSY. (INCL. 1, 4, 8 10, 12)CRANKCASE ASSY. (INCL. 1, 4, 8 10, 12)
-
43080103 PIN, DOWELPIN, DOWEL
-
53083568 BOLT, FLANGEBOLT, FLANGE
-
63082758 WASHER, FLATWASHER, FLAT
-
73086833 SEAL, OIL (MAG SIDE)SEAL, OIL (MAG SIDE)
-
83080739 BOLT AND WASHER ASSY.BOLT AND WASHER ASSY.
-
93083078 BOLT AND WASHER ASSY.BOLT AND WASHER ASSY.
-
103084220 BOLT AND WASHER ASSY.BOLT AND WASHER ASSY.
-
113085200 SEAL, OIL (PTO SHAFT)SEAL, OIL (PTO SHAFT)
-
123083798 PIPE, PULSE (25MM)PIPE, PULSE (25MM)
