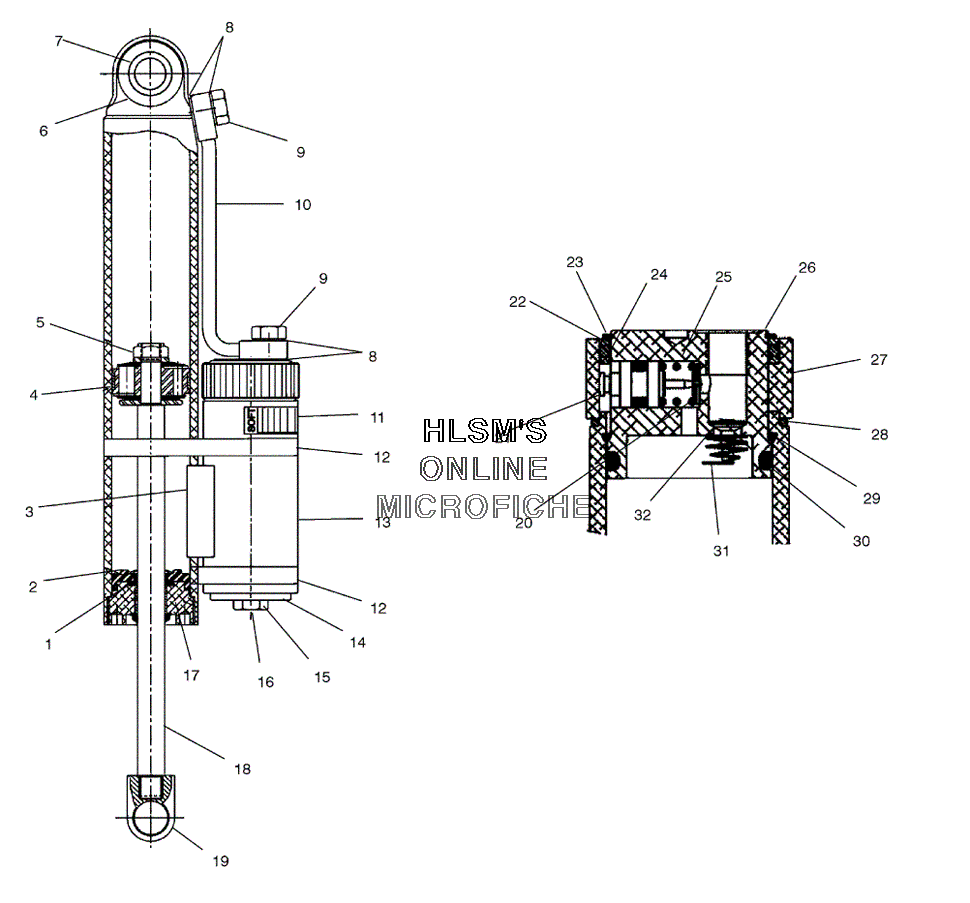

SUSPENSION - REAR TRACK SHOCK для Polaris 800 RMK 159 BUILT BEFORE 1/1/02 (S03NM8CS) - 2003 года выпуска

№

Артикул

Название
1

1700021 ROD SEAL

ROD SEAL
2

1700022 CAP SEAL

CAP SEAL
3

1700162 ISOLATOR

ISOLATOR
4

1700110 BANDED PISTON .094" ORIFICE

BANDED PISTON .094" ORIFICE
4

1700031 PISTON WEAR BAND

PISTON WEAR BAND
4

1700077 TOP - OUT WASHER

TOP - OUT WASHER
4

1700078 BACK - UP WASHER

BACK - UP WASHER
5

1700057 NUT

NUT
6

1700073 BUSHING

BUSHING
7

1700069 SLEEVE

SLEEVE
8

1700168 WASHER - COPPER

WASHER - COPPER
9

1700169 BOLT - BANJO

BOLT - BANJO
10

1700167 PRESSURE LINE

PRESSURE LINE
11

1700166 LABEL - ADJUSTMENT

LABEL - ADJUSTMENT
12

1700163 CLAMP - CRIMP STYLE

CLAMP - CRIMP STYLE
12

1700063 HOSE CLAMP

HOSE CLAMP
13

1700165 RESERVOIR CYLINDER

RESERVOIR CYLINDER
14

1700164 RES END CAP W/VALVE

RES END CAP W/VALVE
15

1700053 PRESS - VALVE ASSY

PRESS - VALVE ASSY
15

1700045 PRESS - VALVE O - RING

PRESS - VALVE O - RING
16

1700055 VALVE SCREW

VALVE SCREW
17

1700007 CYL HEAD ASSY(1/2" ROD)

CYL HEAD ASSY(1/2" ROD)
18

1700183 SHAFT

SHAFT
19

1700024 UPPER MOUNT

UPPER MOUNT
20

1700177 VALVE - METERING

VALVE - METERING
21

1700174 ASSY - PLUNGER

ASSY - PLUNGER
22

1700173 SPACER

SPACER
23

1700175 RING - RETAINING

RING - RETAINING
24

1700051 CYL - HEAD O - RING

CYL - HEAD O - RING
25

1700176 SPRING - COMPRESSION

SPRING - COMPRESSION
26

1700181 HOUSING - ADJUSTER

HOUSING - ADJUSTER
27

1700172 ADJUSTING KNOB

ADJUSTING KNOB
28

1700171 O - RING

O - RING
29

1700170 CIRCLIP

CIRCLIP
30

1700149 CYL - HEAD O - RING

CYL - HEAD O - RING
31

1700179 SPRING - REPLENISH VALVE

SPRING - REPLENISH VALVE
32

1700178 VALVE - REPLENISHING

VALVE - REPLENISHING
32

7041968 SHOCK - REAR TRACK, IFP EASY ADJ

SHOCK - REAR TRACK, IFP EASY ADJ
32

1700023 IFP

IFP
32

1700032 IFP WEAR BAND

IFP WEAR BAND
32

1700048 IFP - O - RING

IFP - O - RING
