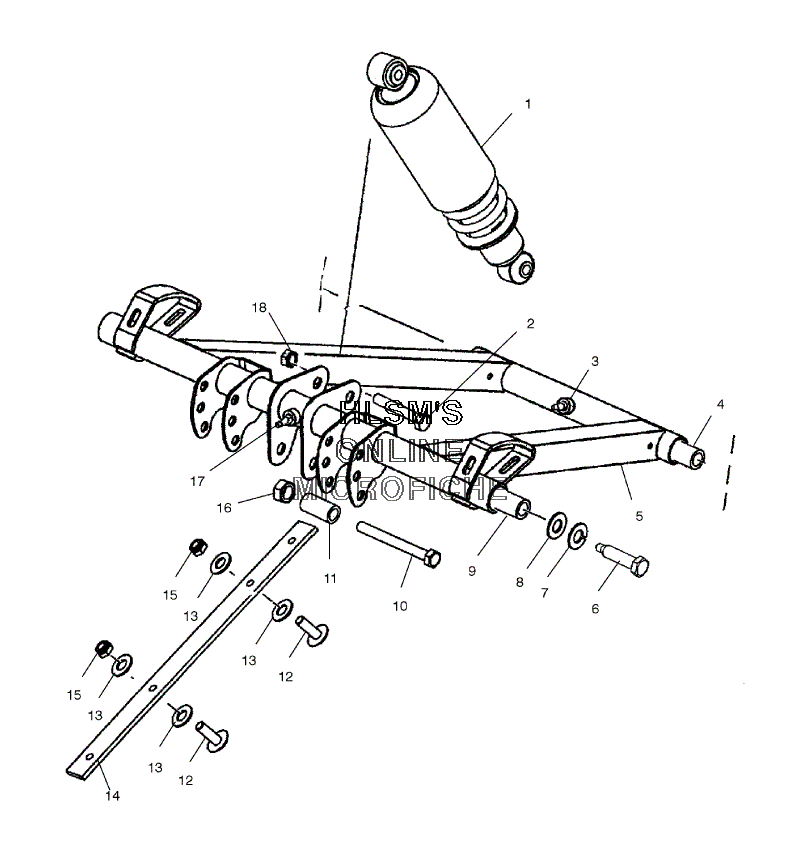

SUSPENSION - FRONT TORQUE ARM ASSEMBLY для Polaris 800 RMK 159 BUILT BEFORE 1/1/02 (S03NM8CS) - 2003 года выпуска
-
№АртикулНазвание
-
17042084 SHOCK - FRONT TRACK, IFPSHOCK - FRONT TRACK, IFP
-
15245067 RETAINER - SPRING, GAB, PLATEDRETAINER - SPRING, GAB, PLATED
-
15433503 SHIELD - SPRING, 3.00SHIELD - SPRING, 3.00
-
17042050-067 COMP - SPRING, 170#X7.5INX.343, BLCOMP - SPRING, 170#X7.5INX.343, BL
-
15630580 RETAINER, SPRING, SLOTTEDRETAINER, SPRING, SLOTTED
-
27512410 BOLTBOLT
-
37080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
45334026 SHAFT - .740X.390X8.490, ANODIZESHAFT - .740X.390X8.490, ANODIZE
-
51541613-216 WELD - FTA, EDGE, RMK (YELLOW)WELD - FTA, EDGE, RMK (YELLOW)
-
67517435 SCREWSCREW
-
77552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
87555893 WASHER, FLATWASHER, FLAT
-
95020908 SHAFTSHAFT
-
107512329 BOLTBOLT
-
115333522 BUSHINGBUSHING
-
127517313 SCREWSCREW
-
137556175 WASHERWASHER
-
145812282 STRAP - LIMITERSTRAP - LIMITER
-
157542344 NUT, NYLOKNUT, NYLOK
-
167542324 NUT, NYLOKNUT, NYLOK
-
177080510 FITTING, ZERK, 90 DEGREEFITTING, ZERK, 90 DEGREE
-
187542411 NUT, FLEXLOCNUT, FLEXLOC
