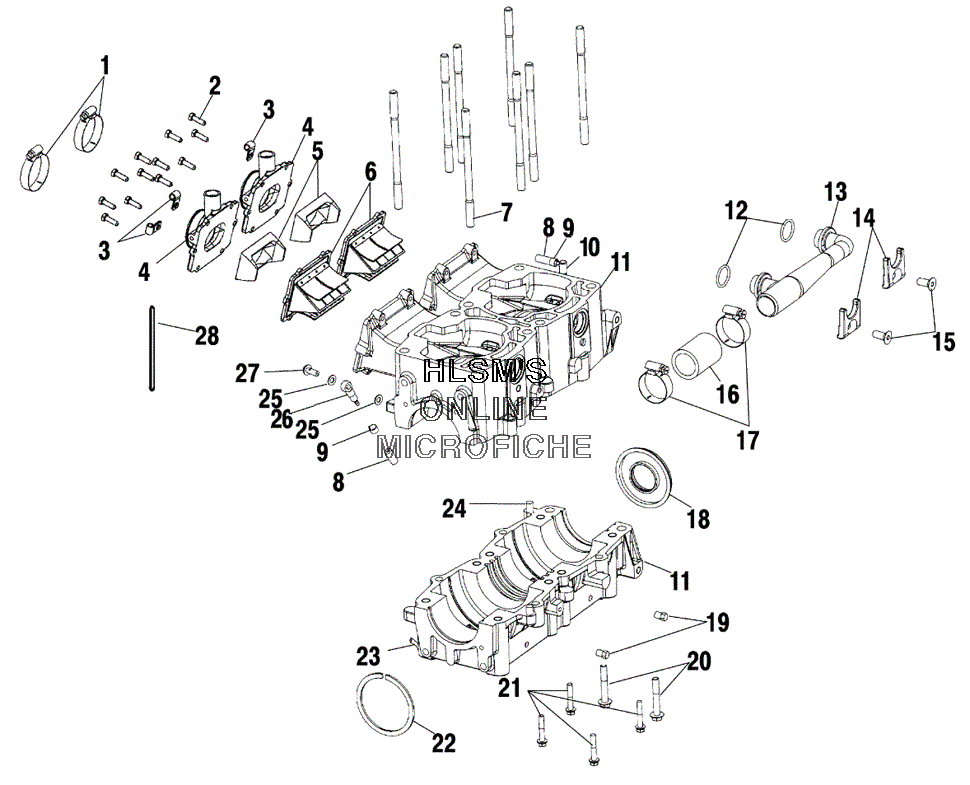

CRANKCASE ASSEMBLY для Polaris 800 RMK 159 BUILT BEFORE 1/1/02 (S03NM8CS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    7080681 CLAMP, HOSE, SS,
    CLAMP, HOSE, SS,
  • 2
    7517398 SCREW
    SCREW
  • 3
    7080683 CLAMP, HOSE
    CLAMP, HOSE
  • 4
    1253327 ADAPTER, CARBURETOR, 40MM
    ADAPTER, CARBURETOR, 40MM
  • 5
    5433151 STUFFER - REED BLOCK, NOK
    STUFFER - REED BLOCK, NOK
  • 6
    1201825 VALVE, REED, ASSY.
    VALVE, REED, ASSY.
  • 7
    5131677 STUD, CYL.FLANGE, 152MM, SPS
    STUD, CYL.FLANGE, 152MM, SPS
  • 8
    8450061-600 LINE, FUEL
    LINE, FUEL
  • 9
    7080603 CLAMP
    CLAMP
  • 10
    7051020 VALVE, CHECK, 90 DEG.
    VALVE, CHECK, 90 DEG.
  • 11
    2202336 KIT - CRANKCASE 80/70 1202353 (INCL. 7, 10, 20, 21, 23, 24)
    KIT - CRANKCASE 80/70 1202353 (INCL. 7, 10, 20, 21, 23, 24)
  • 12
    5411125 O - RING
    O - RING
  • 13
    5630610 MANIFOLD, WATER INLET
    MANIFOLD, WATER INLET
  • 14
    5243431 RETAINER - INLET WATER MANIFOLD
    RETAINER - INLET WATER MANIFOLD
  • 15
    7516736 SCREW
    SCREW
  • 16
    8450068-04 HOSE
    HOSE
  • 17
    7080560 CLAMP, HOSE S.S.
    CLAMP, HOSE S.S.
  • 18
    5411394 SEAL, FLANGED
    SEAL, FLANGED
  • 19
    7051529 PLUG
    PLUG
  • 20
    7516919 SCREW
    SCREW
  • 21
    7516732 SCREW
    SCREW
  • 22
    7710441 RING, RETAINING
    RING, RETAINING
  • 23
    7052322 FITTING
    FITTING
  • 24
    7663001 PIN, DOWEL
    PIN, DOWEL
  • 25
    7555998 WASHER, FLAT
    WASHER, FLAT
  • 26
    7052160 VALVE, CHECK
    VALVE, CHECK
  • 27
    7517319 SCREW
    SCREW
  • 28
    7080654 RETAINER, SS.
    RETAINER, SS.
