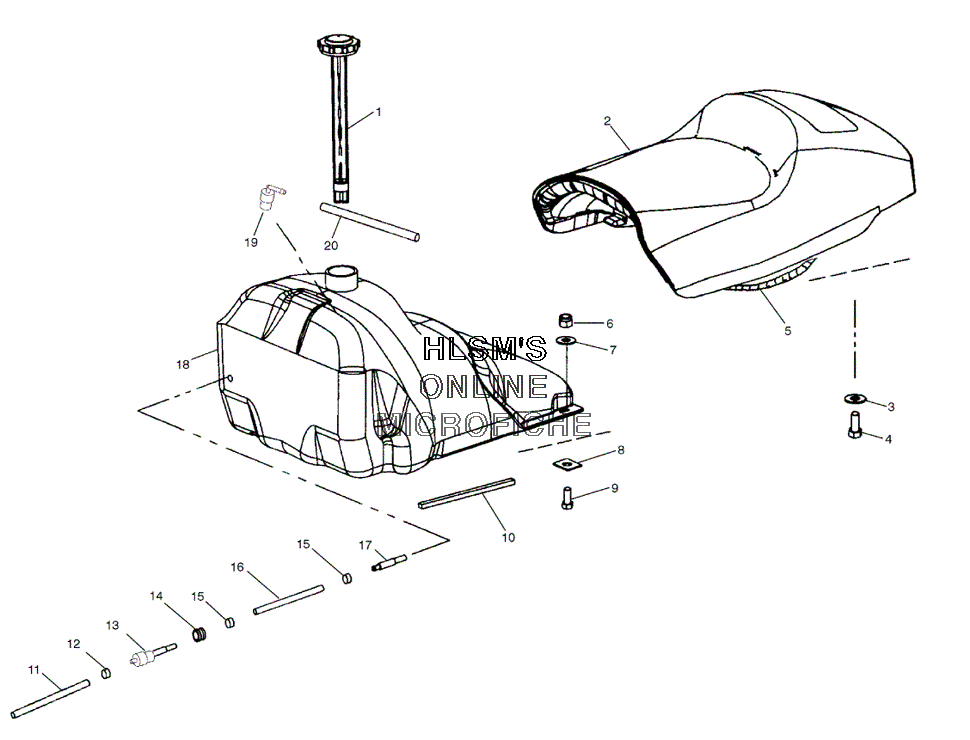

SEAT W/ GAS TANK ASSEMBLY для Polaris 800 RMK 159 BUILT BEFORE 1/1/02 (S03NM8CS) - 2003 года выпуска
-
№АртикулНазвание
-
11240066 CAP - FUEL, 12 GAL W/GAUGECAP - FUEL, 12 GAL W/GAUGE
-
22683093 ASSY. - SEAT, EDGE RMK (INCL. 2, 5)ASSY. - SEAT, EDGE RMK (INCL. 2, 5)
-
22683096 ASSY. - SEAT COVER, EDGE RMKASSY. - SEAT COVER, EDGE RMK
-
37558301 WASHER, FLATWASHER, FLAT
-
47517219 SCREWSCREW
-
52460935 HARNESS - TAILLIGHT, RMK, EDGEHARNESS - TAILLIGHT, RMK, EDGE
-
67542122 NUT - NYLOKNUT - NYLOK
-
77555960 WASHER, FLATWASHER, FLAT
-
87670021 NUT, SPEEDNUT, SPEED
-
97512193 BOLT, CARRIAGEBOLT, CARRIAGE
-
105810947 FOAM, SEALFOAM, SEAL
-
118350017-600 FUEL, LINE, ETHER, RED, 5/16"FUEL, LINE, ETHER, RED, 5/16"
-
127080003 CLAMP, HOSECLAMP, HOSE
-
137052269 FITTINGFITTING
-
145432981 GROMMETGROMMET
-
157080768 RING, COMPRESSIONRING, COMPRESSION
-
168350020-600 FUEL, LINE, ETHER, VLT, 3/8"FUEL, LINE, ETHER, VLT, 3/8"
-
177052215 PICK - UP, FUEL, W/MESHPICK - UP, FUEL, W/MESH
-
182520262 ASSY. - FUEL TANKASSY. - FUEL TANK
-
197052095 FITTINGFITTING
-
208450061-600 LINE, FUELLINE, FUEL
