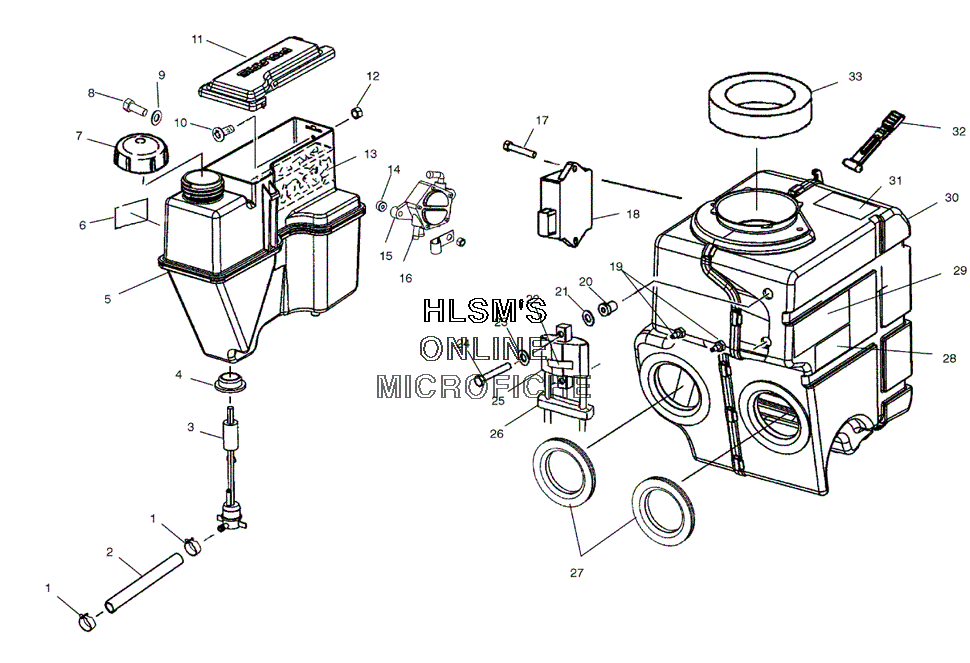

OIL TANK W/ AIR BOX ASSEMBLY для Polaris 800 RMK 159 BUILT BEFORE 1/1/02 (S03NM8CS) - 2003 года выпуска
-
№АртикулНазвание
-
17080307 CLAMP, HOSECLAMP, HOSE
-
28450003-1525 LINE, FUELLINE, FUEL
-
34010660 SENDER - OIL, W/ FRONT TERMINALSSENDER - OIL, W/ FRONT TERMINALS
-
47052305 GROMMET - OIL SENDERGROMMET - OIL SENDER
-
51253453 WELD - OIL BOTTLE/TOOL BOX W/MNTWELD - OIL BOTTLE/TOOL BOX W/MNT
-
51261199 WELD - OIL BOTTLE/TOOL BOX W/MNTWELD - OIL BOTTLE/TOOL BOX W/MNT
-
67079003 DECAL - OIL, VESDECAL - OIL, VES
-
71240094 CAP - OIL, VENTED/CUSTOM COLORCAP - OIL, VENTED/CUSTOM COLOR
-
87512163 BOLTBOLT
-
97555859 WASHER, FLATWASHER, FLAT
-
107512297 SCREWSCREW
-
115434089 COVER - TOOL BOXCOVER - TOOL BOX
-
127542122 NUT - NYLOKNUT - NYLOK
-
135812209 FOAMFOAM
-
147555932 WASHER, NYLONWASHER, NYLON
-
157081069 CLIP - JCLIP - J
-
167542122 NUT - NYLOKNUT - NYLOK
-
177512095 SCREWSCREW
-
197052127 FITTING, HOSEFITTING, HOSE
-
207547103 NUT, WELLNUT, WELL
-
217555932 WASHER, NYLONWASHER, NYLON
-
227077026 DECAL, SPARKPLUG REC.DECAL, SPARKPLUG REC.
-
237552604 WASHERWASHER
-
247517610 SCREWSCREW
-
267080471 CLIP, IGNITION CABLECLIP, IGNITION CABLE
-
275412157 BOOT - CARBURETOR, 70 DUROBOOT - CARBURETOR, 70 DURO
-
287073426 DECAL, GREASINGDECAL, GREASING
-
297073820 DECAL, ADJ.DRIVEN CLUTCHDECAL, ADJ.DRIVEN CLUTCH
-
301253479 ASSY. - AIR SILENCER, EDGE (INCL. DECALS)ASSY. - AIR SILENCER, EDGE (INCL. DECALS)
-
317075351 DECAL, CAUTIONDECAL, CAUTION
-
325433150 STRAPSTRAP
-
335811983 FOAM, CHIMNEYFOAM, CHIMNEY
