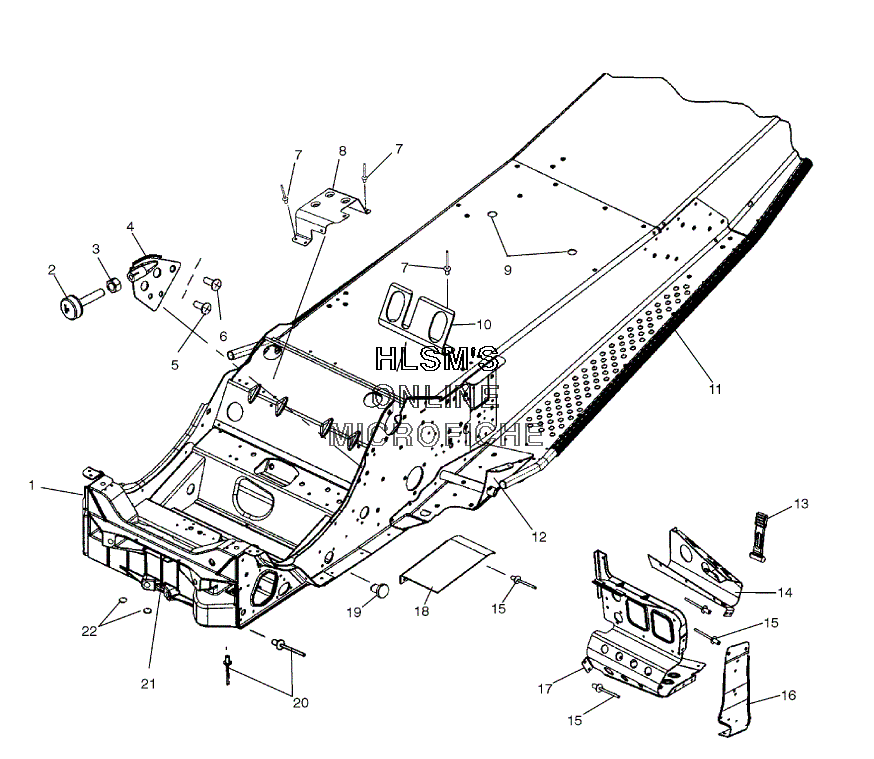

FRAME - CHASSIS для Polaris 800 RMK 159 BUILT BEFORE 1/1/02 (S03NM8CS) - 2003 года выпуска
-
№АртикулНазвание
-
11013823-309 ASSY. - CHASSIS, SCV, EDGE, 151/159NTASSY. - CHASSIS, SCV, EDGE, 151/159NT
-
23110078 STOP, TORQUESTOP, TORQUE
-
37542404 NUTNUT
-
41013377 WELD - TORQUE STOPWELD - TORQUE STOP
-
57517854 SCREWSCREW
-
67517632 SCREWSCREW
-
77621432 RIVETRIVET
-
85245927 BRACKET - OIL TANK/HOSE SUPPORTBRACKET - OIL TANK/HOSE SUPPORT
-
97080592 CAPLUG, 3/4"CAPLUG, 3/4"
-
105246177 BRACKET - AIRBOXBRACKET - AIRBOX
-
111240104 WELD - GRIPPER/DEICER (LEFT)WELD - GRIPPER/DEICER (LEFT)
-
111240105 WELD - GRIPPER/DEICER (RIGHT)WELD - GRIPPER/DEICER (RIGHT)
-
122202059 KIT - MOUNT, TRAILING ARM (LEFT)KIT - MOUNT, TRAILING ARM (LEFT)
-
122202060 KIT - MOUNT, TRAILING ARM (RIGHT)KIT - MOUNT, TRAILING ARM (RIGHT)
-
135433150 STRAPSTRAP
-
145245457 MOUNT - CONSOLE, TOE CLIP (LEFT)MOUNT - CONSOLE, TOE CLIP (LEFT)
-
145245458 MOUNT - CONSOLE, TOE CLIP (RIGHT)MOUNT - CONSOLE, TOE CLIP (RIGHT)
-
157661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
165246310 SUPPORT - FOOTREST (LEFT)SUPPORT - FOOTREST (LEFT)
-
165246311 SUPPORT - FOOTREST (RIGHT)SUPPORT - FOOTREST (RIGHT)
-
175245288 FOOTREST - (LEFT), .080FOOTREST - (LEFT), .080
-
175242740 FOOTREST - (RIGHT)FOOTREST - (RIGHT)
-
185221583 GUARD - ADAPTER DRIVEGUARD - ADAPTER DRIVE
-
197080416 PLUG, HOLEPLUG, HOLE
-
207661130 RIVETRIVET
-
215132292 BULKHEAD - FRONT, MACHBULKHEAD - FRONT, MACH
-
227081076 PLUG - HOLEPLUG - HOLE
