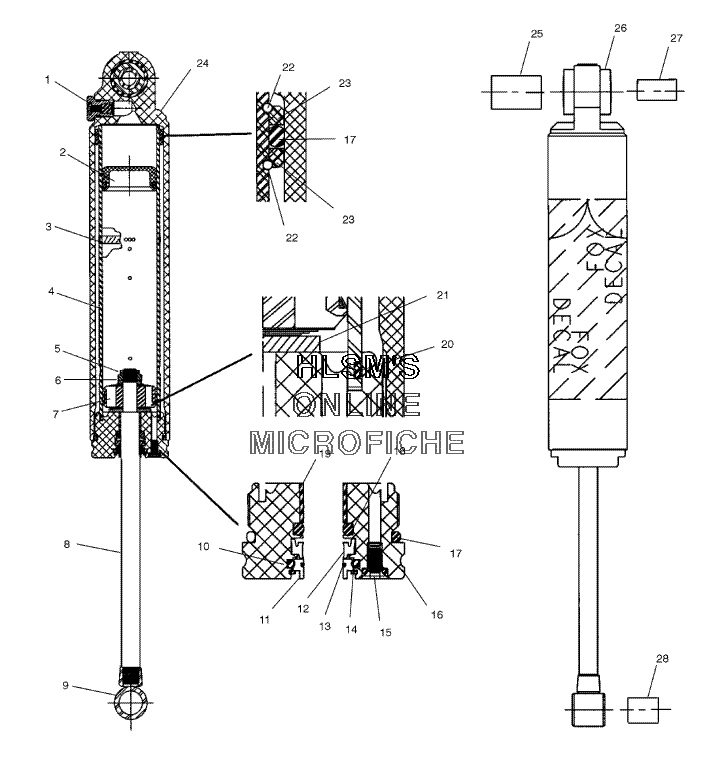

SUSPENSION - REAR для Polaris 500 XC EDGE (S03NP5AS) - 2003 года выпуска
-
№АртикулНазвание
-
11500295 SCREWSCREW
-
11500022 O-RING, DRUM OUTERO-RING, DRUM OUTER
-
21500481 FLOATING PISTON ASSY.FLOATING PISTON ASSY.
-
21500006 BEARING, EXTERNALBEARING, EXTERNAL
-
21500003 O-RING, ENDCAPO-RING, ENDCAP
-
31500306 VALVE, CHECK, NBR DURO A 90VALVE, CHECK, NBR DURO A 90
-
41500331 BODY, ASM, INNER P.S.BODY, ASM, INNER P.S.
-
51500016 NUT, LOCKNUT, LOCK
-
61500015 PLATE, BACKUPPLATE, BACKUP
-
71500489 PISTON-.063 BLEEDPISTON-.063 BLEED
-
71500002 BEARING, PISTONBEARING, PISTON
-
81500487 SHAFT-.5X8.41 TLGSHAFT-.5X8.41 TLG
-
91500302 EYELETEYELET
-
101500483 O-RING, .103X.73IDO-RING, .103X.73ID
-
111500485 SCRAPER-FIST, BRONZESCRAPER-FIST, BRONZE
-
121500266 U-CUP-4300 URETH, 036-01-006U-CUP-4300 URETH, 036-01-006
-
131500484 O-RING 14MM IDX1 MMO-RING 14MM IDX1 MM
-
141500486 RING-SNAP, INTERNALRING-SNAP, INTERNAL
-
151500295 SCREWSCREW
-
151500022 O-RING, DRUM OUTERO-RING, DRUM OUTER
-
161500482 BEARING ASSY., FIST (INCL. 10-15, 17-19)BEARING ASSY., FIST (INCL. 10-15, 17-19)
-
171500228 O-RINGO-RING
-
181500127 O-RINGO-RING
-
191500488 BEARING-.5 IDX.5 TLGBEARING-.5 IDX.5 TLG
-
201500459 O-RINGO-RING
-
211500017 PLATE, TOP OUTPLATE, TOP OUT
-
221500097 RING-RETAINING, WIRERING-RETAINING, WIRE
-
231500336 COLLAR, ALUMINUMCOLLAR, ALUMINUM
-
241500480 BODY ASSY., PPS3 (INCL. 1)BODY ASSY., PPS3 (INCL. 1)
-
251500311 SLEEVE, .56X.81X1.28SLEEVE, .56X.81X1.28
-
261500307 BUSHING, .35ILG, .63TLGBUSHING, .35ILG, .63TLG
-
275333907 SLEEVE, .385X.560X1.30SLEEVE, .385X.560X1.30
-
285010422 BUSHINGBUSHING
-
287042129 SHOCK-R/T, ALUM, PPSSHOCK-R/T, ALUM, PPS
