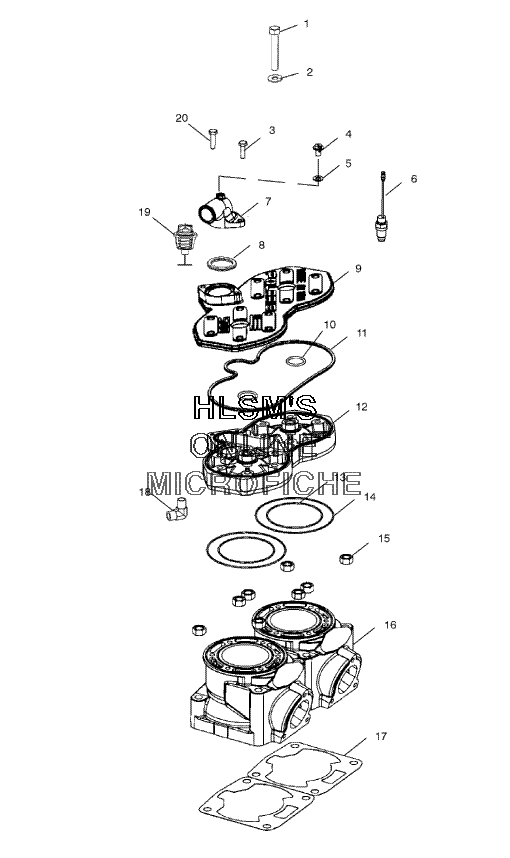

CYLINDER ASSEMBLY для Polaris 500 XC EDGE (S03NP5AS) - 2003 года выпуска
-
№АртикулНазвание
-
17517281 SCREWSCREW
-
27556082 WASHERWASHER
-
37516822 SCREWSCREW
-
47517679 SCREWSCREW
-
57555998 WASHER, FLATWASHER, FLAT
-
64110254 SENSOR, TEMP, 93 DEG.C.SENSOR, TEMP, 93 DEG.C.
-
75630992 COVER-THERMOSTAT M6 BLEED MACHCOVER-THERMOSTAT M6 BLEED MACH
-
85411521 O-RING, LIPSEALO-RING, LIPSEAL
-
95631198-329 COVER, HEAD 70.5 500 BLK E-COATCOVER, HEAD 70.5 500 BLK E-COAT
-
105411411 O-RINGO-RING
-
115411465 SEALSEAL
-
123021317 HEAD-CYL 70.5 TWN SNO 3/8W/OMAHEAD-CYL 70.5 TWN SNO 3/8W/OMA
-
135411199 O-RINGO-RING
-
145411359 O-RINGO-RING
-
157547013 NUTNUT
-
163021135 CYLINDER, 70.5MM, SNO, IRONCYLINDER, 70.5MM, SNO, IRON
-
175811916 GASKET-CYLINDER BASEGASKET-CYLINDER BASE
-
187052221 FITTINGFITTING
-
197052267 THERMOSTAT-50C TBYS SS STEMTHERMOSTAT-50C TBYS SS STEM
-
207516818 SCREWSCREW
