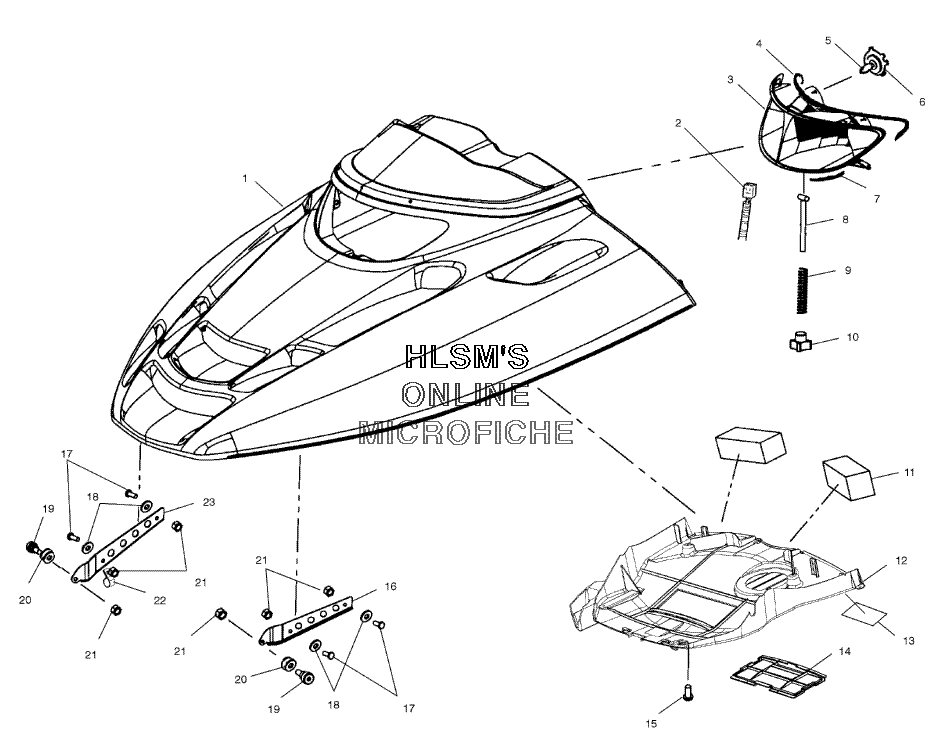

HOOD ASSEMBLY W/ HEADLIGHT для Polaris 500 XC EDGE (S03NP5AS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    2632521-293 HOOD ASSY., 2H, SVC, RED
    HOOD ASSY., 2H, SVC, RED
  • 2
    2461015 HARNESS-HEADLIGHT, E/R
    HARNESS-HEADLIGHT, E/R
  • 3
    2410132 HEADLAMP ASSY., 2-BULB (INCL. BULBS)
    HEADLAMP ASSY., 2-BULB (INCL. BULBS)
  • 4
    5812175 SEAL-HEADLIGHT,ONE PIECE
    SEAL-HEADLIGHT,ONE PIECE
  • 5
    2870448 BULB, QUARTZ.H/L H4, 60/55W
    BULB, QUARTZ.H/L H4, 60/55W
  • 6
    4032063 RETAINER, H/L BULB
    RETAINER, H/L BULB
  • 7
    5812174 SEAL-HEADLIGHT,ONE PIECE
    SEAL-HEADLIGHT,ONE PIECE
  • 8
    7517872 BOLT-TEE ADJUSTER, 2.25
    BOLT-TEE ADJUSTER, 2.25
  • 9
    7041954 SPRING-HEADLIGHT ADJUST
    SPRING-HEADLIGHT ADJUST
  • 10
    7080887 KNOB, HEADLIGHT, ADJUST, LOCKINGB
    KNOB, HEADLIGHT, ADJUST, LOCKINGB
  • 11
    5811793 FOAM, PREFILTER
    FOAM, PREFILTER
  • 12
    2632491 PLENUM ASSY., FOIL
    PLENUM ASSY., FOIL
  • 12
    5812324 FOIL
    FOIL
  • 12
    5811948 FOIL-4.5X1.0
    FOIL-4.5X1.0
  • 13
    7170740 DECAL-SUSP., SET-UP, EDGE
    DECAL-SUSP., SET-UP, EDGE
  • 14
    5433660 COVER, HEADLIGHT ACCESS
    COVER, HEADLIGHT ACCESS
  • 15
    7512068 SCREW
    SCREW
  • 16
    5243567-067 HINGE-UPPER, BLK, (LEFT)
    HINGE-UPPER, BLK, (LEFT)
  • 17
    7512240 BOLT
    BOLT
  • 18
    7558301 WASHER, FLAT
    WASHER, FLAT
  • 19
    7512113 BOLT
    BOLT
  • 20
    5332403 SPACER
    SPACER
  • 21
    7542122 NUT-NYLOK
    NUT-NYLOK
  • 22
    7080367 CLAMP, CABLE
    CLAMP, CABLE
  • 23
    5243568-067 HINGE-UPPER, BLK, (RIGHT)
    HINGE-UPPER, BLK, (RIGHT)
