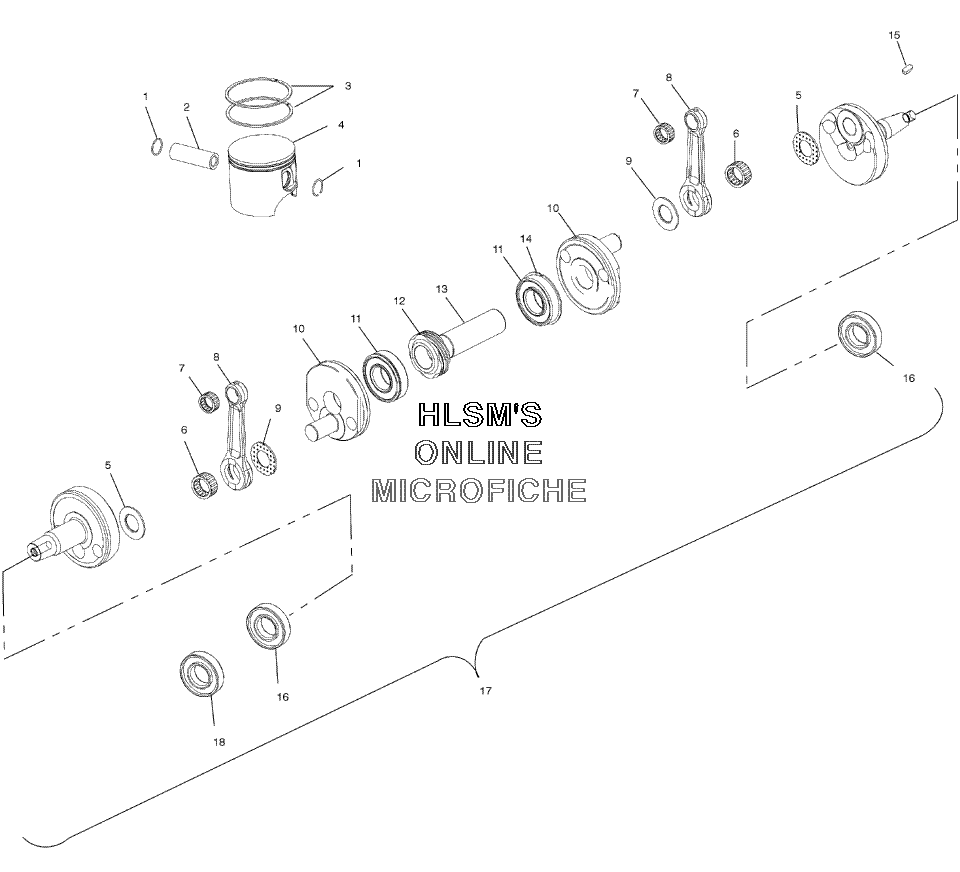

PISTON AND CRANKSHAFT для Polaris 500 XC EDGE (S03NP5AS) - 2003 года выпуска
-
№АртикулНазвание
-
13022950 CIRCLIP, PISTON, 20MM., (2)CIRCLIP, PISTON, 20MM., (2)
-
23022961 PIN, PISTONPIN, PISTON
-
32201196 PISTON RINGS KIT, 70.5MM. (STANDARD)PISTON RINGS KIT, 70.5MM. (STANDARD)
-
32201198 PISTON RINGS KIT (.25MM O/S) (.25MM/.010 O/S)PISTON RINGS KIT (.25MM O/S) (.25MM/.010 O/S)
-
32201193 PISTON RINGS KIT (.50MM O/S) (.50MM/.020 O/S)PISTON RINGS KIT (.50MM O/S) (.50MM/.020 O/S)
-
42202317 PISTON KIT 70.5 GRAFAL IRON (INCL. 1-3)PISTON KIT 70.5 GRAFAL IRON (INCL. 1-3)
-
42202355 PISTON KIT 70.5 +.25OS GRAFAL (.25MM/.010 O/S)PISTON KIT 70.5 +.25OS GRAFAL (.25MM/.010 O/S)
-
42202356 PISTON KIT 70.5 +.50OS GRAFAL (.50MM/.020 O/S)PISTON KIT 70.5 +.50OS GRAFAL (.50MM/.020 O/S)
-
73552108 BEARING 17-20X25X23, PNPIN, KOYOBEARING 17-20X25X23, PNPIN, KOYO
-
82201132 CONNECT ROD ASSY. (INCL. 5, 6, 8, 9, 10)CONNECT ROD ASSY. (INCL. 5, 6, 8, 9, 10)
-
113514363 BEARING-BALL, 35X72X20, SL, KOYOBEARING-BALL, 35X72X20, SL, KOYO
-
125131373 GEAR, PUMP DRIVEGEAR, PUMP DRIVE
-
135131353 SHAFT, CRANK, PUMPDRIVESHAFT, CRANK, PUMPDRIVE
-
147710447 RING, SNAPRING, SNAP
-
157721117 KEY, WOODRUFFKEY, WOODRUFF
-
163585503 BEARING, BALLBEARING, BALL
-
172202257 CRANKSHAFT KIT 2@64X128 (INCL. 5, 6, 8-14, 16, 18)CRANKSHAFT KIT 2@64X128 (INCL. 5, 6, 8-14, 16, 18)
-
183514310 BEARING, BALL, EXTRACEBEARING, BALL, EXTRACE
