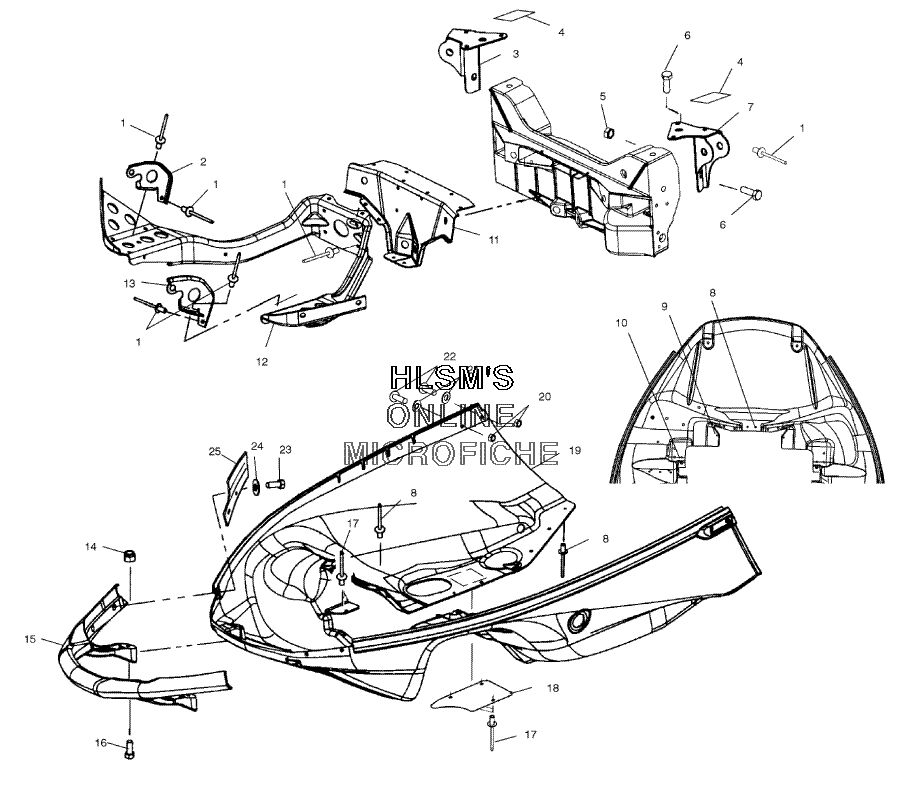

NOSEPAN ASSEMBLY #2 для Polaris 500 XC EDGE (S03NP5AS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    7661637 RIVET, INTERLOCK, Z
    RIVET, INTERLOCK, Z
  • 2
    5243992-067 HINGE-LOWER PIVOT, BLK, (RIGHT)
    HINGE-LOWER PIVOT, BLK, (RIGHT)
  • 3
    5243978 MNT, UPPER SHOCK, BLKHD, (RIGHT)
    MNT, UPPER SHOCK, BLKHD, (RIGHT)
  • 4
    5810947 FOAM, SEAL
    FOAM, SEAL
  • 5
    7547180 NUT-FLANGED, 3/8-16 NYLON-Z
    NUT-FLANGED, 3/8-16 NYLON-Z
  • 6
    7517935 SCREW
    SCREW
  • 7
    5243977 MOUNT-UPPER SHOCK, BLKHD, (LEFT)
    MOUNT-UPPER SHOCK, BLKHD, (LEFT)
  • 8
    7621467 RIVET, BLIND
    RIVET, BLIND
  • 9
    7621431 RIVET
    RIVET
  • 10
    7661136 RIVET
    RIVET
  • 11
    5244049-067 BRACKET, RAD.ROD SUPPORT, BLK
    BRACKET, RAD.ROD SUPPORT, BLK
  • 12
    5244050 BRACE, PAN LOWER
    BRACE, PAN LOWER
  • 13
    5243991-067 HINGE-LOWER PIVOT, (LEFT), BLK
    HINGE-LOWER PIVOT, (LEFT), BLK
  • 14
    7542153 NUT, NYLOK, FLANGED
    NUT, NYLOK, FLANGED
  • 15
    5433518-070 FRONT BUMPER ASSY. (BLACK)
    FRONT BUMPER ASSY. (BLACK)
  • 16
    7512163 BOLT
    BOLT
  • 17
    7621472 RIVET
    RIVET
  • 18
    5245853 SHIELD, HEAT, EXTENDED
    SHIELD, HEAT, EXTENDED
  • 19
    5434343-070 NOSEPAN-GAS ASSIST, BLK
    NOSEPAN-GAS ASSIST, BLK
  • 20
    7542122 NUT-NYLOK
    NUT-NYLOK
  • 21
    7555827 WASHER
    WASHER
  • 22
    7515166 SCREW
    SCREW
  • 23
    7517312 SCREW
    SCREW
  • 24
    7552801 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 25
    5244888 GUIDE-HOOD, (LEFT)
    GUIDE-HOOD, (LEFT)
  • 25
    5244889 GUIDE-HOOD, (RIGHT)
    GUIDE-HOOD, (RIGHT)
