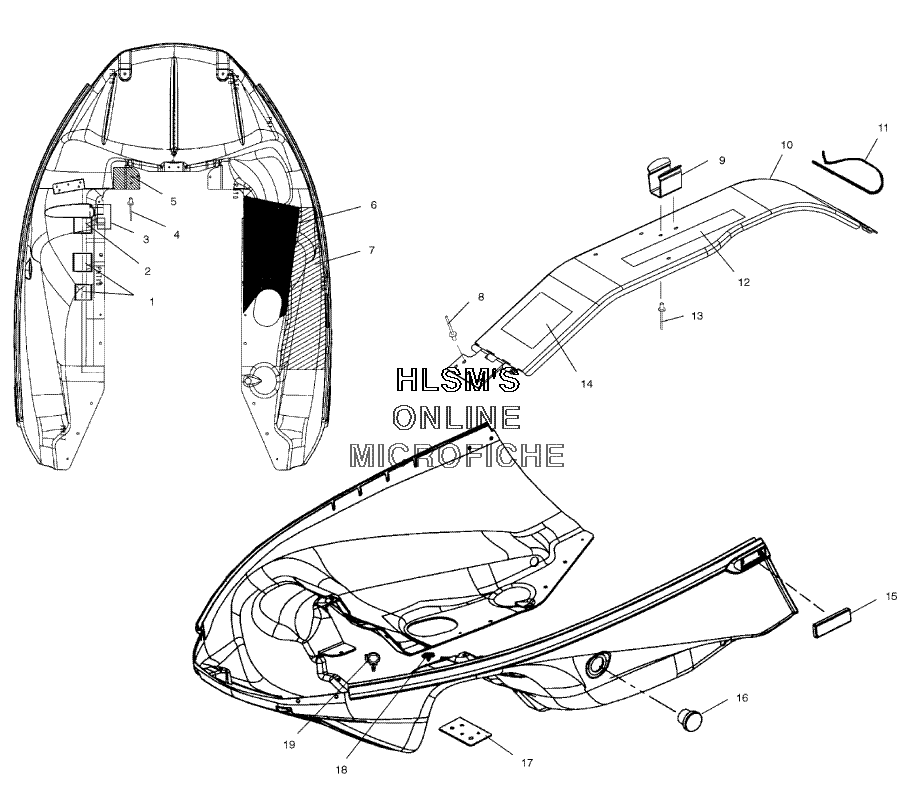

NOSEPAN ASSEMBLY #1 для Polaris 500 XC EDGE (S03NP5AS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    7670130 SPD-CLIP-"U" TYPE(C-53791-014)
    SPD-CLIP-"U" TYPE(C-53791-014)
  • 2
    7080963 RETAINER-"J"CLP
    RETAINER-"J"CLP
  • 2
    7621462 RIVET
    RIVET
  • 3
    5811948 FOIL-4.5X1.0
    FOIL-4.5X1.0
  • 4
    7621462 RIVET
    RIVET
  • 5
    5812020 FOIL, TAPE
    FOIL, TAPE
  • 6
    5812019 FOIL, TAPE, LWR, (RIGHT)
    FOIL, TAPE, LWR, (RIGHT)
  • 7
    5812018 FOIL, TAPE, UPPER, (RIGHT)
    FOIL, TAPE, UPPER, (RIGHT)
  • 8
    7621402 RIVET, POP
    RIVET, POP
  • 9
    5222769 CLIP, BELT RETAINER
    CLIP, BELT RETAINER
  • 10
    1013069 CLUTCH GUARD ASSY.
    CLUTCH GUARD ASSY.
  • 11
    7080698 PIN, CLUTCH GUARD
    PIN, CLUTCH GUARD
  • 12
    7075350 DECAL, ENGINE AND CLUTCH(CPSC)
    DECAL, ENGINE AND CLUTCH(CPSC)
  • 13
    7621429 RIVET
    RIVET
  • 14
    7170046 DECAL-TRBL SHOOT, PPS
    DECAL-TRBL SHOOT, PPS
  • 15
    2670134 AMBER REFLECTOR ASSY.
    AMBER REFLECTOR ASSY.
  • 16
    5433926 PLUG, OBLONG
    PLUG, OBLONG
  • 17
    5211722 PLATE, BACKER
    PLATE, BACKER
  • 18
    7670131 PLUG-NYLON, .322X.480
    PLUG-NYLON, .322X.480
  • 19
    4020139 CLIP, ROSEBUD
    CLIP, ROSEBUD
