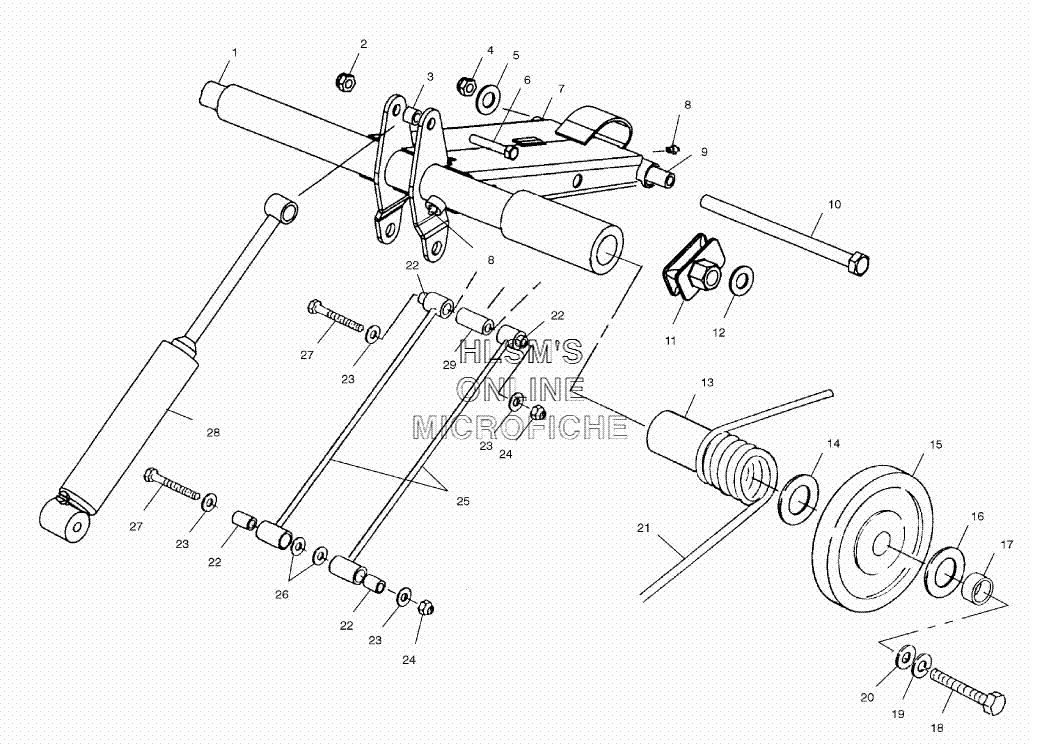

SUSPENSION - REAR TORQUE ARM ASSEMBLY для Polaris INDY 340 DELUXE (S02LD3AS) - 2002 года выпуска
-
№АртикулНазвание
-
15131996 SHAFT, MTG. (REAR)SHAFT, MTG. (REAR)
-
27542439 NUT, NYLOKNUT, NYLOK
-
35132217 BUSHINGBUSHING
-
47542319 NUT FLEX LOCNUT FLEX LOC
-
57558402 WASHER STEELWASHER STEEL
-
67515433 BOLTBOLT
-
71541373-067 TORQUE ARM (RR, BLACK)TORQUE ARM (RR, BLACK)
-
87080424 FITTING, LUBE.FITTING, LUBE.
-
95333483 TUBETUBE
-
107517757 SCREW (5/16, 24X5.00)SCREW (5/16, 24X5.00)
-
115431168 ROLLER, SPRING ADJ.ROLLER, SPRING ADJ.
-
127080394 CLIPCLIP
-
135521234 TUBE, SPRINGTUBE, SPRING
-
147555877 WASHER, THRUSTWASHER, THRUST
-
151543022 WHEEL, CARRIER, ASSY.WHEEL, CARRIER, ASSY.
-
153513504 BEARING (5/8 I.D. 1 PER WHEEL)BEARING (5/8 I.D. 1 PER WHEEL)
-
157710403 RETAINER (1 PER WHEEL)RETAINER (1 PER WHEEL)
-
167555726 WASHERWASHER
-
175332730 SPACER, CARR. WHEELSPACER, CARR. WHEEL
-
187517435 BOLTBOLT
-
197552603 WASHERWASHER
-
207555893 WASHERWASHER
-
217041521-067 SPRING, TORS. (.406X82 DEG., LEFT BLACK)SPRING, TORS. (.406X82 DEG., LEFT BLACK)
-
217041522-067 SPRING (RIGHT, TORS. .406/82)SPRING (RIGHT, TORS. .406/82)
-
217041555-067 SPRING (LEFT, TORS, .393/77DEG.)SPRING (LEFT, TORS, .393/77DEG.)
-
217041556-067 SPRING (RIGHT, TORS, .393/77DEG.)SPRING (RIGHT, TORS, .393/77DEG.)
-
217041557-067 SPRING (LEFT, TORS, .393/80DEG.)SPRING (LEFT, TORS, .393/80DEG.)
-
217041558-067 SPRING (RIGHT, TORS, .393/80DEG.)SPRING (RIGHT, TORS, .393/80DEG.)
-
225020561 BUSHING PIVOT TUBEBUSHING PIVOT TUBE
-
237555795 WASHER WAVE SPRINGWASHER WAVE SPRING
-
247542411 NUT LOCKNUT LOCK
-
251541154-067 ROD, SHOCK (X10, BLACK)ROD, SHOCK (X10, BLACK)
-
267555957 WASHERWASHER
-
277515472 BOLTBOLT
-
287041331 SHOCK, R.TORQUE ARMSHOCK, R.TORQUE ARM
-
295333420 SPACERSPACER
