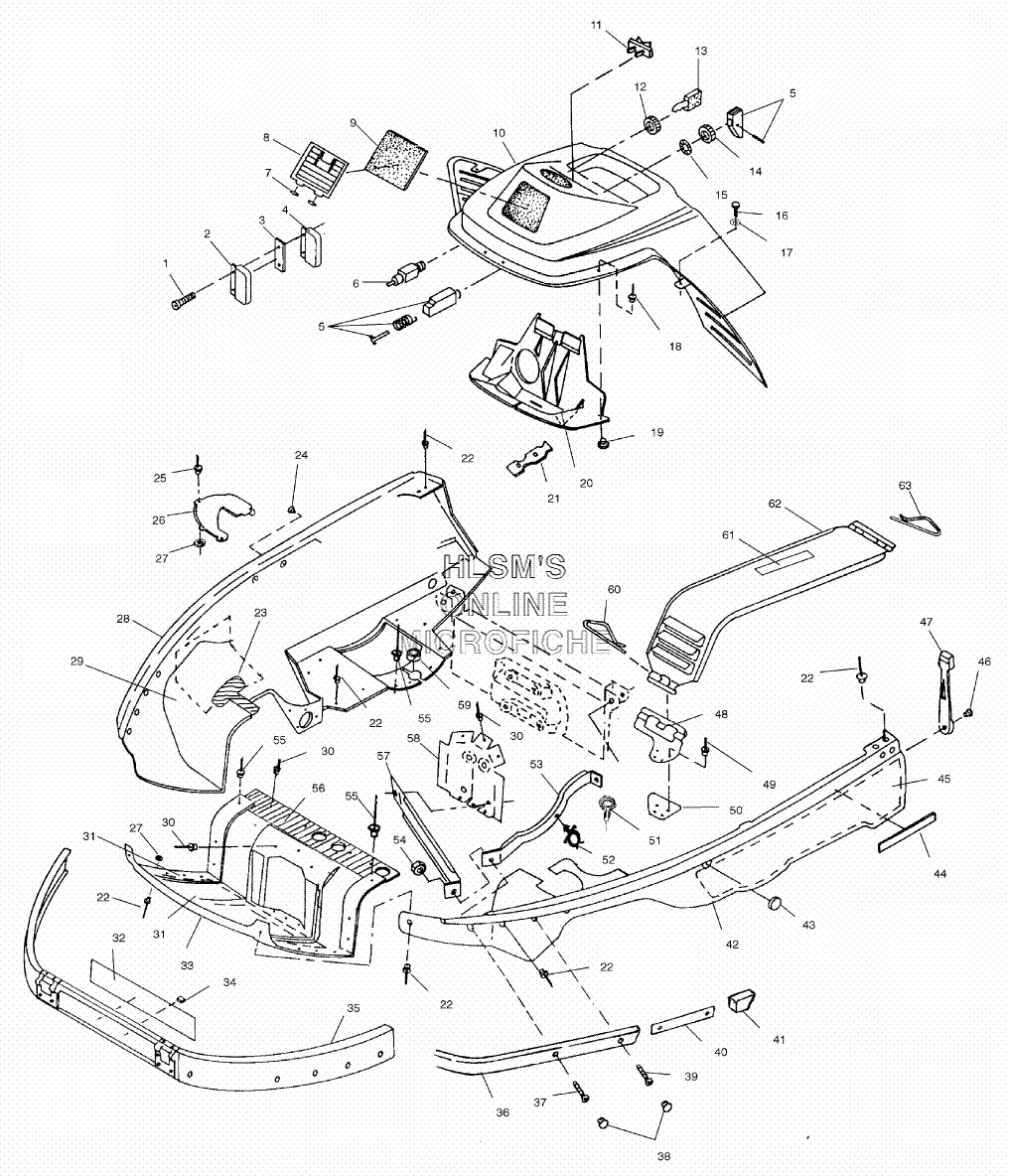

NOSEPAN AND CONSOLE ASSEMBLY для Polaris INDY 340 DELUXE (S02LD3AS) - 2002 года выпуска
-
№АртикулНазвание
-
17512018 SCREWSCREW
-
24060122 REGULATOR (14 VAC.LR, 9)REGULATOR (14 VAC.LR, 9)
-
35210650 HEAT SINKHEAT SINK
-
44060104 RECTIFIER (LR, 4)RECTIFIER (LR, 4)
-
52200188 CHOKE CONTROL KITCHOKE CONTROL KIT
-
57080661 CABLE, CHOKECABLE, CHOKE
-
64110061 SWITCH (E/S)SWITCH (E/S)
-
75410374 SEAL, O-RINGSEAL, O-RING
-
85431211-070 LOUVER, INTAKELOUVER, INTAKE
-
95810458 FOAM, INTAKEFOAM, INTAKE
-
105431636-293 COSOLE (INDY RED, DELUXE)COSOLE (INDY RED, DELUXE)
-
114110195 SWITCH, ROCKER (W/INDIC.)SWITCH, ROCKER (W/INDIC.)
-
114040014 INDICATOR, 'ACC' WARN.INDICATOR, 'ACC' WARN.
-
115430967 PLUG, INDIC.HOLEPLUG, INDIC.HOLE
-
127547034 NUT, IGNITIONNUT, IGNITION
-
135410378 KEY, IGNITIONKEY, IGNITION
-
147080229 NUTNUT
-
157571610 WASHER, LOCKWASHER, LOCK
-
167517468 BOLTBOLT
-
177558301 WASHERWASHER
-
187621336 RIVETRIVET
-
197555727 RIVET BURRRIVET BURR
-
205431214-070 CONSOLE (INNER)CONSOLE (INNER)
-
215410425 STRAP, TOOL COMPARTMENTSTRAP, TOOL COMPARTMENT
-
227621467 RIVET, BLINDRIVET, BLIND
-
235812012 FOIL, TAPE PANFOIL, TAPE PAN
-
247670067 CLIP, DARTCLIP, DART
-
257621457 RIVETRIVET
-
265431252 COVER (LEFT) SHOCKCOVER (LEFT) SHOCK
-
265431253 COVER (RIGHT) SHOCKCOVER (RIGHT) SHOCK
-
277558212 WASHERWASHER
-
285431230-293 NOSEPAN (RIGHT, INDY RED)NOSEPAN (RIGHT, INDY RED)
-
295812013 FOIL, TAPE PANFOIL, TAPE PAN
-
307621472 RIVETRIVET
-
315810475 TAPE, FOILTAPE, FOIL
-
325243631-067 SCREEN (FRONT, BLACK)SCREEN (FRONT, BLACK)
-
335431154-293 NOSEPAN (CENTER, INDY RED)NOSEPAN (CENTER, INDY RED)
-
347670040 CLIP, U TYPECLIP, U TYPE
-
352635010-067 HINGE (LOWER, BLACK)HINGE (LOWER, BLACK)
-
365224434-293 BUMPER (FRONT, INDY RED)BUMPER (FRONT, INDY RED)
-
377515102 SCREWSCREW
-
387080980 PLUG, BUTTON (TRW BLACK)PLUG, BUTTON (TRW BLACK)
-
397512164 SCREWSCREW
-
405222611-067 PLATE, BUMPERPLATE, BUMPER
-
415431250-293 CAP, BUMPER END (LEFT, RED)CAP, BUMPER END (LEFT, RED)
-
415431251-293 CAP, BUMPER END (RIGHT, RED)CAP, BUMPER END (RIGHT, RED)
-
425431229-293 NOSEPAN (LEFT, INDY RED)NOSEPAN (LEFT, INDY RED)
-
435410582 PLUG, CATCH HOLEPLUG, CATCH HOLE
-
442670071 REFLECTOR (AMBER)REFLECTOR (AMBER)
-
455811558 FOAM (LEFT) NOSEPANFOAM (LEFT) NOSEPAN
-
467621601 RIVETRIVET
-
475431501 STRAP, HOODLATCHSTRAP, HOODLATCH
-
485222332-067 SUPPORT, CLUTCH (GD, BLACK)SUPPORT, CLUTCH (GD, BLACK)
-
497621449 RIVETRIVET
-
505211249-067 PLATE, CLUTCHGUARD (BLACK)PLATE, CLUTCHGUARD (BLACK)
-
515432302 CLIP, OIL LINE RET.CLIP, OIL LINE RET.
-
524020139 CLIP, PLASTICCLIP, PLASTIC
-
535222339-067 BRACKET (LEFT) PANBRACE (BLACK)BRACKET (LEFT) PANBRACE (BLACK)
-
535222340-067 BRACKET (RIGHT) PANBRACE (BLACK)BRACKET (RIGHT) PANBRACE (BLACK)
-
547542122 NUT, LOCKNUT, LOCK
-
557621479 RIVETRIVET
-
565812014 FOIL, TAPE PANFOIL, TAPE PAN
-
575222345-067 BRACKET (LEFT) BUMP.BRACE (BLACK)BRACKET (LEFT) BUMP.BRACE (BLACK)
-
575222346-067 BRACKET (RIGHT) BUMP.BRACE (BLACK)BRACKET (RIGHT) BUMP.BRACE (BLACK)
-
585222356-067 BRACKET, SUPPORT (BLACK)BRACKET, SUPPORT (BLACK)
-
595811078 SHIELD, NOSEPAN DRAIN HOLESHIELD, NOSEPAN DRAIN HOLE
-
607080216 PIN, RETAININGPIN, RETAINING
-
617075350 DECAL 97, 99 ENG/CLUTCHDECAL 97, 99 ENG/CLUTCH
-
625243761 GUARD, CLUTCHGUARD, CLUTCH
-
637080311 PIN, FRONTPIN, FRONT
