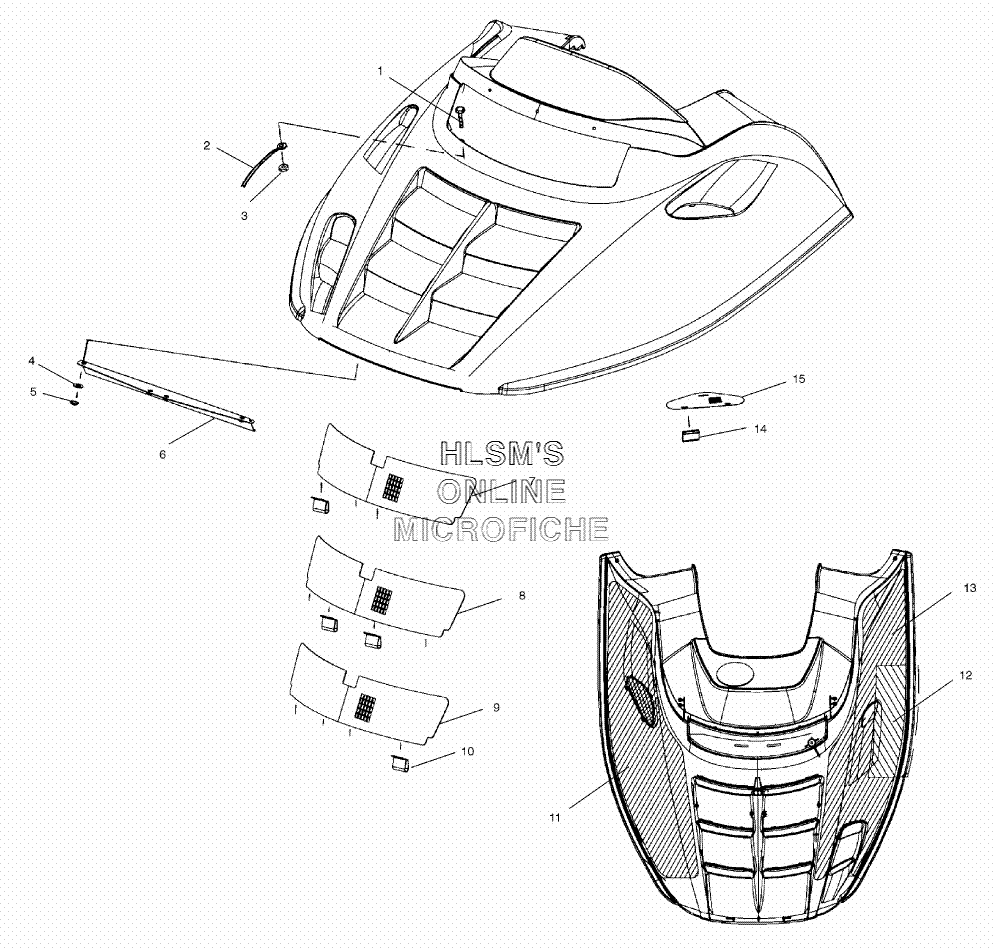

HOOD ACCESSORIES для Polaris INDY 340 DELUXE (S02LD3AS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7512103 BOLT
    BOLT
  • 2
    7080414 CABLE, HOOD RETAINER
    CABLE, HOOD RETAINER
  • 3
    7542122 NUT, LOCK
    NUT, LOCK
  • 4
    7555806 WASHER
    WASHER
  • 5
    7670017 PUSH, ON NUT
    PUSH, ON NUT
  • 6
    5243932 DEFLECTOR (AIR, LITE, 340/440)
    DEFLECTOR (AIR, LITE, 340/440)
  • 7
    5243629-067 SCREEN, HOOD (UPPER, BLACK)
    SCREEN, HOOD (UPPER, BLACK)
  • 8
    5243628-067 SCREEN, HOOD (CENTER, BLACK)
    SCREEN, HOOD (CENTER, BLACK)
  • 9
    5243627-067 SCREEN, HOOD (LOWER, BLACK)
    SCREEN, HOOD (LOWER, BLACK)
  • 10
    7670082 SPEEDCLIP, 'U' TYPE
    SPEEDCLIP, 'U' TYPE
  • 11
    5811772 FOAM, HOOD (LEFT, PSA, 1)
    FOAM, HOOD (LEFT, PSA, 1)
  • 12
    5811563 FOIL (RIGHT, HOOD, #2)
    FOIL (RIGHT, HOOD, #2)
  • 13
    5811773 FOAM, HOOD (RIGHT, PSA1)
    FOAM, HOOD (RIGHT, PSA1)
  • 14
    7670040 CLIP, U TYPE
    CLIP, U TYPE
  • 15
    5243630-067 SCREEN, HOOD (SIDE, BLACK)
    SCREEN, HOOD (SIDE, BLACK)
