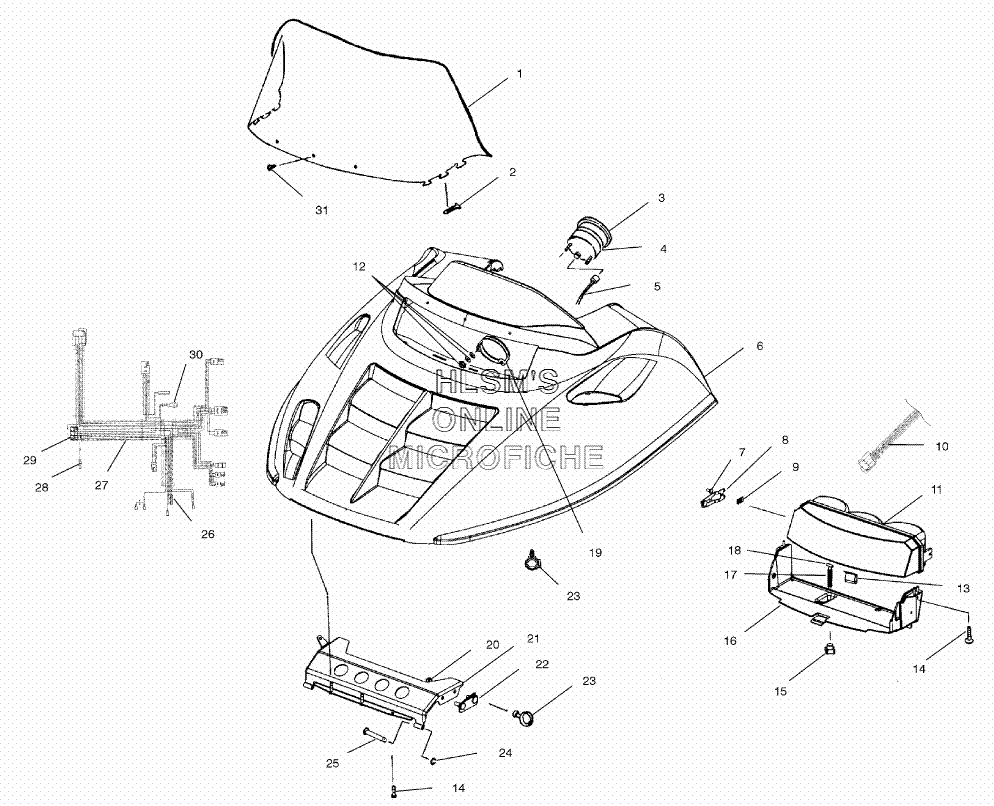

HOOD ASSEMBLY W/ WINDSHIELD AND HEADLIGHT для Polaris INDY 340 DELUXE (S02LD3AS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    5433389 WINDSHIELD (LITE, MID, SMOKE)
    WINDSHIELD (LITE, MID, SMOKE)
  • 2
    5410970 RETAINER, WINDSHIELD
    RETAINER, WINDSHIELD
  • 3
    3280328 SPEEDO (5'', 120MPH, WHITE)
    SPEEDO (5'', 120MPH, WHITE)
  • 4
    3280209 CUSHION (TACH/SPEEDO, RUBBER)
    CUSHION (TACH/SPEEDO, RUBBER)
  • 5
    3280275 CABLE, SPEEDO (45 DEG, 80 IN)
    CABLE, SPEEDO (45 DEG, 80 IN)
  • 6
    2632095-293 HOOD (340, SVC, W/O SCR, RED) (INCLUDES FOAM, FOIL, WARN. DECALS)
    HOOD (340, SVC, W/O SCR, RED) (INCLUDES FOAM, FOIL, WARN. DECALS)
  • 7
    7515107 BOLT
    BOLT
  • 8
    1011944-067 MOUNT (WELD, H/L)
    MOUNT (WELD, H/L)
  • 9
    7670057 NUT, SPEED
    NUT, SPEED
  • 10
    2460636 HARNESS, HEADLAMP, LITE
    HARNESS, HEADLAMP, LITE
  • 11
    2431008 H/L ASSY., (3, BULB)
    H/L ASSY., (3, BULB)
  • 11
    4030048 BULB, HI, BEAM
    BULB, HI, BEAM
  • 11
    2870448 BULB, QUARTZ.(H/L, INDY)
    BULB, QUARTZ.(H/L, INDY)
  • 12
    3280157 WASHER, FLAT
    WASHER, FLAT
  • 12
    3280156 WASHER, SPLIT LOCK
    WASHER, SPLIT LOCK
  • 12
    3280158 NUT
    NUT
  • 13
    7670040 CLIP, U TYPE
    CLIP, U TYPE
  • 14
    7517441 SCREW
    SCREW
  • 15
    7080887 KNOB, HEADLIGHT, ADJUST, LOCKING B
    KNOB, HEADLIGHT, ADJUST, LOCKING B
  • 16
    5432669 MOUNT (H/L, LITE)
    MOUNT (H/L, LITE)
  • 17
    7041308 SPRING (H/L.ADJ.)
    SPRING (H/L.ADJ.)
  • 18
    7517746 BOLT, TEE (ADJUSTER, 2.25)
    BOLT, TEE (ADJUSTER, 2.25)
  • 19
    3280210 BRACKET (TACH/SPEEDO, 5'')
    BRACKET (TACH/SPEEDO, 5'')
  • 20
    7542122 NUT, LOCK
    NUT, LOCK
  • 21
    5242252-067 HINGE, UPPER (BLACK)
    HINGE, UPPER (BLACK)
  • 22
    1012637 PLATE, HINGE STUD
    PLATE, HINGE STUD
  • 23
    4020149 CLIP, ROSEBUD
    CLIP, ROSEBUD
  • 24
    7710474 RING, RETAINING (EXTERNAL)
    RING, RETAINING (EXTERNAL)
  • 25
    7661647 PIN, RETAINING
    PIN, RETAINING
  • 26
    4020063 HOUSING
    HOUSING
  • 27
    2460648 HARNESS, MAIN (LITE DLX)
    HARNESS, MAIN (LITE DLX)
  • 28
    4020133 HOUSING
    HOUSING
  • 29
    4020057 HOUSING (W/RECEPTACLE)
    HOUSING (W/RECEPTACLE)
  • 30
    4020092 TERMINAL, RING
    TERMINAL, RING
  • 31
    7621509 RIVET, PLASTI, LOC.
    RIVET, PLASTI, LOC.
