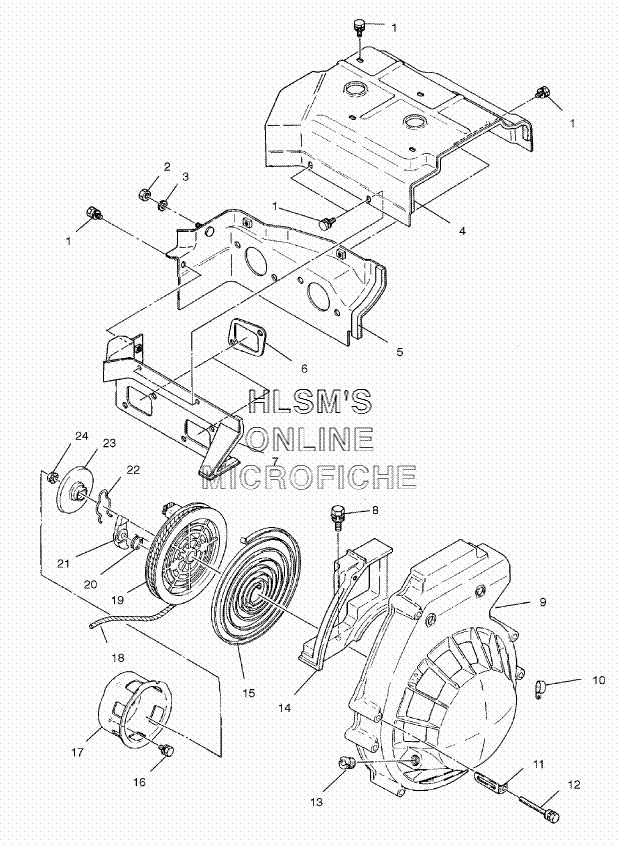

STARTER - RECOIL ASSEMBLY W/ BLOWER HOUSING для Polaris INDY 340 DELUXE (S02LD3AS) - 2002 года выпуска`
-
№АртикулНазвание
-
13083715 BOLT AND WASHER ASSY.BOLT AND WASHER ASSY.
-
23084375 NUTNUT
-
33080077 WASHER SPRINGWASHER SPRING
-
43084420 BAFFLE #1, CYL.BAFFLE #1, CYL.
-
53084421 BAFFLE #2, CYL.BAFFLE #2, CYL.
-
63085846 GASKET, INTAKEGASKET, INTAKE
-
73085847 CYLINDER, BAFFLE 3 (INCL. 6, 7)CYLINDER, BAFFLE 3 (INCL. 6, 7)
-
83081663 BOLT AND WASHERBOLT AND WASHER
-
93083588 RECOIL STARTER (INCL. 9, 13, 15, 18, 24)RECOIL STARTER (INCL. 9, 13, 15, 18, 24)
-
93083589 CASE, STARTERCASE, STARTER
-
107080367 CLAMP, CABLECLAMP, CABLE
-
113083590 CLAMPCLAMP
-
123083729 BOLT AND WASHERBOLT AND WASHER
-
133083107 GUIDE, ROPEGUIDE, ROPE
-
143083591 HOUSING, BLOWER #2HOUSING, BLOWER #2
-
153083376 SPRING, SPIRALSPRING, SPIRAL
-
163081665 BOLTBOLT
-
173083108 PULLEY, STARTINGPULLEY, STARTING
-
182870621 ROPE, (100 FT, NYL.STARTER) (BULK, CUT TO FIT)ROPE, (100 FT, NYL.STARTER) (BULK, CUT TO FIT)
-
193083377 REEL, REWINDREEL, REWIND
-
203083463 SPRING, RETURNSPRING, RETURN
-
213083378 RATCHETRATCHET
-
223083379 SPRING, FRICTIONSPRING, FRICTION
-
233083464 PLATE, FRICTIONPLATE, FRICTION
-
243083381 NUT, FLANGENUT, FLANGE
Все узлы модели:
- BATTERY BOX
- BRAKE ASSEMBLY
- CARBURETOR ASSEMBLY
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FUEL PUMP
- HOOD ACCESSORIES
- HOOD ASSEMBLY W/ WINDSHIELD AND HEADLIGHT
- NOSEPAN AND CONSOLE ASSEMBLY
- OIL PUMP ASSEMBLY
- OIL TANK W/ AIR BOX ASSEMBLY
- PISTON AND CRANKSHAFT
- RAIL ASSEMBLY W/ IDLER WHEELS
- SEAT W/ TUNNEL ASSEMBLY
- • STARTER - RECOIL ASSEMBLY W/ BLOWER HOUSING
- STARTING MOTOR
- STEERING ASSEMBLY
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - FRONT W/ SKI
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - REAR TRACK
- TOOL KIT
