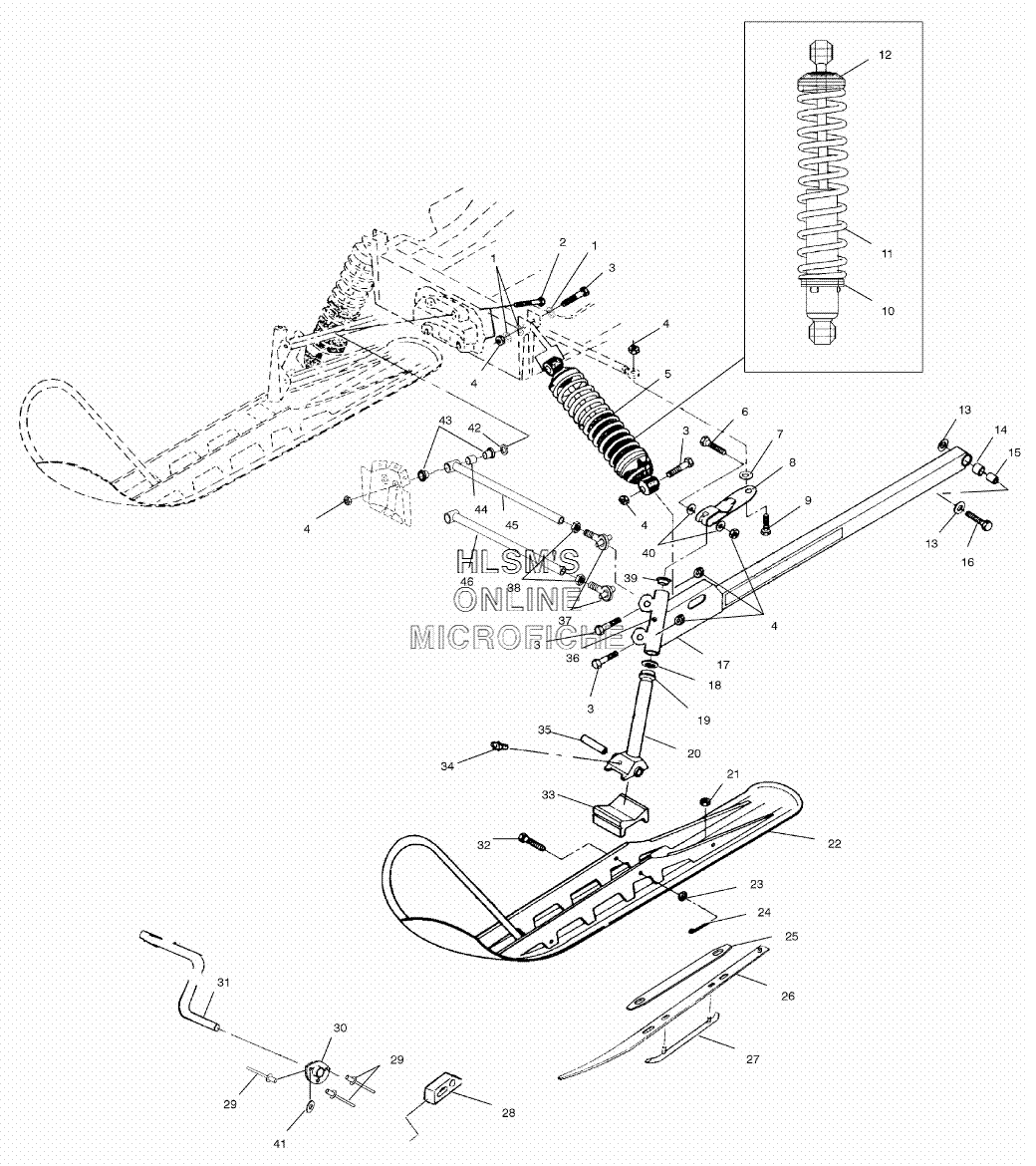

SUSPENSION - FRONT W/ SKI для Polaris INDY 340 DELUXE (S02LD3AS) - 2002 года выпуска`
-
№АртикулНазвание
-
17555806 WASHERWASHER
-
27515417 BOLTBOLT
-
37515415 BOLTBOLT
-
47542439 NUT, NYLOKNUT, NYLOK
-
57041788 SHOCK, IFS (NITREX)SHOCK, IFS (NITREX)
-
67517583 SCREW (3/8, 24X2 HX/CP GR5, Y, SP)SCREW (3/8, 24X2 HX/CP GR5, Y, SP)
-
77555976 WASHERWASHER
-
85220326-067 ARM, STEERINGARM, STEERING
-
97515528 BOLTBOLT
-
105210953 SPACER, SHOCK RETAINERSPACER, SHOCK RETAINER
-
117041261-067 SPRING, COMP. (BLACK)SPRING, COMP. (BLACK)
-
125220225 RETAINER, TOPRETAINER, TOP
-
137555721 WASHERWASHER
-
145410382 PIVOT, TRAILING ARMPIVOT, TRAILING ARM
-
155010187 TUBE, TRAILING ARMTUBE, TRAILING ARM
-
167512557 BOLTBOLT
-
171823136-067 ARM (LEFT TRLG, BLACK)ARM (LEFT TRLG, BLACK)
-
171823137-067 ARM (RIGHT TRLG, BLACK)ARM (RIGHT TRLG, BLACK)
-
187556509 WASHER SPECIALWASHER SPECIAL
-
193574208 BUSHING, SPINDLE (HSG)BUSHING, SPINDLE (HSG)
-
206230073-067 SPINDLE (BLACK)SPINDLE (BLACK)
-
217542324 NUTNUT
-
221820333-067 SKI (BLACK)SKI (BLACK)
-
237542438 NUT, CASTLENUT, CASTLE
-
247661205 PIN, COTTERPIN, COTTER
-
255245145-067 SHIM, SKAG PLATE (BLACK)SHIM, SKAG PLATE (BLACK)
-
261011829-067 PLATE, SKAGPLATE, SKAG
-
271820318-067 SKAG (BLACK)SKAG (BLACK)
-
285410384 SLIDE, SWAYBARSLIDE, SWAYBAR
-
297621477 RIVETRIVET
-
305410383 BUSHING, SWAYBARBUSHING, SWAYBAR
-
315243397-067 SWAY BAR (9/16, BLACK)SWAY BAR (9/16, BLACK)
-
327515462 BOLTBOLT
-
335521231 STOP, RUBBERSTOP, RUBBER
-
347080306 FITTING, LUBE. (W/BALL CK.)FITTING, LUBE. (W/BALL CK.)
-
355010158 BUSHING, PIVOTBUSHING, PIVOT
-
367080433 ZERK, FITTING, THREADEDZERK, FITTING, THREADED
-
377061069 ROD END (7/16, RIGHT, 1.41''WD, 3/8 BR)ROD END (7/16, RIGHT, 1.41''WD, 3/8 BR)
-
387542520 NUT JAMNUT JAM
-
393573909 BUSHING, FLANGEBUSHING, FLANGE
-
407555832 WASHERWASHER
-
417555904 BURR, RIVETBURR, RIVET
-
427555797 WASHERWASHER
-
435431486 BUSH, RAD. ROD PIVOT (OUT.)BUSH, RAD. ROD PIVOT (OUT.)
-
445010252 BUSHINGBUSHING
-
451820658-067 RADIUS ROD (UPPER, BLACK)RADIUS ROD (UPPER, BLACK)
-
461820660-067 RADIUS ROD (LOWER, BLACK)RADIUS ROD (LOWER, BLACK)
