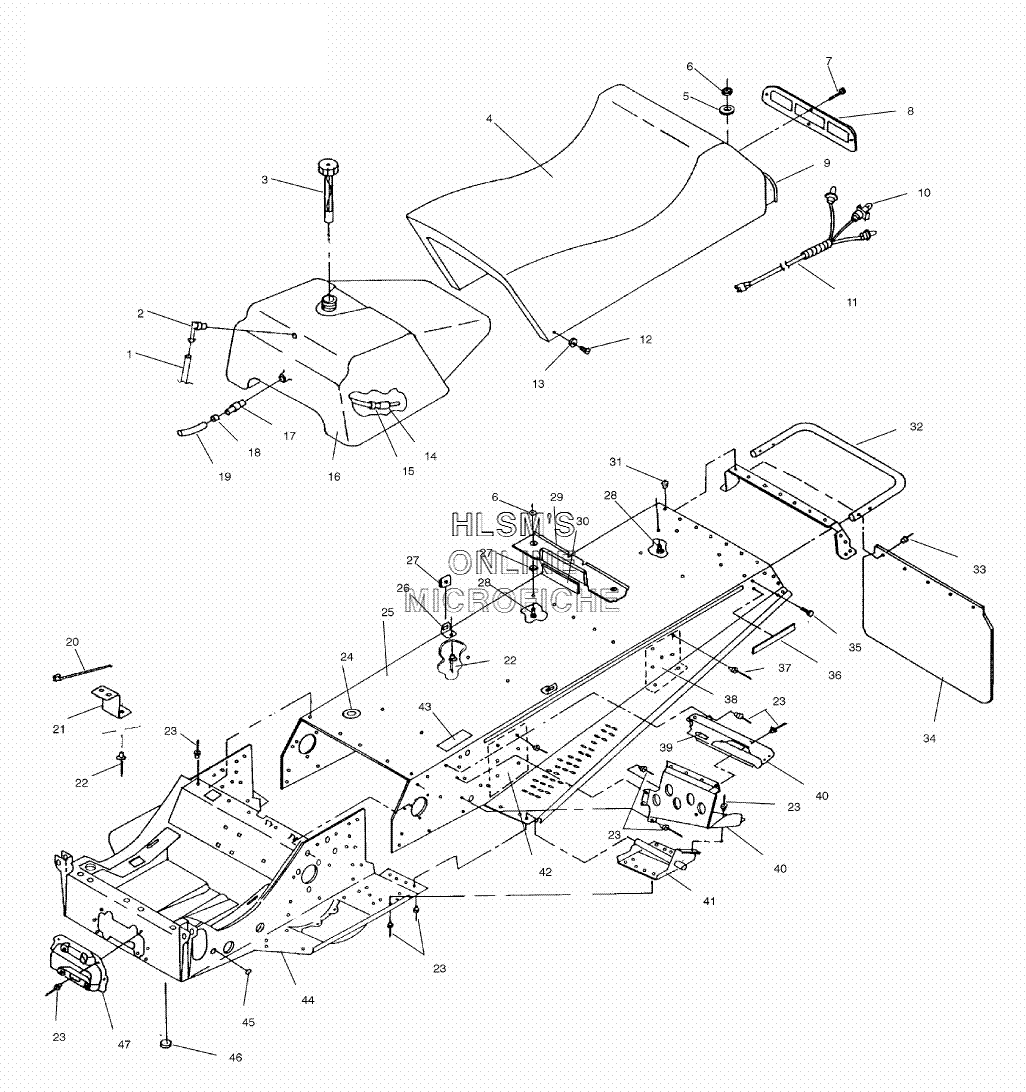

SEAT W/ TUNNEL ASSEMBLY для Polaris INDY 340 DELUXE (S02LD3AS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    8450061-600 FUELLINE (3MMX7MM)
    FUELLINE (3MMX7MM)
  • 2
    7052095 FITTING (90 DEG, 1/8)
    FITTING (90 DEG, 1/8)
  • 3
    2511245 CAP, GAS (W/GAUGE)
    CAP, GAS (W/GAUGE)
  • 4
    2682634 SEAT CUSHION ASSY. (INCL. 7, 11)
    SEAT CUSHION ASSY. (INCL. 7, 11)
  • 4
    2682635 SEAT COVER ASSY.
    SEAT COVER ASSY.
  • 5
    7558302 WASHER, WROUGHT
    WASHER, WROUGHT
  • 6
    7542122 NUT, LOCK
    NUT, LOCK
  • 7
    7511840 SCREW
    SCREW
  • 8
    5430423 LENS, TAILLIGHT
    LENS, TAILLIGHT
  • 9
    5433341 HOUSING, TAILLIGHT
    HOUSING, TAILLIGHT
  • 10
    4030045 BULB, BRAKELIGHT
    BULB, BRAKELIGHT
  • 10
    4030024 BULB, TAILLIGHT
    BULB, TAILLIGHT
  • 11
    2460399 HARNESS, TAILLIGHT
    HARNESS, TAILLIGHT
  • 12
    7515111 SCREW
    SCREW
  • 13
    7555798 WASHER
    WASHER
  • 14
    7052243 FUEL PICKUP (W/FILTER)
    FUEL PICKUP (W/FILTER)
  • 15
    7080402 RING, COMPRESSION
    RING, COMPRESSION
  • 16
    2520179 TANK, FUEL, ASSY. (INCL. 1, 2, 14, 17)
    TANK, FUEL, ASSY. (INCL. 1, 2, 14, 17)
  • 17
    7052023 FITTING , OUTLET
    FITTING , OUTLET
  • 18
    7080307 CLAMP
    CLAMP
  • 19
    8350019-160 FUEL LINE (ETHER)
    FUEL LINE (ETHER)
  • 20
    7080138 STRAP PANDUIT
    STRAP PANDUIT
  • 21
    5220520-067 BRACKET, STAND (BLACK)
    BRACKET, STAND (BLACK)
  • 22
    7621453 RIVET
    RIVET
  • 23
    7661637 RIVET, INTERLOCK, Z
    RIVET, INTERLOCK, Z
  • 24
    5410021 GROMMET RUBBER
    GROMMET RUBBER
  • 25
    1013573 TUNNEL ASSY. (LITE, SPIERCE) (INCL. 38, 42)
    TUNNEL ASSY. (LITE, SPIERCE) (INCL. 38, 42)
  • 26
    5222452-067 BRACKET, CONSOLE/SEAT MT.
    BRACKET, CONSOLE/SEAT MT.
  • 27
    7670021 SPEED NUT
    SPEED NUT
  • 28
    7512193 BOLT
    BOLT
  • 29
    5222330-067 STRAP, GASTANK (BLACK)
    STRAP, GASTANK (BLACK)
  • 30
    5420126 CUSHION, TANK (H.D.)
    CUSHION, TANK (H.D.)
  • 31
    7661836 RIVET
    RIVET
  • 32
    5224766-067 BUMPER (REAR, XL, BLACK)
    BUMPER (REAR, XL, BLACK)
  • 33
    7621418 POP RIVET
    POP RIVET
  • 34
    5410394-1106 FLAP, SNOW (MOLDED, BLACK W/SILVER)
    FLAP, SNOW (MOLDED, BLACK W/SILVER)
  • 35
    7512252 SCREW
    SCREW
  • 36
    2670133 REFLECTOR ASSY. (RED)
    REFLECTOR ASSY. (RED)
  • 37
    7661837 RIVET
    RIVET
  • 38
    5241670-067 PAD (LEFT, R.SUSP MT, XL)
    PAD (LEFT, R.SUSP MT, XL)
  • 38
    5241671-067 PAD (RIGHT, R.SUSP.MT, XL)
    PAD (RIGHT, R.SUSP.MT, XL)
  • 39
    5521238 EXTRUSION, CLUTCHGUARD
    EXTRUSION, CLUTCHGUARD
  • 40
    1011830 FOOTREST ASSY. (LEFT)
    FOOTREST ASSY. (LEFT)
  • 40
    1011826 FOOTREST ASSY. (RIGHT) (STARLITE)
    FOOTREST ASSY. (RIGHT) (STARLITE)
  • 41
    1011792-067 SUPPORT (LEFT TRLG.ARM, BLACK)
    SUPPORT (LEFT TRLG.ARM, BLACK)
  • 41
    1011793-067 SUPPORT (RIGHT TRLG.ARM, BLACK)
    SUPPORT (RIGHT TRLG.ARM, BLACK)
  • 42
    5211705-067 PAD, FR. SUSP. MT (XL)
    PAD, FR. SUSP. MT (XL)
  • 43
    5810502 PAD, AIR BOX
    PAD, AIR BOX
  • 44
    1012587-067 BULKHEAD (BLACK)
    BULKHEAD (BLACK)
  • 45
    7080416 PLUG, HOLE
    PLUG, HOLE
  • 46
    7080399 BUSHING (OPEN/CLOSE)
    BUSHING (OPEN/CLOSE)
  • 47
    5630924 MOUNT RADIUS ROD
    MOUNT RADIUS ROD
