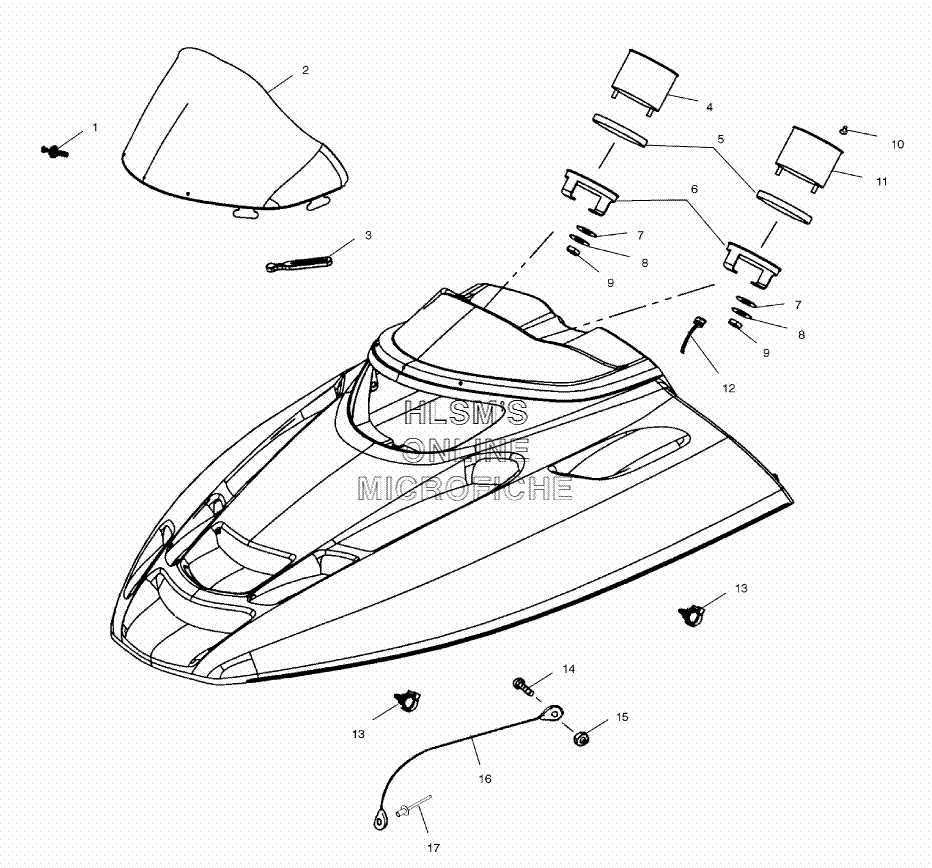

WINDSHIELD W/ GUAGES AND HOOD RETAINER для Polaris 700 RMK F/O 151 (S02NL7CS) - 2002 года выпуска`
-
№АртикулНазвание
-
17621509 RIVET, PLASTICRIVET, PLASTIC
-
25434194 WINDSHIELD, 13'' FLR, SMOKE, EDGEWINDSHIELD, 13'' FLR, SMOKE, EDGE
-
35410970 RETAINER, WINDSHIELDRETAINER, WINDSHIELD
-
43280329 TACHOMETER, 6 P, WHITE W/FUEL LTTACHOMETER, 6 P, WHITE W/FUEL LT
-
44030015 BULB, TAILLIGHT/TACHOMETER/SPEEDOMETERBULB, TAILLIGHT/TACHOMETER/SPEEDOMETER
-
53280209 CUSHION, TACHOMETER/SPEEDOMETER, RUBBERCUSHION, TACHOMETER/SPEEDOMETER, RUBBER
-
63280210 BRACKET, TACH/SPEEDO 5''BRACKET, TACH/SPEEDO 5''
-
73280157 WASHER, FLATWASHER, FLAT
-
83280156 WASHER, SPLIT LOCKWASHER, SPLIT LOCK
-
93280158 NUTNUT
-
103280186 KNOB, TRIP ODOMETER (LEFT) THD.KNOB, TRIP ODOMETER (LEFT) THD.
-
113280348 SPEEDO, 5'' 120MPH, WH. W/OANGSPEEDO, 5'' 120MPH, WH. W/OANG
-
114030015 BULB, TAILLIGHT/TACHOMETER/SPEEDOMETERBULB, TAILLIGHT/TACHOMETER/SPEEDOMETER
-
123280385 CABLE, SPEEDOMETERCABLE, SPEEDOMETER
-
134010589 CLIP, PLASTIC DART NYLONCLIP, PLASTIC DART NYLON
-
147512018 SCREWSCREW
-
157541925 NUTNUT
-
167080521 CABLE, HOOD RETAINERCABLE, HOOD RETAINER
-
177661637 RIVET, INTERLOCKRIVET, INTERLOCK
