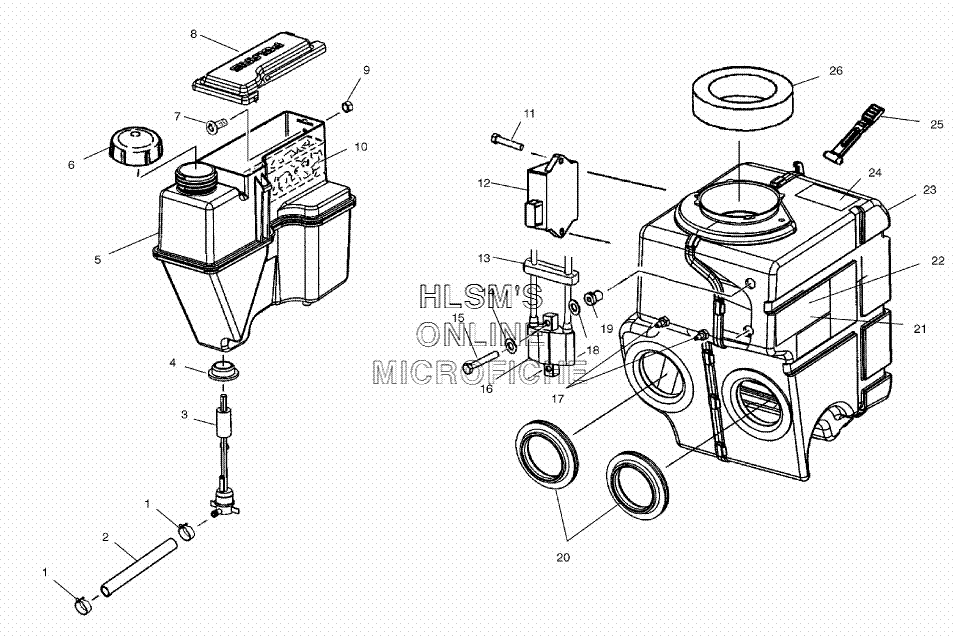

OIL TANK W/ AIR BOX ASSEMBLY для Polaris 700 RMK F/O 151 (S02NL7CS) - 2002 года выпуска
-
№АртикулНазвание
-
17080307 CLAMPCLAMP
-
28450003-1525 FUEL LINE, 1/4 ID (1525 CM.)FUEL LINE, 1/4 ID (1525 CM.)
-
34010550 FITTING, OIL SENDERFITTING, OIL SENDER
-
47052305 GROMMET, OIL SENDERGROMMET, OIL SENDER
-
51253396 OIL TANK W/SENDING UNIT ASSY.OIL TANK W/SENDING UNIT ASSY.
-
61240094 CAP, OIL, VENTED/CUSTOM COLORCAP, OIL, VENTED/CUSTOM COLOR
-
77512297 BOLTBOLT
-
85434089 COVER, TOOL BOXCOVER, TOOL BOX
-
97542122 NUT, LOCKNUT, LOCK
-
105812209 FOAM, TOOL BOXFOAM, TOOL BOX
-
117512095 SCREWSCREW
-
122201926 CDICDI
-
137080471 T-CLIPT-CLIP
-
147552604 WASHERWASHER
-
157517610 SCREWSCREW
-
164060229 COILCOIL
-
177052127 FITTING, HOSEFITTING, HOSE
-
187555932 WASHER, NYLONWASHER, NYLON
-
197547103 NUTNUT
-
205412157 BOOT, CARB. (70 DURO)BOOT, CARB. (70 DURO)
-
217073426 DECAL, GREASINGDECAL, GREASING
-
227073820 DECAL, ADJ. DRIVEN CLUTCHDECAL, ADJ. DRIVEN CLUTCH
-
231253399 AIR SILENCER ASSY., EDGE [INCL. DECALS]AIR SILENCER ASSY., EDGE [INCL. DECALS]
-
247075351 DECAL, CAUTION, AIR BOXDECAL, CAUTION, AIR BOX
-
255433150 STRAP, RUBBERSTRAP, RUBBER
-
265811983 FOAM, AIR BOX, CHIMNEY, EDGEFOAM, AIR BOX, CHIMNEY, EDGE
