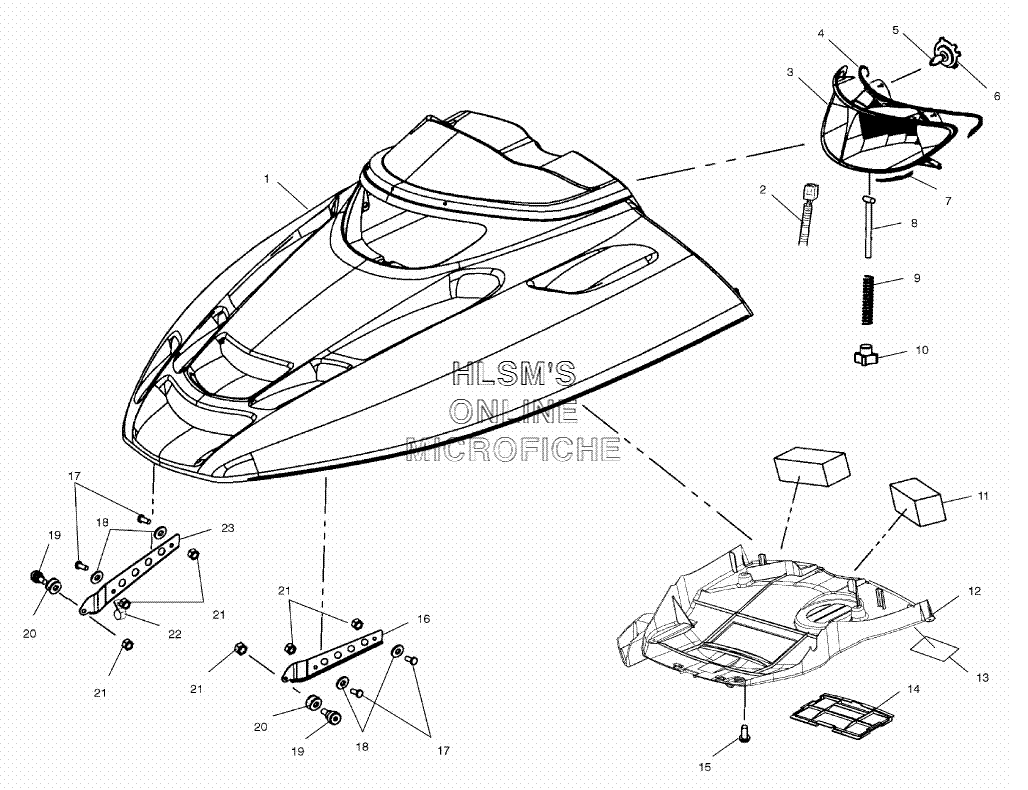

HOOD ASSEMBLY W/ HEADLIGHT для Polaris 700 RMK F/O 151 (S02NL7CS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    2632212-293 HOOD ASSY., EDGE, 2H, SVC (RED)
    HOOD ASSY., EDGE, 2H, SVC (RED)
  • 1
    2632212-177 HOOD ASSY., EDGE, 2H, SVC (BLACK)
    HOOD ASSY., EDGE, 2H, SVC (BLACK)
  • 2
    2460791 HARNESS, HEADLIGHT, EDGE, COMMON
    HARNESS, HEADLIGHT, EDGE, COMMON
  • 3
    2410132 HEADLAMP ASSY., 2-BULB EDGE [INCL. BULBS]
    HEADLAMP ASSY., 2-BULB EDGE [INCL. BULBS]
  • 4
    5812175 FOAM, HEADLIGHT SEAL EDGE, TOP
    FOAM, HEADLIGHT SEAL EDGE, TOP
  • 5
    2870448 BULB, QUARTZ.H/L, INDY
    BULB, QUARTZ.H/L, INDY
  • 6
    4032063 RETAINER, H/L BULB
    RETAINER, H/L BULB
  • 7
    5812174 FOAM, HEADLIGHT SEAL EDGE, BOT
    FOAM, HEADLIGHT SEAL EDGE, BOT
  • 8
    7517872 BOLT, TEE ADJUSTER 2.25
    BOLT, TEE ADJUSTER 2.25
  • 9
    7041954 SPRING, HEADLIGHT ADJUST
    SPRING, HEADLIGHT ADJUST
  • 10
    7080887 KNOB, HEADLIGHT ADJUST, LOCKINGB
    KNOB, HEADLIGHT ADJUST, LOCKINGB
  • 11
    5811793 FOAM, PREFILTER
    FOAM, PREFILTER
  • 12
    2632491 PLENUM FOIL ASSY.
    PLENUM FOIL ASSY.
  • 12
    5812324 FOIL, PLENUM, EDGE
    FOIL, PLENUM, EDGE
  • 12
    5811948 FOIL (4.5X1.0)
    FOIL (4.5X1.0)
  • 13
    7170040 DECAL, SUSP SET-UP, EDGE RMK
    DECAL, SUSP SET-UP, EDGE RMK
  • 14
    5433660 COVER, HEADLIGHT ACCESS
    COVER, HEADLIGHT ACCESS
  • 15
    7512068 SCREW
    SCREW
  • 16
    5243567-067 HINGE (UPPER/LEFT/BLACK)
    HINGE (UPPER/LEFT/BLACK)
  • 17
    7512240 BOLT
    BOLT
  • 18
    7558301 WASHER
    WASHER
  • 19
    7512113 SCREW
    SCREW
  • 20
    5332403 SPACER, HINGE
    SPACER, HINGE
  • 21
    7542122 NUT, LOCK
    NUT, LOCK
  • 22
    7080367 CLAMP, CABLE
    CLAMP, CABLE
  • 23
    5243568-067 HINGE (UPPER/RIGHT/BLACK)
    HINGE (UPPER/RIGHT/BLACK)
