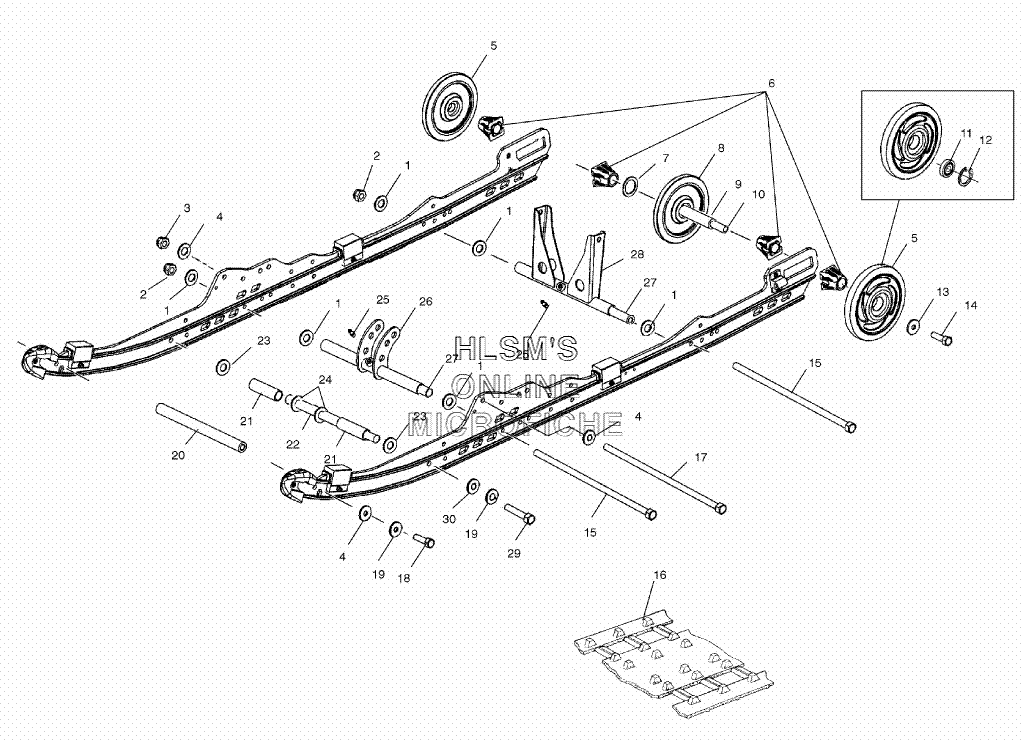

SUSPENSION - REAR TRACK для Polaris 700 RMK F/O 151 (S02NL7CS) - 2002 года выпуска
-
№АртикулНазвание
-
17556216 WASHER (.315/.325X.88X.075)WASHER (.315/.325X.88X.075)
-
27547064 NUTNUT
-
37542439 NUT, NYLOCKNUT, NYLOCK
-
47555806 WASHERWASHER
-
51590303-293 WHEEL, IDLER, HP, RED [INCL. 11, 12]WHEEL, IDLER, HP, RED [INCL. 11, 12]
-
65432535 SPACER, IDLERSPACER, IDLER
-
77555918 BUSHINGBUSHING
-
81594087 WHEEL ASSY., PLAIN (6.38 O.D.)WHEEL ASSY., PLAIN (6.38 O.D.)
-
95333285 SPACER, IDLER, LONGSPACER, IDLER, LONG
-
105020744 SHAFT, IDLERSHAFT, IDLER
-
113514384 BEARING (.7874X1.6535X.4724) NTNBEARING (.7874X1.6535X.4724) NTN
-
127710444 RING, RETAININGRING, RETAINING
-
137556130 WASHER (.406X1.25X.125)WASHER (.406X1.25X.125)
-
147517731 BOLT (3/8-16X1.25)BOLT (3/8-16X1.25)
-
157517996 SCREW (5/16-24X9.75, HWH, SP, GR8)SCREW (5/16-24X9.75, HWH, SP, GR8)
-
165411916 TRACK, 151X2'', DEEPLUG, SRS3TRACK, 151X2'', DEEPLUG, SRS3
-
177517921 SCREW (3/8-24X9.875, HX/LP, GR8)SCREW (3/8-24X9.875, HX/LP, GR8)
-
187517247 SCREWSCREW
-
197552603 WASHERWASHER
-
205020868 SHAFTSHAFT
-
215334062 SPACER, SHOCK CENTERINGSPACER, SHOCK CENTERING
-
225133188 SHAFT (.687X8.456)SHAFT (.687X8.456)
-
237555832 WASHERWASHER
-
247556210 WASHER (.719X1.250X.065)WASHER (.719X1.250X.065)
-
257080424 FITTING, LUBE.FITTING, LUBE.
-
261541635-067 WELD, SHOCK PIVOT ARM, 2.75 (BLACK)WELD, SHOCK PIVOT ARM, 2.75 (BLACK)
-
275334042 TUBE, NITRO (.334X.50X8.515, 1020)TUBE, NITRO (.334X.50X8.515, 1020)
-
281541614 ARM, PIVOT, REARARM, PIVOT, REAR
-
297517857 SCREW (3/8-24X2.00 HX/CP-GR8)SCREW (3/8-24X2.00 HX/CP-GR8)
-
307556042 WASHER, FLATWASHER, FLAT
