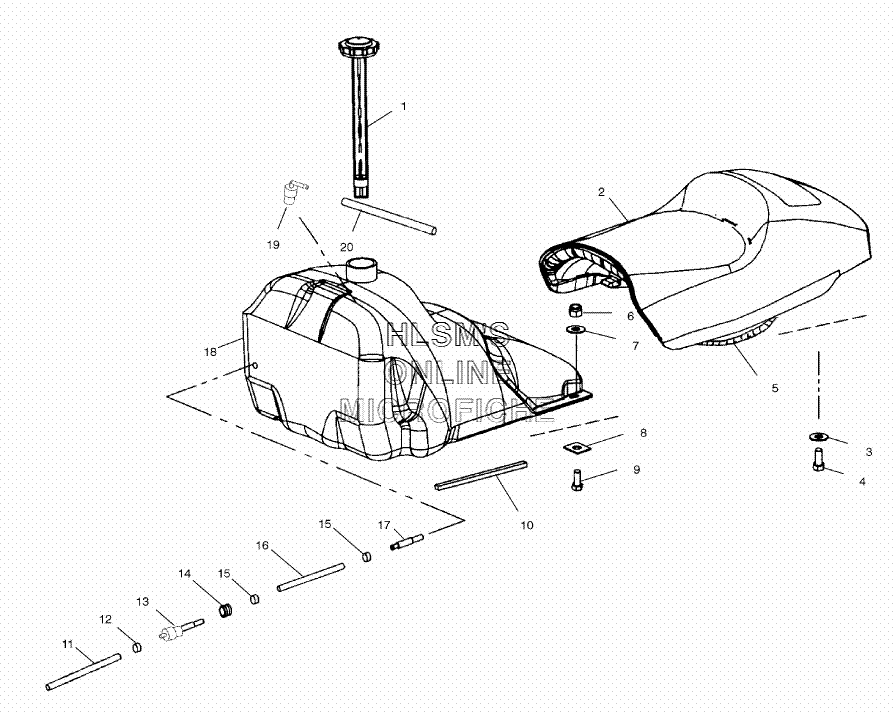

SEAT W/ GAS TANK ASSEMBLY для Polaris 700 RMK F/O 151 (S02NL7CS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    1240066 CAP, FUEL, 12.5 W/GAUGE
    CAP, FUEL, 12.5 W/GAUGE
  • 2
    2682710 SEAT ASSY., EDGE, RMK [RED] [INCL. 2, 5]
    SEAT ASSY., EDGE, RMK [RED] [INCL. 2, 5]
  • 2
    2682822 SEAT COVER ASSY., EDGE, RMK [RED]
    SEAT COVER ASSY., EDGE, RMK [RED]
  • 2
    2682827 SEAT ASSY., EDGE, RMK [BLACK] [INCL. 2, 5]
    SEAT ASSY., EDGE, RMK [BLACK] [INCL. 2, 5]
  • 2
    2682828 SEAT COVER ASSY., EDGE, RMK [BLACK]
    SEAT COVER ASSY., EDGE, RMK [BLACK]
  • 3
    7558301 WASHER
    WASHER
  • 4
    7517219 SCREW
    SCREW
  • 5
    2460935 HARNESS, TAILLIGHT, RMK, EDGE
    HARNESS, TAILLIGHT, RMK, EDGE
  • 6
    7542122 NUT, LOCK
    NUT, LOCK
  • 7
    7555960 WASHER
    WASHER
  • 8
    7670021 SPEED NUT
    SPEED NUT
  • 9
    7512193 BOLT
    BOLT
  • 10
    5810947 SEAL, FOAM, R.COOLER
    SEAL, FOAM, R.COOLER
  • 11
    8350017-600 FUEL LINE, ETHER (5/16'' RED)
    FUEL LINE, ETHER (5/16'' RED)
  • 12
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 13
    7052269 FITTING, STRAIGHT (5/16''/ 3/8)
    FITTING, STRAIGHT (5/16''/ 3/8)
  • 14
    5432981 GROMMET
    GROMMET
  • 15
    7080768 RING, COMPRESSION
    RING, COMPRESSION
  • 16
    8350020-600 FUEL LINE, ETHER, VLT (3/8'')
    FUEL LINE, ETHER, VLT (3/8'')
  • 17
    7052215 PICK-UP, FUEL, W/MESH
    PICK-UP, FUEL, W/MESH
  • 18
    2520262 FUEL TANK ASSY., EDGE
    FUEL TANK ASSY., EDGE
  • 19
    7052095 FITTING (90 DEG 1/8)
    FITTING (90 DEG 1/8)
  • 20
    8450061-600 FUELLINE (3MMX7MM)
    FUELLINE (3MMX7MM)
