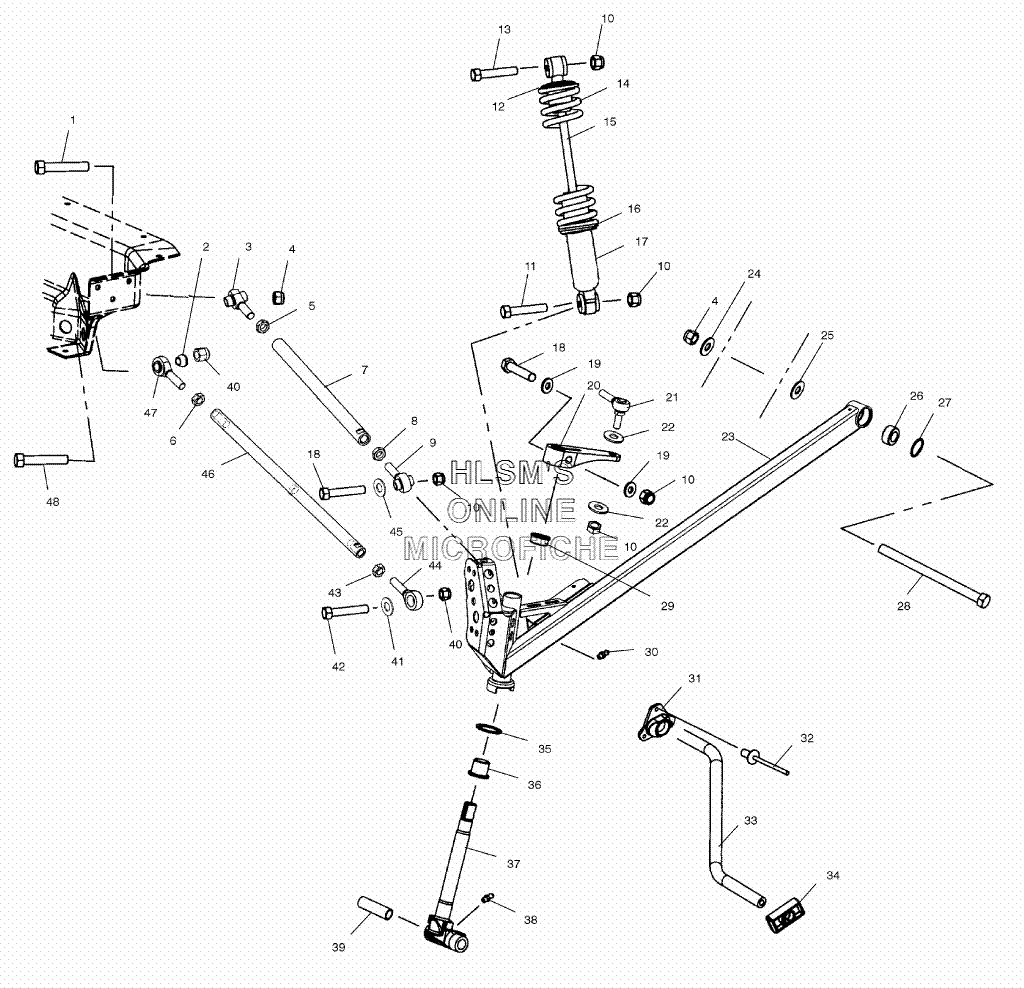

SUSPENSION - FRONT для Polaris 700 RMK F/O 151 (S02NL7CS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7517980 BOLT (7/16-20X3.00, HXCAP, GR5)
    BOLT (7/16-20X3.00, HXCAP, GR5)
  • 2
    5132454 BUSHING, SPACER
    BUSHING, SPACER
  • 3
    7061081 ROD, END-RADIUS 7/16 (LEFT)
    ROD, END-RADIUS 7/16 (LEFT)
  • 4
    7547066 NUT, NYLOCK (7/16-20)
    NUT, NYLOCK (7/16-20)
  • 5
    7547117 NUT
    NUT
  • 6
    7547028 NUT, JAM (LEFT)
    NUT, JAM (LEFT)
  • 7
    5133137 TUBE, RADIUS ROD, UPPER, CLD SLV
    TUBE, RADIUS ROD, UPPER, CLD SLV
  • 8
    7542520 NUT, JAM
    NUT, JAM
  • 9
    7061061 ROD, END 7/16 RADIUS
    ROD, END 7/16 RADIUS
  • 10
    7542439 NUT, NYLOCK
    NUT, NYLOCK
  • 11
    7515433 BOLT
    BOLT
  • 12
    5630580 RETAINER, SPRING, SLOTTED
    RETAINER, SPRING, SLOTTED
  • 13
    7515415 BOLT
    BOLT
  • 14
    7041551-067 SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 15
    7042059 SHOCK, IFS, ARVIN, IFP
    SHOCK, IFS, ARVIN, IFP
  • 16
    5431734 RING, SPRING PRELOAD ADJ.
    RING, SPRING PRELOAD ADJ.
  • 17
    1500063 RETAINER, SPRING, BODY, THREADED
    RETAINER, SPRING, BODY, THREADED
  • 18
    7517583 SCREW (3/8-24X2 HX/CP GR5)
    SCREW (3/8-24X2 HX/CP GR5)
  • 19
    7555832 WASHER
    WASHER
  • 20
    5133060 ARM, STEERING MACHINED
    ARM, STEERING MACHINED
  • 21
    7061086 ROD, END (3/8, 50Ш, 1.00 RIGHT)
    ROD, END (3/8, 50Ш, 1.00 RIGHT)
  • 22
    7555797 WASHER
    WASHER
  • 23
    1821201-293 TRAILING ARM ASSY., SVC (LEFT/RED) [INCL. 26, 27]
    TRAILING ARM ASSY., SVC (LEFT/RED) [INCL. 26, 27]
  • 23
    1821202-293 TRAILING ARM ASSY., SVC (RIGHT/RED) [INCL. 26, 27]
    TRAILING ARM ASSY., SVC (RIGHT/RED) [INCL. 26, 27]
  • 23
    1821201-216 TRAILING ARM ASSY., SVC (LEFT/YELLOW) [INCL. 26, 27]
    TRAILING ARM ASSY., SVC (LEFT/YELLOW) [INCL. 26, 27]
  • 23
    1821202-216 TRAILING ARM ASSY., SVC (RIGHT/YELLOW) [INCL. 26, 27]
    TRAILING ARM ASSY., SVC (RIGHT/YELLOW) [INCL. 26, 27]
  • 24
    7555820 WASHER
    WASHER
  • 25
    5132364 CUP, TRAILING ARM MOUNT
    CUP, TRAILING ARM MOUNT
  • 26
    7061042 BEARING, SPHERICAL (7/16 PLASTIC)
    BEARING, SPHERICAL (7/16 PLASTIC)
  • 27
    7710437 RING, RETAINING
    RING, RETAINING
  • 28
    7512099 BOLT
    BOLT
  • 29
    3573909 BUSHING, FLANGE
    BUSHING, FLANGE
  • 30
    7080433 ZERK FITTING, THREADED
    ZERK FITTING, THREADED
  • 31
    5433814 BUSHING, TORSION BAR (9/16'')
    BUSHING, TORSION BAR (9/16'')
  • 32
    7621452 RIVET
    RIVET
  • 33
    5245217-067 BAR, TORSION (9/16) EDGE RMK, BLK
    BAR, TORSION (9/16) EDGE RMK, BLK
  • 34
    5433885 SLIDE, TORSION BAR (9/16)
    SLIDE, TORSION BAR (9/16)
  • 35
    7556509 WASHER SPECIAL
    WASHER SPECIAL
  • 36
    3574208 BUSHING, SPINDLE HOUSING
    BUSHING, SPINDLE HOUSING
  • 37
    6230225-067 SHAFT, SPINDLE W/STEER STOP, BLK
    SHAFT, SPINDLE W/STEER STOP, BLK
  • 38
    7080306 FITTING, LUBE.W/BALL CHECK
    FITTING, LUBE.W/BALL CHECK
  • 39
    5010158 BUSHING, PIVOT
    BUSHING, PIVOT
  • 40
    7547065 NUT, NYLOCK (1/2-20)
    NUT, NYLOCK (1/2-20)
  • 41
    7556213 WASHER (.505X1.00X.062, HH)
    WASHER (.505X1.00X.062, HH)
  • 42
    7517906 BOLT (1/2-20X2, HXCAP, GR5)
    BOLT (1/2-20X2, HXCAP, GR5)
  • 43
    7542711 NUT, JAM
    NUT, JAM
  • 44
    7061052 ROD END-RADIUS (RIGHT) LOWER
    ROD END-RADIUS (RIGHT) LOWER
  • 45
    7556153 WASHER, FLAT (3/8)
    WASHER, FLAT (3/8)
  • 46
    5132953 TUBE, RADIUS ROD (LOWER)
    TUBE, RADIUS ROD (LOWER)
  • 47
    7061087 ROD END-RADIUS (LEFT) LOWER
    ROD END-RADIUS (LEFT) LOWER
  • 48
    7517981 BOLT (1/2-20X4.00, HXCAP, GR8)
    BOLT (1/2-20X4.00, HXCAP, GR8)
