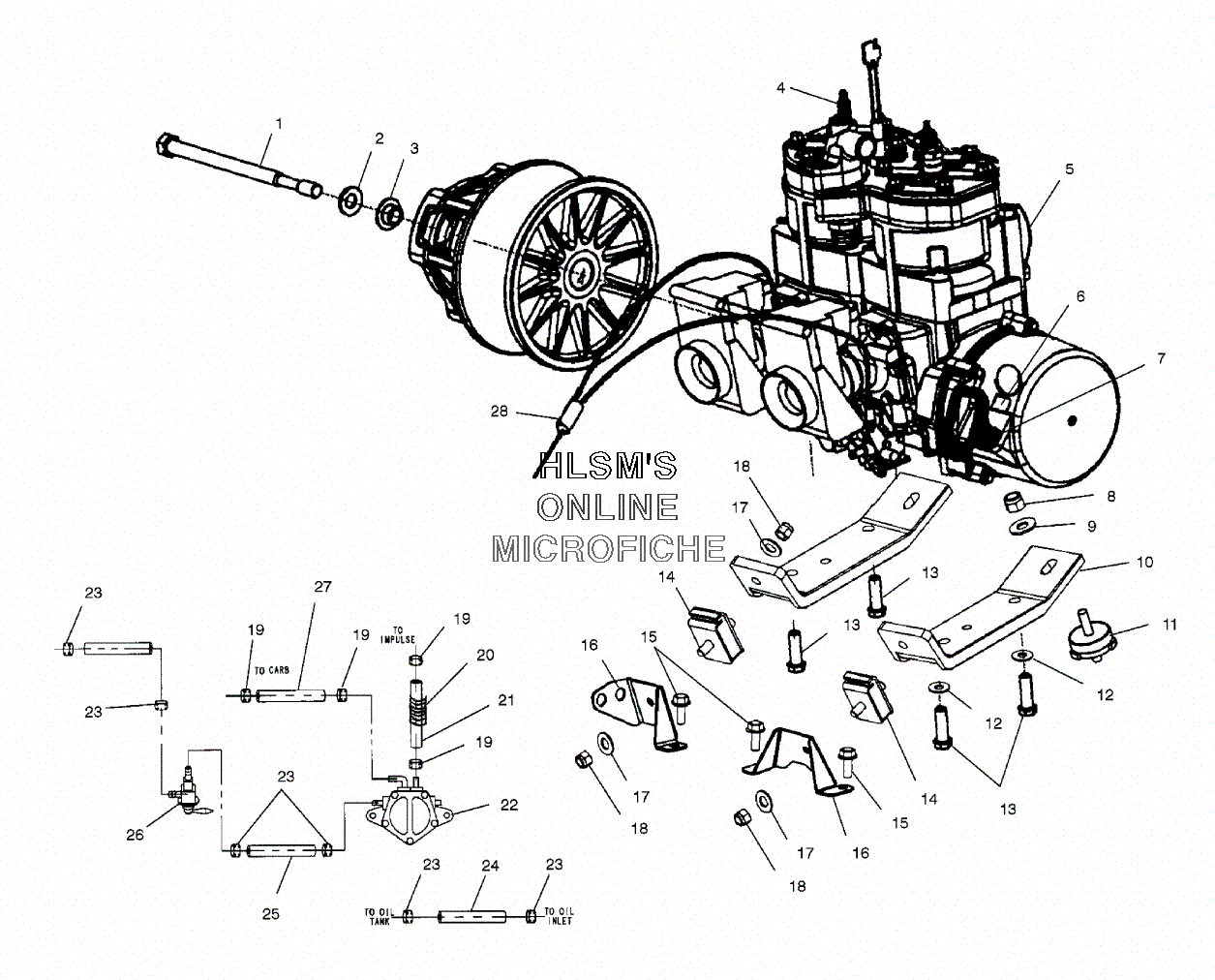

ENGINE MOUNTING W/ SHORT BLOCK для Polaris 500 XC (S01NP5AS) - 2001 года выпуска`
-
№АртикулНазвание
-
17517501 SCREWSCREW
-
27556003 WASHERWASHER
-
35131872 WASHER, CLUTCH RETWASHER, CLUTCH RET
-
43070190 SP.PLUG, CHAMPION RN57Y CC (8)SP.PLUG, CHAMPION RN57Y CC (8)
-
52201660 SHT KIT (BLK) S50 44 PO (S5044P0A1 1947A)SHT KIT (BLK) S50 44 PO (S5044P0A1 1947A)
-
67078317 DECAL FUEL SHUT OFFDECAL FUEL SHUT OFF
-
75431499 HANDLE, RECOIL (BLK)HANDLE, RECOIL (BLK)
-
87542451 NUT, NYLOCNUT, NYLOC
-
97555893 WASHERWASHER
-
105244951 STRAP ENGINE MOUNT (S44) (LEFT)STRAP ENGINE MOUNT (S44) (LEFT)
-
105244952 STRAP ENGINE MOUNT (S44) (RIGHT)STRAP ENGINE MOUNT (S44) (RIGHT)
-
113021290 MOUNT ENGINE (3/8 16 50 DUR)MOUNT ENGINE (3/8 16 50 DUR)
-
127553101 WASHER LOCKWASHER LOCK
-
137512539 BOLTBOLT
-
143021206 MOUNT ENGINE, RECT (3/8 16)MOUNT ENGINE, RECT (3/8 16)
-
157517854 SCREWSCREW
-
161013397 WELD ENGINE MOUNT BRACKET (LEFT)WELD ENGINE MOUNT BRACKET (LEFT)
-
165245044 BRACKET ENGINE MOUNT, FORMED (RIGHT)BRACKET ENGINE MOUNT, FORMED (RIGHT)
-
177555806 WASHERWASHER
-
187547008 NUT, FLEXLOCKNUT, FLEXLOCK
-
197080003 CLAMP, HOSECLAMP, HOSE
-
208360052-15 HOSEHOSE
-
218450040-600 FUEL LINE (1/4 ID) (600 CM.)FUEL LINE (1/4 ID) (600 CM.)
-
222520135 PUMP, FUEL, 1 OUTLETPUMP, FUEL, 1 OUTLET
-
237080307 CLAMPCLAMP
-
248450003-1525 FUEL LINE (1/4 ID) (1525 CM.)FUEL LINE (1/4 ID) (1525 CM.)
-
258350018-600 TUBING, ETHER ERETHNE (160CM)TUBING, ETHER ERETHNE (160CM)
-
267052249 VALVE FUEL, PLASTIC 90Ш HOSEVALVE FUEL, PLASTIC 90Ш HOSE
-
278350017-600 FUEL LINE, ETHER (5/16'') (RED)FUEL LINE, ETHER (5/16'') (RED)
-
287080867 CABLE, THROTTLE, TWINCABLE, THROTTLE, TWIN
