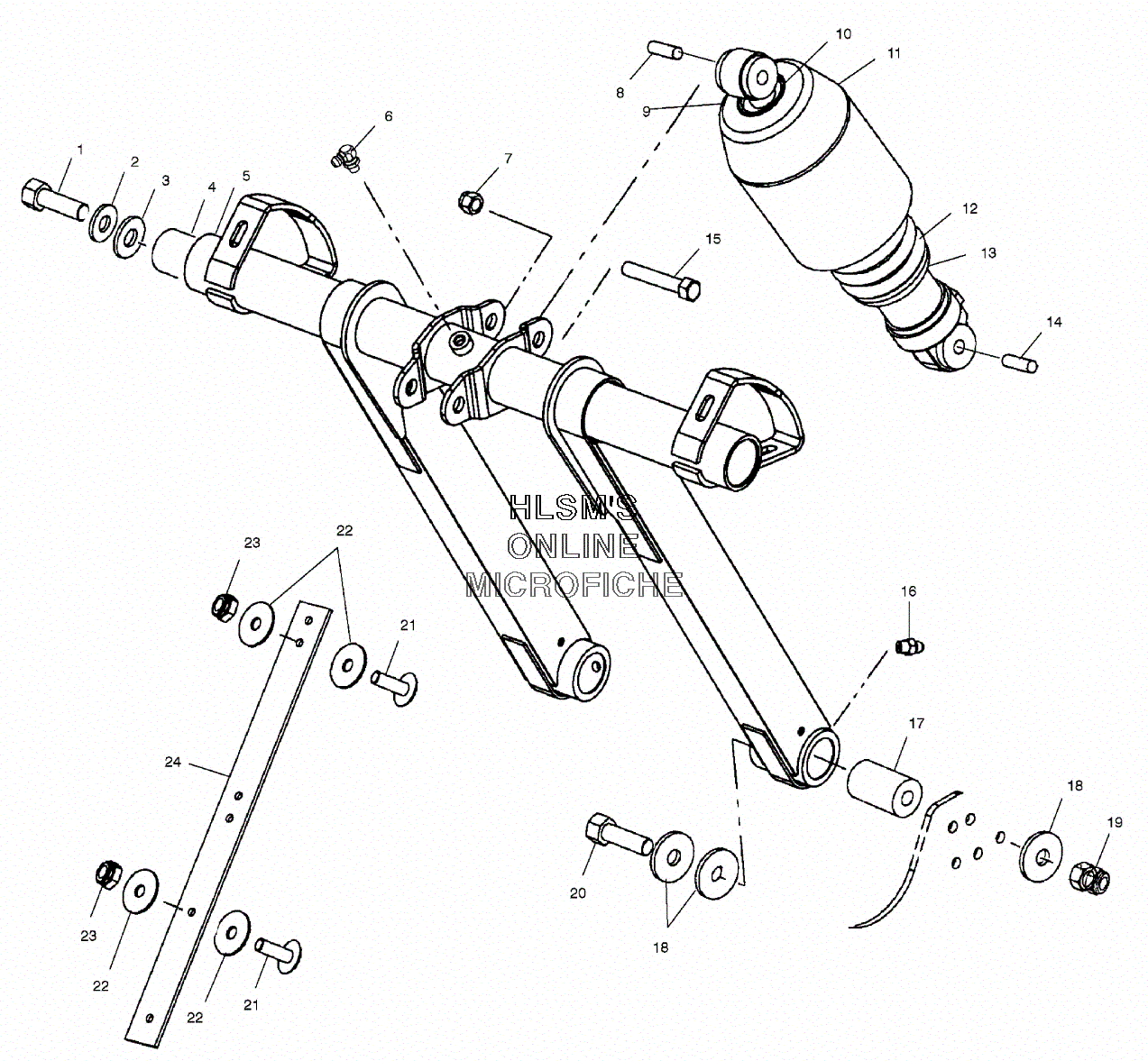

SUSPENSION - FRONT TORQUE ARM ASSEMBLY для Polaris 500 XC (S01NP5AS) - 2001 года выпуска
-
№АртикулНазвание
-
17517435 BOLTBOLT
-
27552603 WASHER, SPRING, LOCKWASHER, SPRING, LOCK
-
37555893 WASHERWASHER
-
45132067 SHAFT FTA (UPPER)SHAFT FTA (UPPER)
-
51541532-293 WELD, TORQUE ARM, EDGE (FRONT/RED)WELD, TORQUE ARM, EDGE (FRONT/RED)
-
67080510 FITTING, ZERKFITTING, ZERK
-
77542439 NUT, NYLOKNUT, NYLOK
-
85333905 SLEEVE (.385X.560X1.24)SLEEVE (.385X.560X1.24)
-
97041939 SHOCK FRONT TRACKSHOCK FRONT TRACK
-
105630580 RETAINER, SPRING, SLOTTEDRETAINER, SPRING, SLOTTED
-
115433503 SHIELD SPRING, 3.00SHIELD SPRING, 3.00
-
127041253-067 SPRING, COMP. (BLK)SPRING, COMP. (BLK)
-
135245067 RETAINER SPRING, GAB, PLATEDRETAINER SPRING, GAB, PLATED
-
145333906 SLEEVE (.385X.560X1.72)SLEEVE (.385X.560X1.72)
-
157515415 BOLTBOLT
-
167080424 FITTING, LUBE.FITTING, LUBE.
-
175132387 SHAFT (.453X.999X1.60)SHAFT (.453X.999X1.60)
-
187556156 WASHERWASHER
-
197547066 NUTNUT
-
207512597 BOLTBOLT
-
217517313 SCREWSCREW
-
227555959 WASHERWASHER
-
237542344 NUT, NYLOCNUT, NYLOC
-
245411971 STRAP LIMITER (FRONT)STRAP LIMITER (FRONT)
