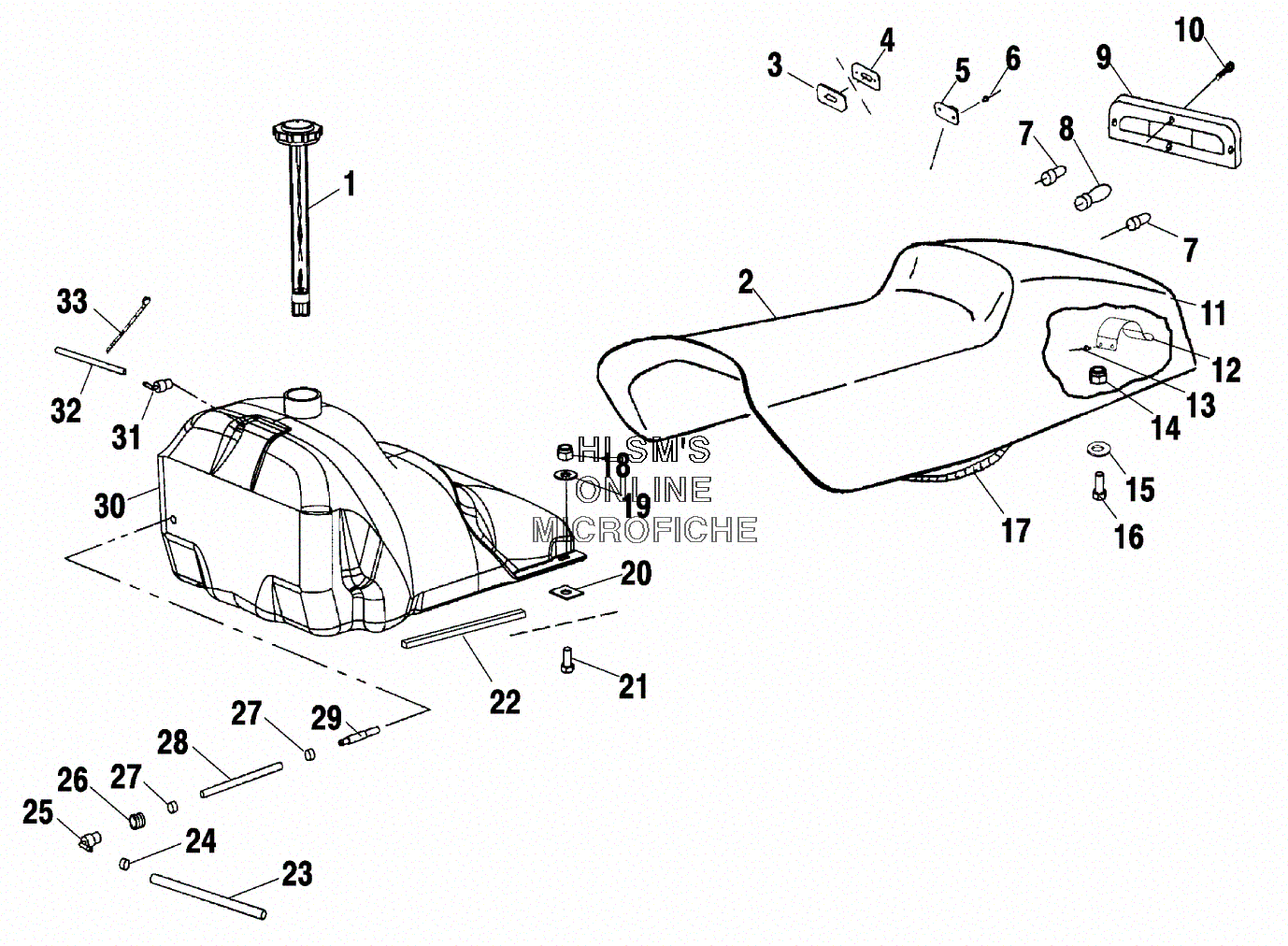

SEAT W/ GAS TANK ASSEMBLY для Polaris 500 XC (S01NP5AS) - 2001 года выпуска`
-
№АртикулНазвание
-
11240066 CAP, FUEL, W/GAUGE (12.5)CAP, FUEL, W/GAUGE (12.5)
-
22682587 CUSHION, ASSY., SEAT (INCL. 2 12, 17)CUSHION, ASSY., SEAT (INCL. 2 12, 17)
-
22682588 SEAT COVER ASSY.SEAT COVER ASSY.
-
37080550 GROMMET, RELATCH (1'') (BOTTOM)GROMMET, RELATCH (1'') (BOTTOM)
-
47080549 GROMMET, RELATCH, 1'', TOPGROMMET, RELATCH, 1'', TOP
-
57080548 TWISTLOCK, RELATCH, 1'', W/HOLETWISTLOCK, RELATCH, 1'', W/HOLE
-
67621337 RIVETRIVET
-
74030024 BULB, TAILLIGHTBULB, TAILLIGHT
-
84030045 BULB, BRAKELIGHTBULB, BRAKELIGHT
-
95430423 LENS, TAILLIGHTLENS, TAILLIGHT
-
107511840 SCREWSCREW
-
115433341 HOUSING TAILLIGHTHOUSING TAILLIGHT
-
125243185 RETAINER CLIP, TOOL POUCHRETAINER CLIP, TOOL POUCH
-
137621472 RIVETRIVET
-
147547114 NUT, WELD, TAB (1/4 20T L0K)NUT, WELD, TAB (1/4 20T L0K)
-
157558301 WASHER, FLATWASHER, FLAT
-
167515159 SCREWSCREW
-
172460399 HARNESS, TAILLIGHTHARNESS, TAILLIGHT
-
187542122 NUT LOCKNUT LOCK
-
197555960 WASHERWASHER
-
207670021 SPEED NUTSPEED NUT
-
217512193 BOLTBOLT
-
225810063 PAD GAS TANKPAD GAS TANK
-
238350018-600 TUBING, ERETHNE (160CM)TUBING, ERETHNE (160CM)
-
247080307 CLAMPCLAMP
-
257052259 FITTING (1/4'' 90Ш DEX)FITTING (1/4'' 90Ш DEX)
-
267052028 GROMMET TANK FITTINGGROMMET TANK FITTING
-
277080402 RING, COMPRESSIONRING, COMPRESSION
-
288350019-600 FUEL LINE, ESTERFUEL LINE, ESTER
-
297052301 PICK UP FUEL, W/FILTER (105MICRN)PICK UP FUEL, W/FILTER (105MICRN)
-
302520173 TANK, FUEL, EDGE (INCL. 29 31)TANK, FUEL, EDGE (INCL. 29 31)
-
317052095 FITTING (90 DEG) (1/8)FITTING (90 DEG) (1/8)
-
328450061-600 FUELLINE (3MMX7MM)FUELLINE (3MMX7MM)
-
337080804 CABLE TIE RELEASABLE (5 1/2'')CABLE TIE RELEASABLE (5 1/2'')
