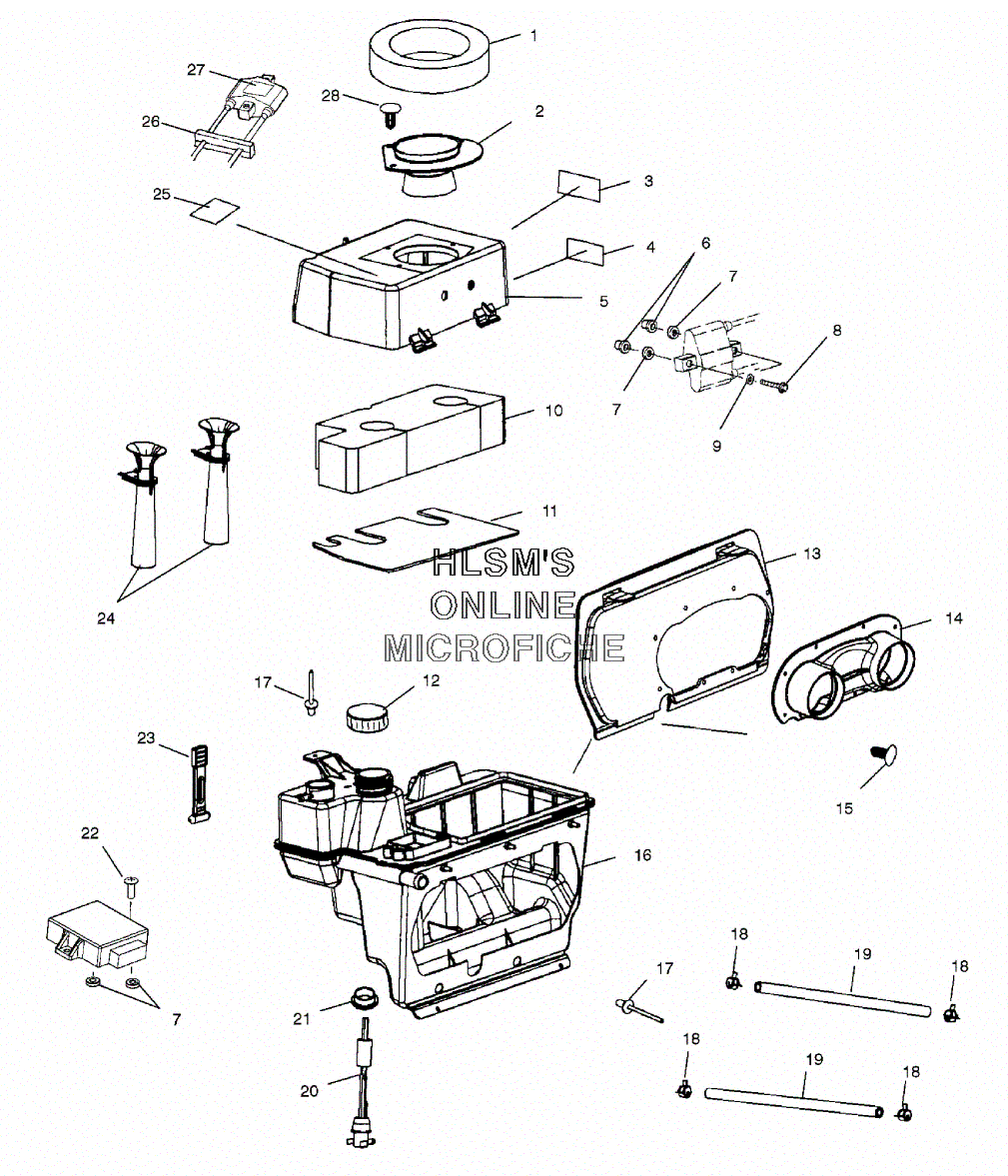

AIR BOX для Polaris 500 XC (S01NP5AS) - 2001 года выпуска
-
№АртикулНазвание
-
15811882 FOAM, AIRBOX, CHIMNEY, EDGEFOAM, AIRBOX, CHIMNEY, EDGE
-
25433664 DUCT, AIR, INLETDUCT, AIR, INLET
-
37073820 DECAL, ADJUSTER DRIVEN CLUTCHDECAL, ADJUSTER DRIVEN CLUTCH
-
47073426 DECAL, GREASINGDECAL, GREASING
-
51253302 AIR SILENCER COVER ASSY.AIR SILENCER COVER ASSY.
-
67547103 NUTNUT
-
77555932 WASHER, NYLONWASHER, NYLON
-
87517610 SCREWSCREW
-
97552604 WASHERWASHER
-
105811979 FOAM, AIRBOX, PLATEFOAM, AIRBOX, PLATE
-
115433665 PLATE, INTAKE, EDGEPLATE, INTAKE, EDGE
-
121240094 CAP OIL, VENTED (CUSTOM COLOR)CAP OIL, VENTED (CUSTOM COLOR)
-
135433514 PLATE, CARBURETOR ADAPTERPLATE, CARBURETOR ADAPTER
-
145411770 BOOT, CARBURETOR, MIKTM EDGE (63MM,)BOOT, CARBURETOR, MIKTM EDGE (63MM,)
-
157080431 FASTENER, DARTFASTENER, DART
-
161253336 AIR SILENCER ASSY. (INCL. 20, 21)AIR SILENCER ASSY. (INCL. 20, 21)
-
177621472 RIVETRIVET
-
187080307 CLAMPCLAMP
-
198450003-1525 FUEL LINE (1/4 ID) (1525 CM.)FUEL LINE (1/4 ID) (1525 CM.)
-
204010224 FITTING OIL SENDERFITTING OIL SENDER
-
217052247 GROMMET OIL SENDERGROMMET OIL SENDER
-
227512095 SCREWSCREW
-
235433150 STRAP, RUBBERSTRAP, RUBBER
-
245433662 TUBE, INTAKE (OUTER)TUBE, INTAKE (OUTER)
-
257075351 DECAL, CAUTION, AIRBOXDECAL, CAUTION, AIRBOX
-
267080471 T-CLIPT-CLIP
-
277077076 DECALDECAL
-
287670090 CLIP, PLASTIC DART, NYLONCLIP, PLASTIC DART, NYLON
