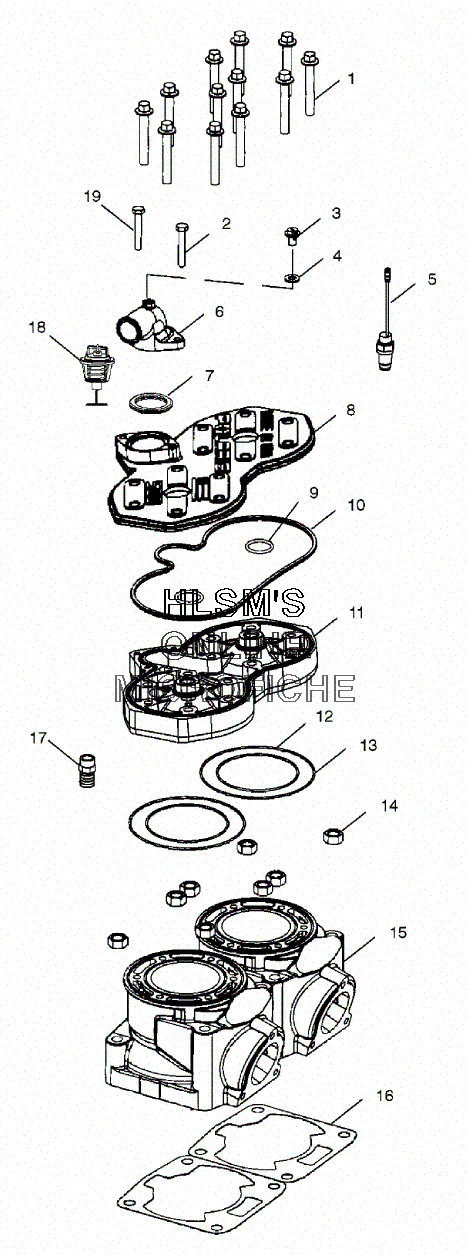

CYLINDER ASSEMBLY для Polaris 500 XC (S01NP5AS) - 2001 года выпуска
-
№АртикулНазвание
-
17516733 SCREWSCREW
-
27516822 SCREWSCREW
-
37517679 SCREWSCREW
-
47555998 WASHER, FLATWASHER, FLAT
-
54110254 SENSOR, TEMP (93 DEG.C)SENSOR, TEMP (93 DEG.C)
-
65630992 COVER THERMOSTAT, M6 BLEED LGCOVER THERMOSTAT, M6 BLEED LG
-
75411521 O-RING, LIPSEALO-RING, LIPSEAL
-
85630937-070 COVER HEAD W/BYPASS (70.5MM) (BLK)COVER HEAD W/BYPASS (70.5MM) (BLK)
-
95411411 O-RINGO-RING
-
105411465 SEAL, MLDD.HEAD, TWINSEAL, MLDD.HEAD, TWIN
-
113021048 HEAD CYLINDER, 70.5, TWN, SNO, 3/4HEAD CYLINDER, 70.5, TWN, SNO, 3/4
-
125411199 O-RINGO-RING
-
135411359 O-RINGO-RING
-
147547013 NUTNUT
-
153021135 CYLINDER (70.5MM)CYLINDER (70.5MM)
-
165811599 GASKET, CYLINDER BASE (66MM AND 70.5MM)GASKET, CYLINDER BASE (66MM AND 70.5MM)
-
177052234 FITTING 3/4NPT 1'' HOSE BRASSFITTING 3/4NPT 1'' HOSE BRASS
-
187052267 THERMOSTAT 50C TBYS SS STEMTHERMOSTAT 50C TBYS SS STEM
-
197516818 SCREWSCREW
