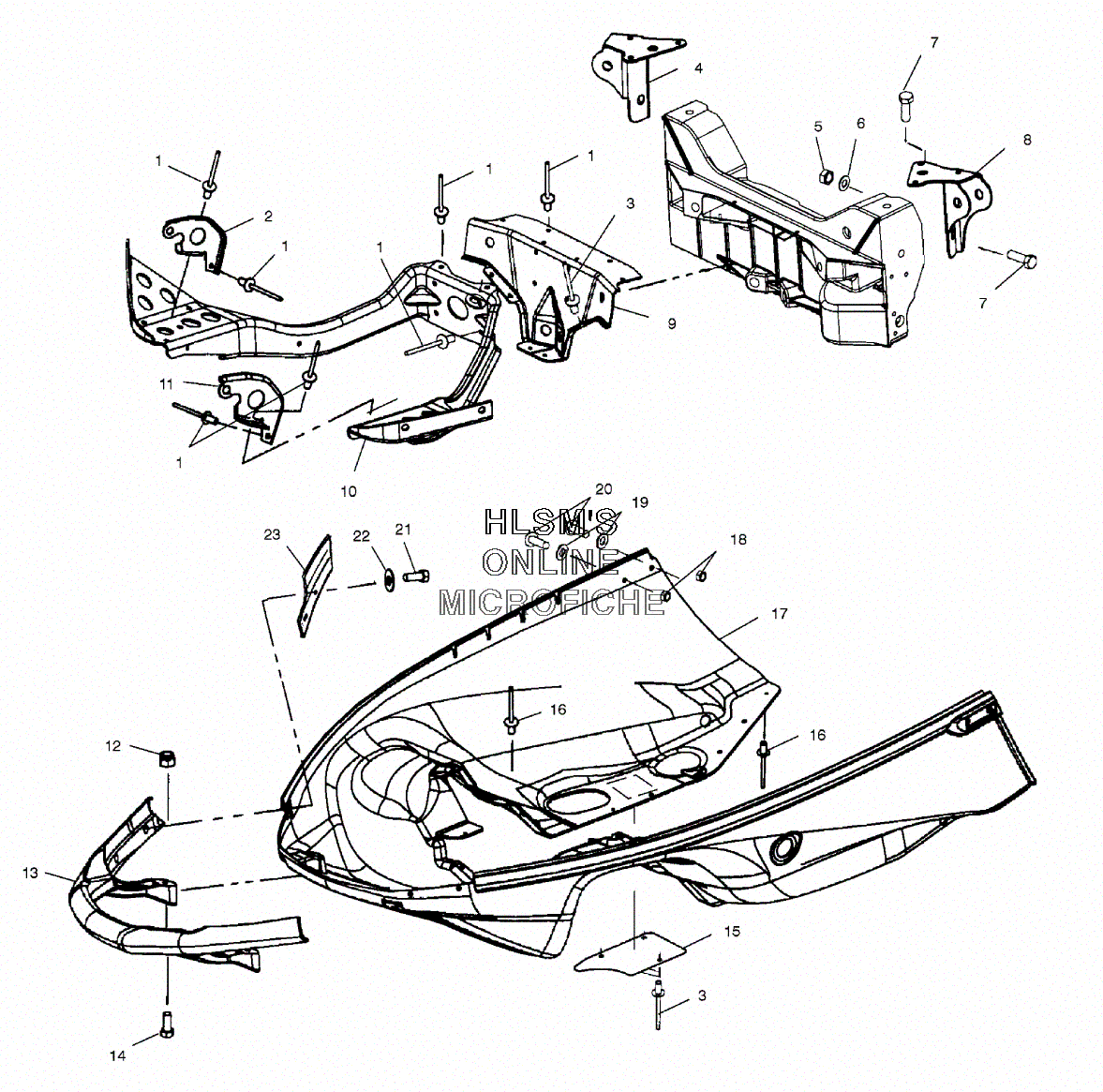

NOSEPAN ASSEMBLY #2 для Polaris 500 XC (S01NP5AS) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    7661637 RIVET, INTERLOCK, Z
    RIVET, INTERLOCK, Z
  • 2
    5243992-067 HINGE PIVOT (LOWER/RIGHT/BLK)
    HINGE PIVOT (LOWER/RIGHT/BLK)
  • 3
    7621472 RIVET
    RIVET
  • 4
    5243978 MOUNT, SHOCK (UPPER/RIGHT/BLK)
    MOUNT, SHOCK (UPPER/RIGHT/BLK)
  • 5
    7542451 NUT, NYLOC
    NUT, NYLOC
  • 6
    7556153 WASHER (3/8 FW)
    WASHER (3/8 FW)
  • 7
    7515440 BOLT
    BOLT
  • 8
    5243977 MOUNT UPPER SHOCK (BLK) HD (LEFT)
    MOUNT UPPER SHOCK (BLK) HD (LEFT)
  • 9
    5244049-067 BRACKET, RADIUS ROD SUPPORT (BLK)
    BRACKET, RADIUS ROD SUPPORT (BLK)
  • 10
    5244050 BRACE, PAN (LOWER)
    BRACE, PAN (LOWER)
  • 11
    5243991-067 HINGE LOWER PIVOT (LEFT/BLK)
    HINGE LOWER PIVOT (LEFT/BLK)
  • 12
    7542153 NUT
    NUT
  • 13
    5433518-070 BUMPER, FRONT EDGE (BLK)
    BUMPER, FRONT EDGE (BLK)
  • 14
    7512163 SCREW
    SCREW
  • 15
    5243849 SHIDLD, EXHAUST, EXTENDED
    SHIDLD, EXHAUST, EXTENDED
  • 16
    7621467 RIVET, BLIND
    RIVET, BLIND
  • 17
    5433502-070 NOSEPAN, GAS ASSIST (BLK)
    NOSEPAN, GAS ASSIST (BLK)
  • 18
    7542122 NUT LOCK
    NUT LOCK
  • 19
    7555827 WASHER
    WASHER
  • 20
    7515166 SCREW
    SCREW
  • 21
    7517312 SCREW
    SCREW
  • 22
    7552801 LOCK WASHER
    LOCK WASHER
  • 23
    5244888 GUIDE HOOD, EDGE (LEFT)
    GUIDE HOOD, EDGE (LEFT)
  • 23
    5244889 GUIDE HOOD, EDGE (RIGHT)
    GUIDE HOOD, EDGE (RIGHT)
