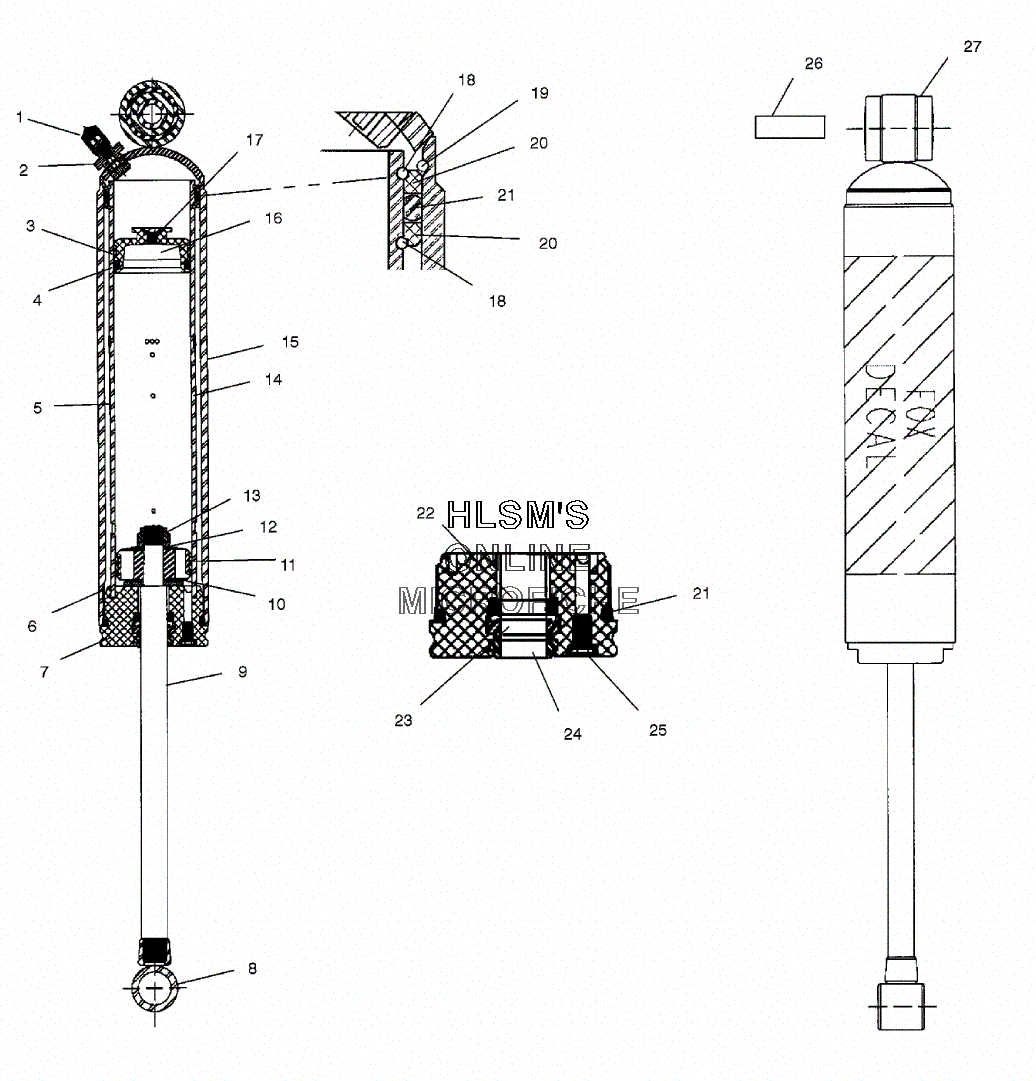

SUSPENSION - FOX SHOCK - GAS- REAR TRACK для Polaris 500 XC (S01NP5AS) - 2001 года выпуска

  • №
    Артикул
    Название
  • 8
    7041846 SHOCK, R/T, FOX, PPS
    SHOCK, R/T, FOX, PPS
  • 1
    1500210 CAP, SHRADER VALVE
    CAP, SHRADER VALVE
  • 2
    1500206 VALVE AIR, COMPLETE
    VALVE AIR, COMPLETE
  • 3
    1500006 RING, PISTON, FLOATING
    RING, PISTON, FLOATING
  • 4
    1500003 O-RING, ENDCAP
    O-RING, ENDCAP
  • 5
    1500306 VALVE, CHECK, NBR DURO A 90
    VALVE, CHECK, NBR DURO A 90
  • 6
    1500458 BODY-.1.46X6.55 TLG NON/GR
    BODY-.1.46X6.55 TLG NON/GR
  • 7
    1500334 BEARING, W/P.S. GROOVE
    BEARING, W/P.S. GROOVE
  • 8
    1500302 EYELET
    EYELET
  • 9
    1500333 SHAFT (.5X8.35 TLG)
    SHAFT (.5X8.35 TLG)
  • 10
    1500017 PLATE, TOP OUT
    PLATE, TOP OUT
  • 11
    1500002 DAMPER, PISTONRING
    DAMPER, PISTONRING
  • 12
    1500015 BUSHING, BACKUP
    BUSHING, BACKUP
  • 13
    1500016 NUT, LOCK
    NUT, LOCK
  • 14
    1500331 BODY ASSY., P.S. (INNER)
    BODY ASSY., P.S. (INNER)
  • 15
    1500332 BODY ASSY., P.S. (OUTER)
    BODY ASSY., P.S. (OUTER)
  • 16
    1500187 PISTON FLOATING
    PISTON FLOATING
  • 17
    1500161 SCREW/O-RING ASSY..
    SCREW/O-RING ASSY..
  • 18
    1500097 RING, RETAIN. (FOX) ATV
    RING, RETAIN. (FOX) ATV
  • 19
    1500236 RING, RETAINING
    RING, RETAINING
  • 20
    1500336 COLLAR, ALUMINUM
    COLLAR, ALUMINUM
  • 21
    1500228 SEAL, O-RING
    SEAL, O-RING
  • 22
    1500297 SEAL, Q-RING (139CS 035 00 206)
    SEAL, Q-RING (139CS 035 00 206)
  • 23
    1500025 U-CUP-4300 URETH,036-01-006
    U-CUP-4300 URETH,036-01-006
  • 24
    1500024 WIPER, CLR (OUTER)
    WIPER, CLR (OUTER)
  • 25
    1500295 SCREW
    SCREW
  • 25
    1500022 O-RING, DRUM (OUTER)
    O-RING, DRUM (OUTER)
  • 26
    1500311 SLEEVE (.56X.81X1.28)
    SLEEVE (.56X.81X1.28)
  • 27
    1500307 BUSHING (.35ILG) (.63TLG)
    BUSHING (.35ILG) (.63TLG)
