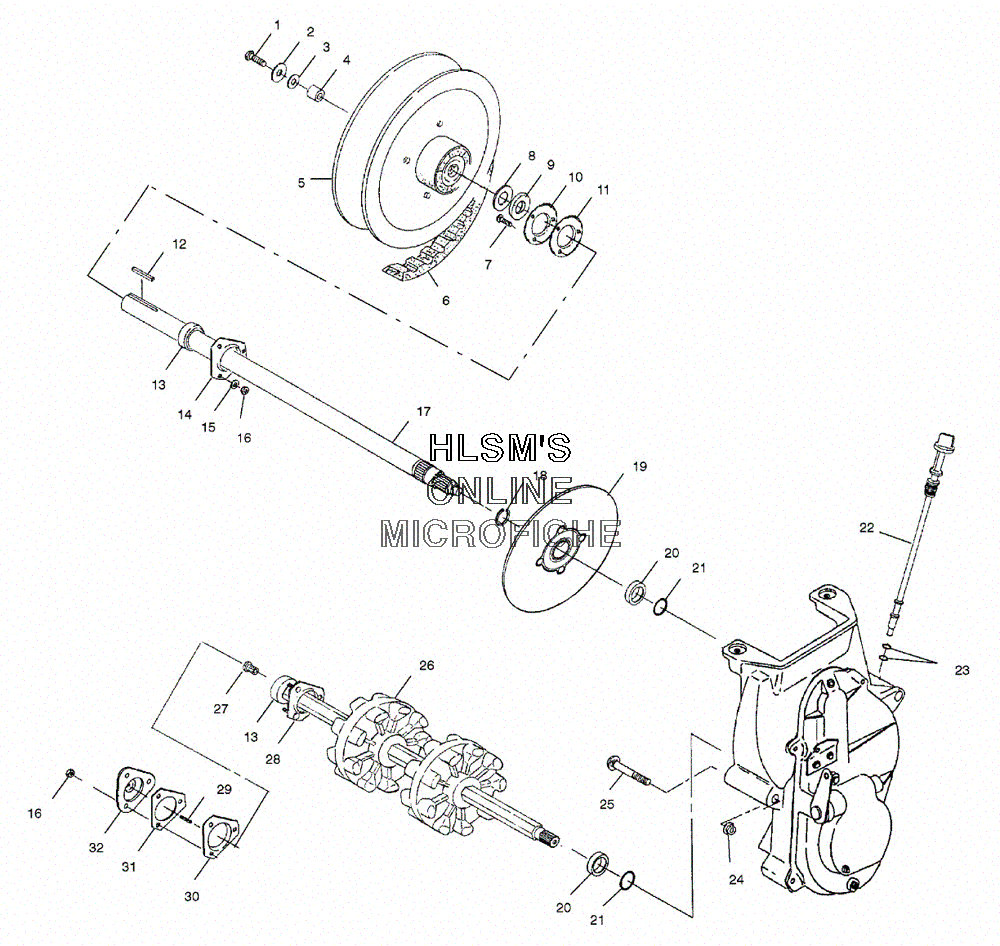

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris TRAIL TOURING (S00ST5BS) - 2000 года выпуска`
-
№АртикулНазвание
-
17515369 BOLTBOLT
-
27555701 WASHER, FLATWASHER, FLAT
-
37555734 WASHER (OPT)WASHER (OPT)
-
45020913 SPACERSPACER
-
63211070 BELT, DRIVE (28 DEGREE)BELT, DRIVE (28 DEGREE)
-
77512377 BOLTBOLT
-
87556509 WASHER, SPECIAL (OPT)WASHER, SPECIAL (OPT)
-
95020837 SPACERSPACER
-
105241359 FLANGE, RELUBE W/ZERKFLANGE, RELUBE W/ZERK
-
107080561 FITTING, LUB/VENFITTING, LUB/VEN
-
115811095 GASKET, JACKSHAFT (BLACK)GASKET, JACKSHAFT (BLACK)
-
127721116 KEYKEY
-
133514525 BEARINGBEARING
-
145222751 FLANGETTEFLANGETTE
-
157558402 WASHER, STEELWASHER, STEEL
-
167542324 NUTNUT
-
171332207 JACKSHAFT ASSY., 15 SPLINE (INCL. 13, 18)JACKSHAFT ASSY., 15 SPLINE (INCL. 13, 18)
-
187710422 RING, RETAININGRING, RETAINING
-
191910403 BRAKE DISCBRAKE DISC
-
205020588 SLEEVE, SEALSLEEVE, SEAL
-
215410613 O-RINGO-RING
-
221332143 DIPSTICK ASSY.DIPSTICK ASSY.
-
235410675 O-RINGO-RING
-
247542423 NUTNUT
-
257515428 BOLTBOLT
-
261590283 DRIVESHAFT ASSY., 2 DR W/BEARING (INCL. 27, 28, 30)DRIVESHAFT ASSY., 2 DR W/BEARING (INCL. 27, 28, 30)
-
273280019 BUSHING, METAL SPEEDOBUSHING, METAL SPEEDO
-
281012945 FLANGETTE ASSY., W/SCREWSFLANGETTE ASSY., W/SCREWS
-
293280017 SQ. KEY SPEEDOMETERSQ. KEY SPEEDOMETER
-
305243529 FLANGETTE, OFFSET W/HOLEFLANGETTE, OFFSET W/HOLE
-
315830012 GASKET, DRIVE ADAPTORGASKET, DRIVE ADAPTOR
-
323280116 ADAPTER, DRIVE W/ZERKADAPTER, DRIVE W/ZERK
