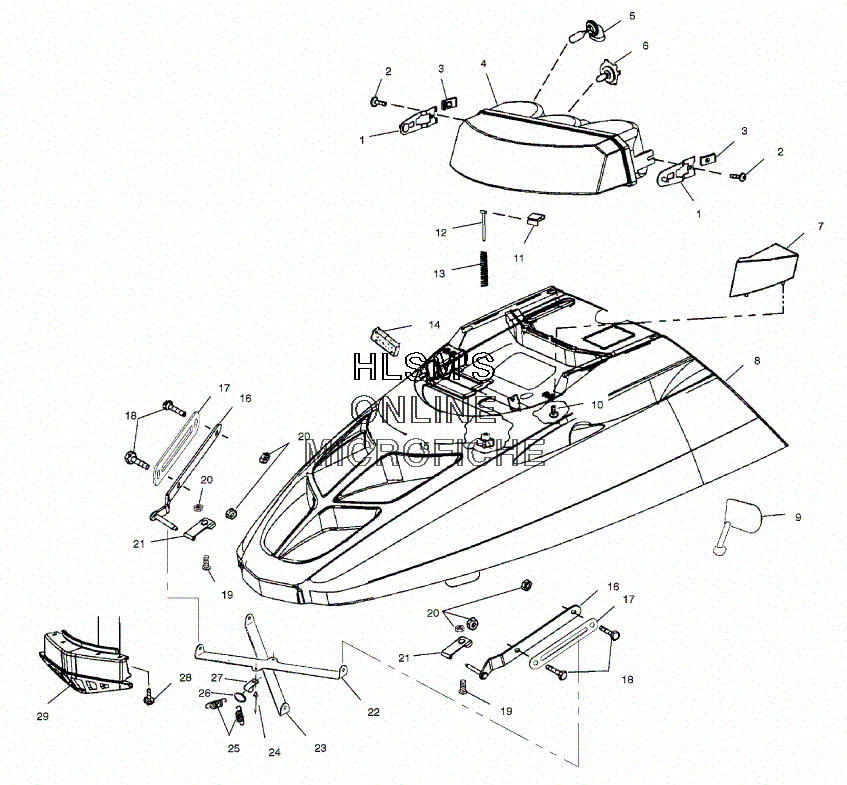

HOOD ASSEMBLY W/ HEADLIGHT для Polaris TRAIL TOURING (S00ST5BS) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    1011944-067 MOUNT, WELD HEADLIGHT
    MOUNT, WELD HEADLIGHT
  • 2
    7515107 BOLT
    BOLT
  • 3
    7670057 NUT, SPEED
    NUT, SPEED
  • 4
    2433016 HEADLAMP, THREE BULB ASSY. (INCL. BULBS)
    HEADLAMP, THREE BULB ASSY. (INCL. BULBS)
  • 5
    4010253 BULB, HEADLIGHT (50 WATT)
    BULB, HEADLIGHT (50 WATT)
  • 6
    2870448 BULB, QUARTZ HEADLIGHT
    BULB, QUARTZ HEADLIGHT
  • 7
    5431855 LENS, REFLECTOR (LEFT/CLEAR)
    LENS, REFLECTOR (LEFT/CLEAR)
  • 7
    5431856 LENS, REFLECTOR (RIGHT/CLEAR)
    LENS, REFLECTOR (RIGHT/CLEAR)
  • 8
    2632014-246 HOOD, ASSY. , HYB, RIGEL BLUE (INCL. FOAM/FOIL)
    HOOD, ASSY. , HYB, RIGEL BLUE (INCL. FOAM/FOIL)
  • 9
    2871531 MIRRORS, DELUXE
    MIRRORS, DELUXE
  • 10
    7512048 SCREW
    SCREW
  • 11
    7670040 CLIP, U TYPE
    CLIP, U TYPE
  • 12
    7717746 PIN
    PIN
  • 13
    7041308 SPRING, HEADLIGHT ADJUST
    SPRING, HEADLIGHT ADJUST
  • 14
    5811687 FOAM, HEADLIGHT SEAL W/PSA
    FOAM, HEADLIGHT SEAL W/PSA
  • 15
    7080887 KNOB, HEADLIGHT ADJUST LOCKING B
    KNOB, HEADLIGHT ADJUST LOCKING B
  • 16
    1012750 HINGE (LEFT/UPPER)
    HINGE (LEFT/UPPER)
  • 16
    1012751 HINGE (RIGHT/UPPER)
    HINGE (RIGHT/UPPER)
  • 17
    5242948 PLATE, BOLT
    PLATE, BOLT
  • 18
    7512247 BOLT
    BOLT
  • 19
    7515203 BOLT
    BOLT
  • 20
    7542122 NUT, LOCK
    NUT, LOCK
  • 21
    5244395 PLATE, HINGE (LOWER)
    PLATE, HINGE (LOWER)
  • 22
    5242945 BRACE, HOOD (UPPER)
    BRACE, HOOD (UPPER)
  • 23
    5242946 BRACE, HOOD (LOWER)
    BRACE, HOOD (LOWER)
  • 24
    7661637 RIVET, INTERLOCK Z
    RIVET, INTERLOCK Z
  • 25
    7041732 SPRING, EXT.
    SPRING, EXT.
  • 26
    7041760 SPRING, ATTACHMENT RING
    SPRING, ATTACHMENT RING
  • 27
    7080372 CLAMP, RETAINER
    CLAMP, RETAINER
  • 28
    7517441 SCREW
    SCREW
  • 29
    5432931 SCREEN, FRONT
    SCREEN, FRONT
