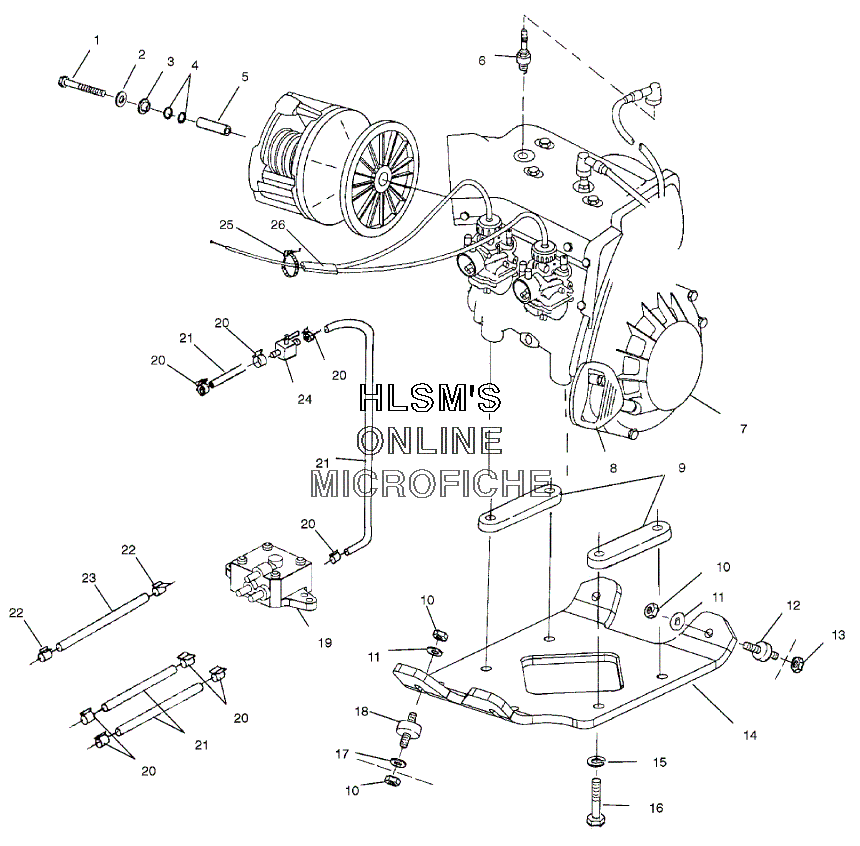

ENGINE MOUNTING W/ SHORT BLOCK для Polaris TRAIL TOURING (S00ST5BS) - 2000 года выпуска`
-
№АртикулНазвание
-
17517529 SCREWSCREW
-
27575202 WASHER, LOCKWASHER, LOCK
-
35010287 WASHER, CLUTCH RETAINERWASHER, CLUTCH RETAINER
-
45410507 O-RINGO-RING
-
55020513 SPACER, CLUTCH BOLTSPACER, CLUTCH BOLT
-
63070163 SPARKPLUG BR9ESSPARKPLUG BR9ES
-
73085618 ENGINE, SPARK PLUGENGINE, SPARK PLUG
-
85431499-070 HANDLE, RECOIL (BLACK)HANDLE, RECOIL (BLACK)
-
95243195 SPACER, ENGINESPACER, ENGINE
-
107547008 NUT, FLEXLOCKNUT, FLEXLOCK
-
117555893 WASHERWASHER
-
123021099 MOUNT, ENGINE (3/8, 16 3 TAB)MOUNT, ENGINE (3/8, 16 3 TAB)
-
137542402 NUT FLEX LOCNUT FLEX LOC
-
145132001 PLATE, MOTOR MOUNTPLATE, MOTOR MOUNT
-
157553101 WASHER, LOCKWASHER, LOCK
-
167517442 BOLTBOLT
-
177555915 WASHER, FLATWASHER, FLAT
-
183110062 MOUNT, ENGINEMOUNT, ENGINE
-
207080307 CLAMPCLAMP
-
218350018-160 TUBING, ETHER ERETHNE (160CM)TUBING, ETHER ERETHNE (160CM)
-
227080003 CLAMP, HOSECLAMP, HOSE
-
238450040-600 FUEL LINE (1/4 ID 600 CM.) (OPT)FUEL LINE (1/4 ID 600 CM.) (OPT)
-
247052219 VALVE, FUEL SHUT OFF FANVALVE, FUEL SHUT OFF FAN
-
257080138 STRAP, PANDUITSTRAP, PANDUIT
-
267080776 CABLE, THROTTLECABLE, THROTTLE
