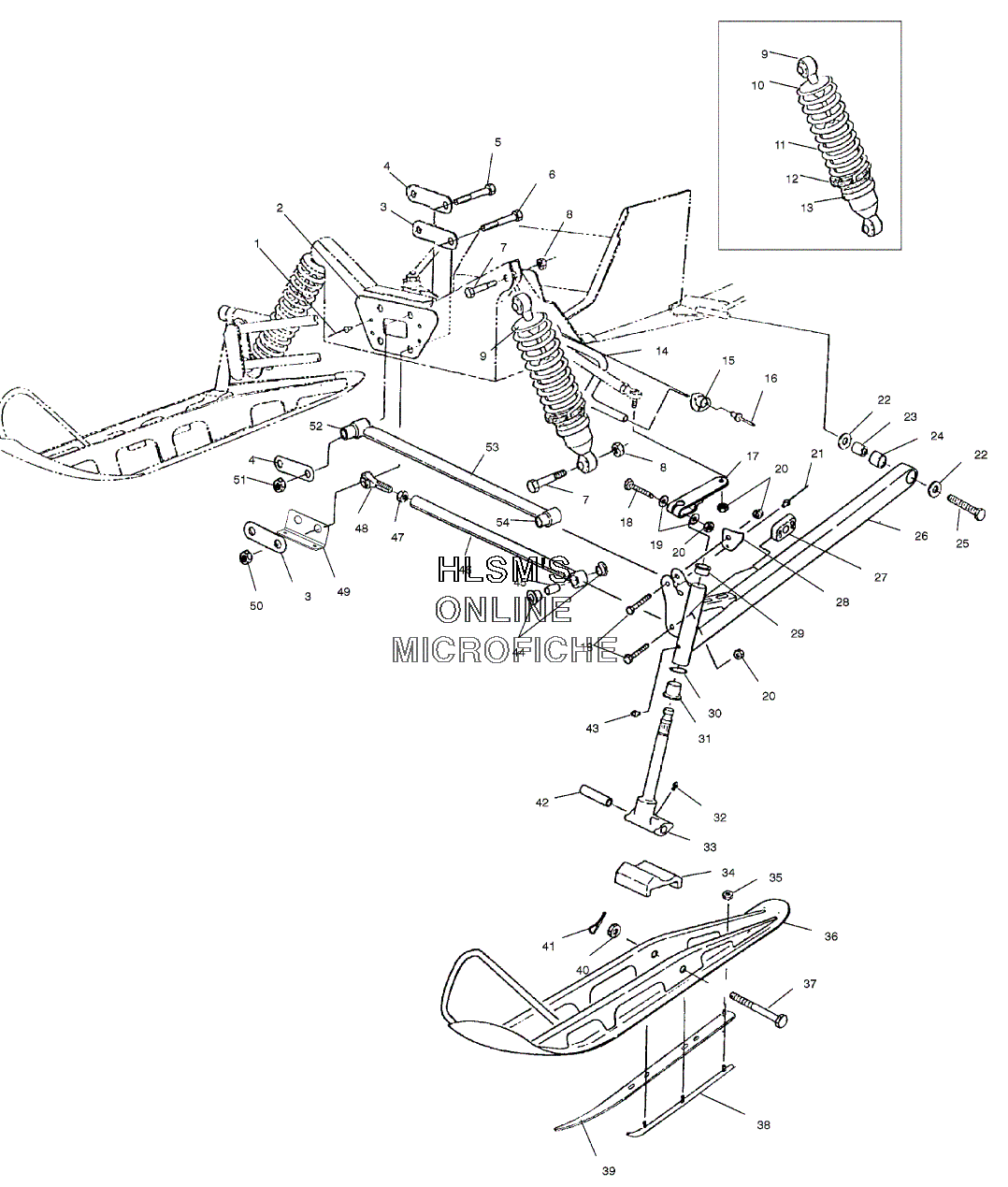

SUSPENSION - FRONT W/ SKI для Polaris TRAIL TOURING (S00ST5BS) - 2000 года выпуска`
-
№АртикулНазвание
-
17661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
25211589-067 BRACE, BULKHEAD/STEERING (BLACK)BRACE, BULKHEAD/STEERING (BLACK)
-
35211345 STRAP, SPACER (BOTTOM)STRAP, SPACER (BOTTOM)
-
45211344 STRAP, SPACER (TOP)STRAP, SPACER (TOP)
-
57512582 BOLTBOLT
-
67512684 BOLTBOLT
-
77515415 BOLTBOLT
-
87542439 NUT, NYLOKNUT, NYLOK
-
97041539 SHOCK, GAS IFSSHOCK, GAS IFS
-
105020618 RETAINER, SPRING SLOTTEDRETAINER, SPRING SLOTTED
-
117041683-067 SPRING, COMP (BLACK)SPRING, COMP (BLACK)
-
125431734 RING, SPRING PRELOAD ADJUSTRING, SPRING PRELOAD ADJUST
-
131500063 RETAINER, SPRING BODY THREADEDRETAINER, SPRING BODY THREADED
-
145224749-067 BAR, SWAY (9/16) (X, 12) (BLACK)BAR, SWAY (9/16) (X, 12) (BLACK)
-
155432412 BUSHING, SWAY BARBUSHING, SWAY BAR
-
167621433 RIVETRIVET
-
175241560-067 ARM, STEERING (BLACK)ARM, STEERING (BLACK)
-
187517583 SCREWSCREW
-
197555832 WASHERWASHER
-
207542403 NUT, LOCKNUT, LOCK
-
217661130 RIVETRIVET
-
227555721 WASHERWASHER
-
235010310 TUBE, BUSHINGTUBE, BUSHING
-
245410872 PIVOT, TRAILING ARM RUBBERPIVOT, TRAILING ARM RUBBER
-
257512557 BOLTBOLT
-
261822506-067 TRAILING ARM ASSY. (LEFT/BLACK) (INCL. 23, 24)TRAILING ARM ASSY. (LEFT/BLACK) (INCL. 23, 24)
-
261822507-067 TRAILING ARM ASSY. (RIGHT/BLACK)TRAILING ARM ASSY. (RIGHT/BLACK)
-
275432674 SLIDE, SWAYBAR (9/16)SLIDE, SWAYBAR (9/16)
-
285241569-067 STOP, STEERING (LEFT/BLACK)STOP, STEERING (LEFT/BLACK)
-
285241570-067 STOP, STEERING (RIGHT/BLACK)STOP, STEERING (RIGHT/BLACK)
-
293573909 BUSHING, FLANGEBUSHING, FLANGE
-
307556509 WASHER SPECIALWASHER SPECIAL
-
313574208 BUSHING, SPINDLE HOUSINGBUSHING, SPINDLE HOUSING
-
327080306 FITTING, LUBE. W/BALL CHECKFITTING, LUBE. W/BALL CHECK
-
336230102-067 SHAFT, SPINDLE TRAILING (BLACK)SHAFT, SPINDLE TRAILING (BLACK)
-
345411083 STOP, RUBBERSTOP, RUBBER
-
357542324 NUTNUT
-
361820430-067 SKI WELDSKI WELD
-
377515462 BOLTBOLT
-
381820318-067 SKAG (BLACK)SKAG (BLACK)
-
391011829-067 PLATE, SKAGPLATE, SKAG
-
407542438 NUT, CASTLENUT, CASTLE
-
417661205 PIN, COTTERPIN, COTTER
-
425010158 BUSHING, PIVOTBUSHING, PIVOT
-
437080433 ZERK, FITTING THREADEDZERK, FITTING THREADED
-
445431486 BUSH, RADIUS ROD PIVOT (OUTER)BUSH, RADIUS ROD PIVOT (OUTER)
-
455010127 BUSHING, RADIUS RODBUSHING, RADIUS ROD
-
461822383-067 ROD, RADIUS (LOWER/BLACK)ROD, RADIUS (LOWER/BLACK)
-
477542711 NUT, JAMNUT, JAM
-
487061052 ROD END, RADIUS (RIGHT/LOWER)ROD END, RADIUS (RIGHT/LOWER)
-
495242578 BRACKET, RADIUS ROD (BOTTEM)BRACKET, RADIUS ROD (BOTTEM)
-
507542703 NUT, FLEXNUT, FLEX
-
517542503 NUT, LOCKNUT, LOCK
-
525411095 BUSHING, PIVOT (7/16)BUSHING, PIVOT (7/16)
-
531822510 ROD, RADIUS (UPPER)ROD, RADIUS (UPPER)
-
545411099 BUSHING, RADIUS ROD PIVOT (3/8)BUSHING, RADIUS ROD PIVOT (3/8)
