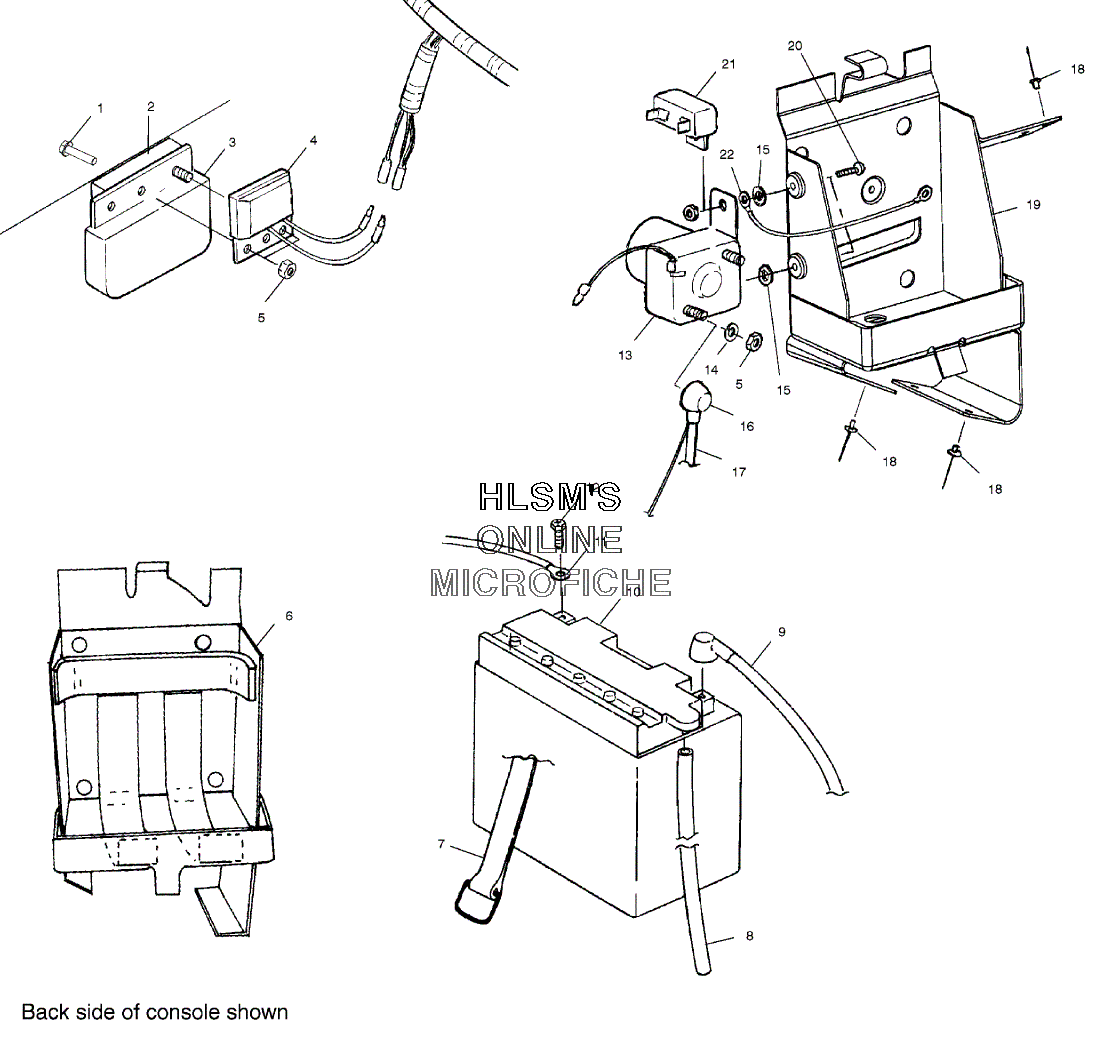

BATTERY BOX для Polaris TRAIL TOURING (S00ST5BS) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    7512031 BOLT
    BOLT
  • 2
    5211573 SPACER, REGULATOR
    SPACER, REGULATOR
  • 3
    4060123 REGULATOR, (14. 3VAC LR, 7)
    REGULATOR, (14. 3VAC LR, 7)
  • 4
    4060104 RECTIFIER (LR 4)
    RECTIFIER (LR 4)
  • 5
    7541925 NUT
    NUT
  • 6
    5810290 PAD, BATTERY
    PAD, BATTERY
  • 7
    2450020 STRAP ASSY., BATTERY HOLDER
    STRAP ASSY., BATTERY HOLDER
  • 8
    5432077 TUBE, BATTERY VENT (OPT)
    TUBE, BATTERY VENT (OPT)
  • 9
    2460393 CABLE ASSY., SOLENOID
    CABLE ASSY., SOLENOID
  • 10
    4140006 BATTERY
    BATTERY
  • 11
    4010114 CABLE, 11'' BATTERY (BLACK)
    CABLE, 11'' BATTERY (BLACK)
  • 12
    2200361 BOLT, BATTERY KIT (SHORT)
    BOLT, BATTERY KIT (SHORT)
  • 14
    7558201 WASHER, FLAT
    WASHER, FLAT
  • 15
    7571602 WASHER
    WASHER
  • 16
    5410346 INSUL. CABLE SOL.
    INSUL. CABLE SOL.
  • 17
    4010190 CABLE (RED)
    CABLE (RED)
  • 18
    7621418 POP RIVET
    POP RIVET
  • 19
    1012799-067 BATTERY BOX (BLACK)
    BATTERY BOX (BLACK)
  • 20
    7512027 SCREW
    SCREW
  • 21
    2434008 CIRCUIT BREAKER
    CIRCUIT BREAKER
  • 22
    4010108 WIRE, JUMPER SOL/BATT 8.5''
    WIRE, JUMPER SOL/BATT 8.5''
