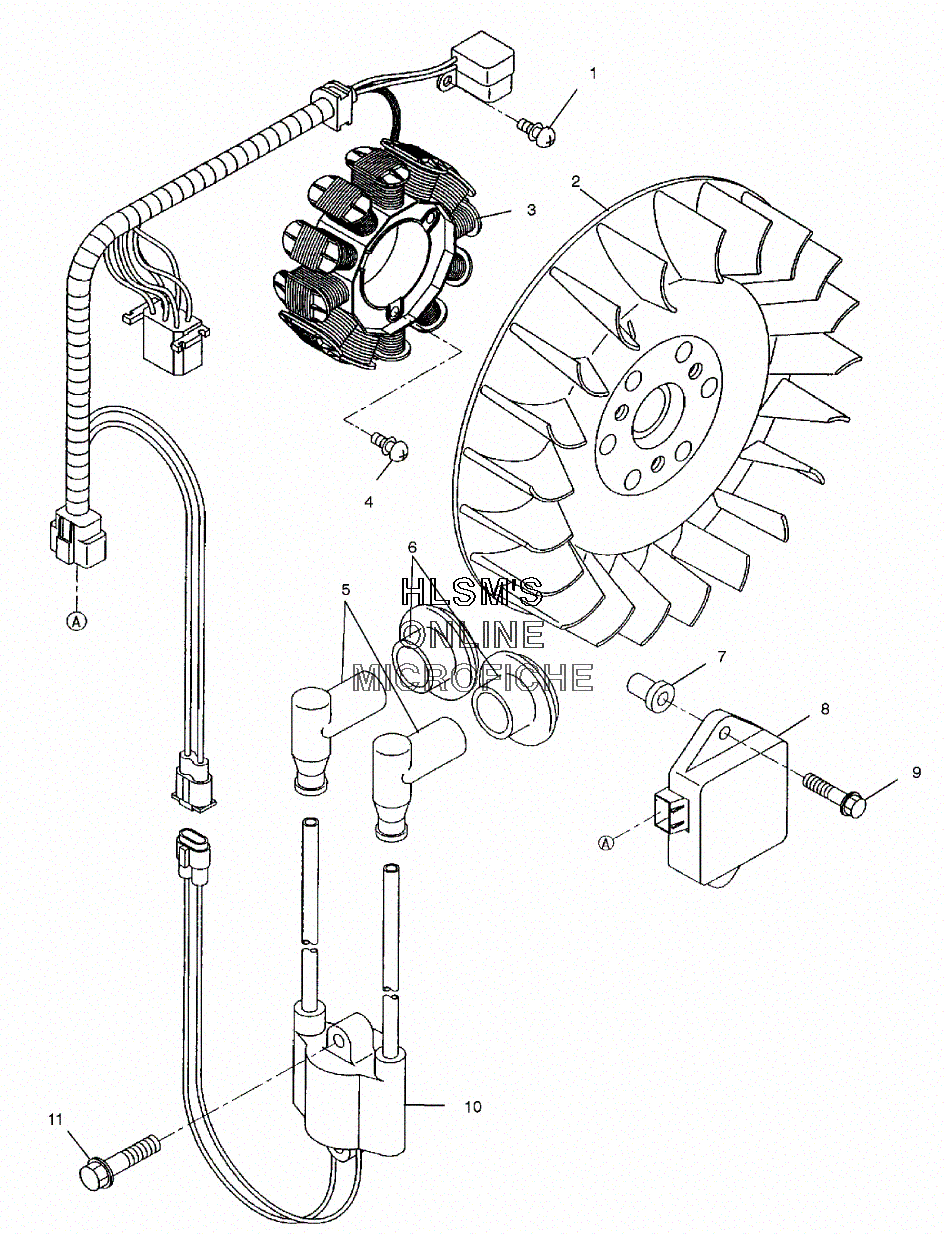

ELECTRICAL - MAGNETO ASSEMBLY W/ COIL для Polaris TRAIL TOURING (S00ST5BS) - 2000 года выпуска`
-
№АртикулНазвание
-
13085698 SCREW AND WASHER ASSY.SCREW AND WASHER ASSY.
-
23085727 FLYWHEEL ASSY.FLYWHEEL ASSY.
-
39990000 MAGNETO ASSY.MAGNETO ASSY.
-
33085934 STATORSTATOR
-
43085697 SCREW AND WASHER ASSY.SCREW AND WASHER ASSY.
-
54020159 CAP, SPARK PLUGCAP, SPARK PLUG
-
63085935 CAP, SPARK PLUGCAP, SPARK PLUG
-
73083240 NUT, RUBBERNUT, RUBBER
-
83087106 CDI SYSTEMCDI SYSTEM
-
93085701 BOLT, FLANGEBOLT, FLANGE
-
103085905 IGNITION COIL COMP.IGNITION COIL COMP.
-
113086751 BOLT, FLANGEBOLT, FLANGE
