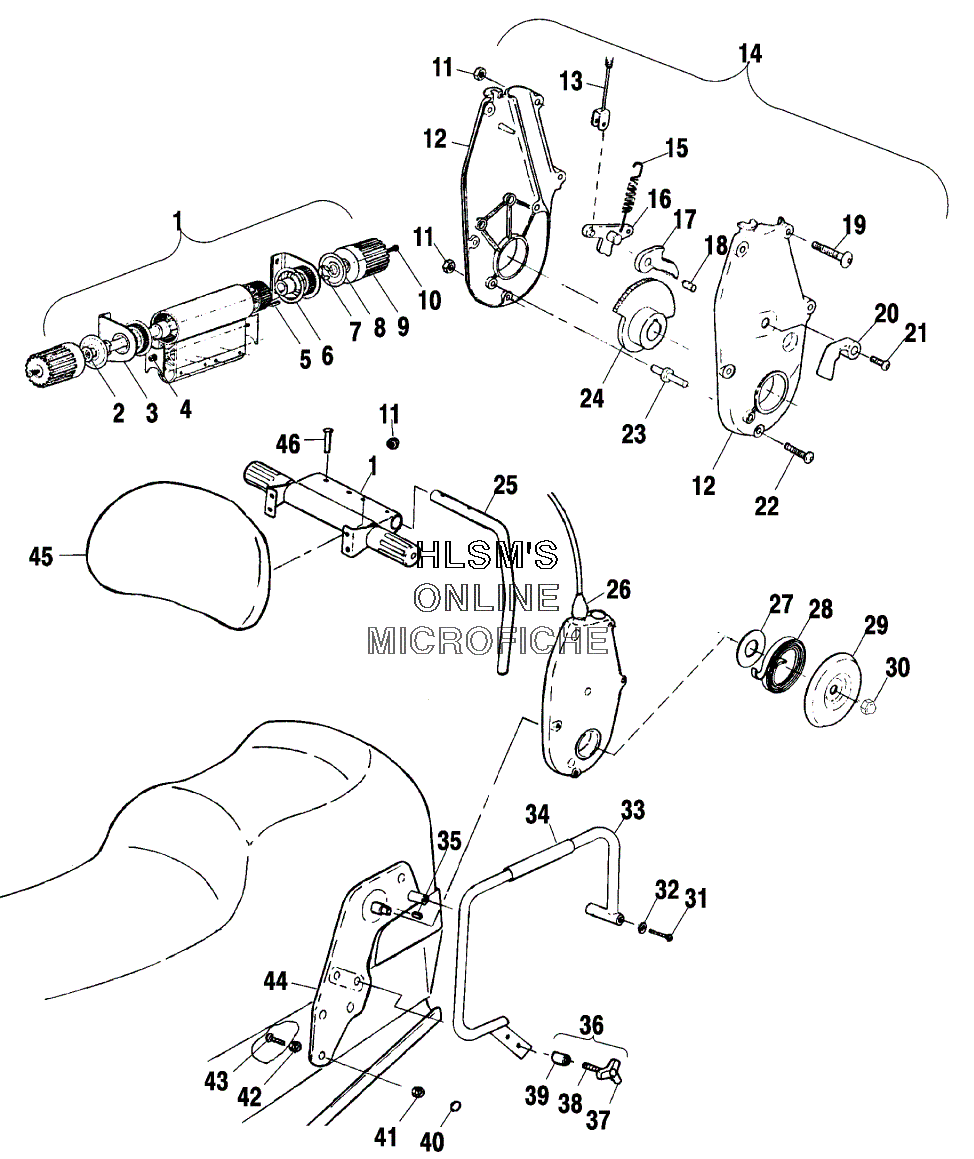

BACKREST ASSEMBLY для Polaris TRAIL TOURING (S00ST5BS) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    1012534 ADJUST ASSY., BACKREST CUSHION (INCL. 2, 10)
    ADJUST ASSY., BACKREST CUSHION (INCL. 2, 10)
  • 2
    7571635 WASHER, WAVE
    WASHER, WAVE
  • 3
    1012535 BRACKET, MOUNTING
    BRACKET, MOUNTING
  • 4
    7511866 SCREW
    SCREW
  • 5
    7721118 KEY, SQUARE
    KEY, SQUARE
  • 6
    5131207 ROTOR
    ROTOR
  • 7
    7710901 E-RING
    E-RING
  • 8
    7571634 WASHER
    WASHER
  • 9
    5432112 KNOB, ADJUST
    KNOB, ADJUST
  • 10
    7512087 SCREW
    SCREW
  • 11
    7542122 NUT, LOCK
    NUT, LOCK
  • 12
    5131211 HOUSING, ADJUST BACKREST (LEFT)
    HOUSING, ADJUST BACKREST (LEFT)
  • 12
    5131212 HOUSING, ADJUST BACKREST (RIGHT)
    HOUSING, ADJUST BACKREST (RIGHT)
  • 13
    7080582 CABLE ASSY., ACTUATOR
    CABLE ASSY., ACTUATOR
  • 14
    1012536 ADJUSTER ASSY., BACKREST (INCL. 11, 24)
    ADJUSTER ASSY., BACKREST (INCL. 11, 24)
  • 15
    7041411 SPRING, LOCKING
    SPRING, LOCKING
  • 16
    1012320 PAWL ASSY., LOCK MASTER (LEFT)
    PAWL ASSY., LOCK MASTER (LEFT)
  • 16
    1012321 PAWL ASSY., LOCK MASTER (RIGHT)
    PAWL ASSY., LOCK MASTER (RIGHT)
  • 17
    5211610 SECTOR, ENGAGEMENT
    SECTOR, ENGAGEMENT
  • 18
    5020806 PIN, PIVOT
    PIN, PIVOT
  • 19
    7515171 BOLT
    BOLT
  • 20
    5630561-067 LEVER, LOCKING (BLACK)
    LEVER, LOCKING (BLACK)
  • 21
    7516915 SCREW
    SCREW
  • 22
    7515170 BOLT
    BOLT
  • 23
    5020822 STUD, LIMITER
    STUD, LIMITER
  • 24
    1012537 GEAR, STATIONARY
    GEAR, STATIONARY
  • 25
    5224761-067 TUBE, BACKREST MOUNT (BLACK)
    TUBE, BACKREST MOUNT (BLACK)
  • 26
    5432259 COVER, CABLE (BLACK)
    COVER, CABLE (BLACK)
  • 27
    7555926 WASHER, THRUST
    WASHER, THRUST
  • 28
    7041412 SPRING, TORSION PRELOAD
    SPRING, TORSION PRELOAD
  • 29
    5241935-067 COVER, SPRING (1/2'' ID) (BLACK)
    COVER, SPRING (1/2'' ID) (BLACK)
  • 30
    7547015 NUT
    NUT
  • 31
    7512307 SCREW
    SCREW
  • 32
    7555734 WASHER
    WASHER
  • 33
    1012657-067 HANDLE, GRAB (LEFT/BLACK)
    HANDLE, GRAB (LEFT/BLACK)
  • 33
    1012658-067 HANDLE, GRAB (RIGHT/BLACK)
    HANDLE, GRAB (RIGHT/BLACK)
  • 34
    2460660 GRIP ASSY., PASSENGER
    GRIP ASSY., PASSENGER
  • 35
    7721125 KEY, HI PRO
    KEY, HI PRO
  • 36
    1012385 KNOB, GRAB HANDLE (INCL. 37, 39)
    KNOB, GRAB HANDLE (INCL. 37, 39)
  • 37
    5630386-067 KNOB, BACKREST
    KNOB, BACKREST
  • 38
    7515339 BOLT
    BOLT
  • 39
    5432123 SPACER, ADJUST KNOB
    SPACER, ADJUST KNOB
  • 40
    7080592 CAPLUG (3/4'')
    CAPLUG (3/4'')
  • 41
    7542324 NUT
    NUT
  • 42
    7547030 PALNUT
    PALNUT
  • 43
    7512377 BOLT
    BOLT
  • 44
    1012539-067 MAINFRAME (LEFT/BLACK)
    MAINFRAME (LEFT/BLACK)
  • 44
    1012540-067 MAINFRAME (RIGHT/BLACK)
    MAINFRAME (RIGHT/BLACK)
  • 45
    2682336 CUSHION ASSY., BACKREST
    CUSHION ASSY., BACKREST
  • 45
    2681833 COVER ASSY., BACKREST
    COVER ASSY., BACKREST
  • 46
    7661638 RIVET, INTERLOCK B
    RIVET, INTERLOCK B
