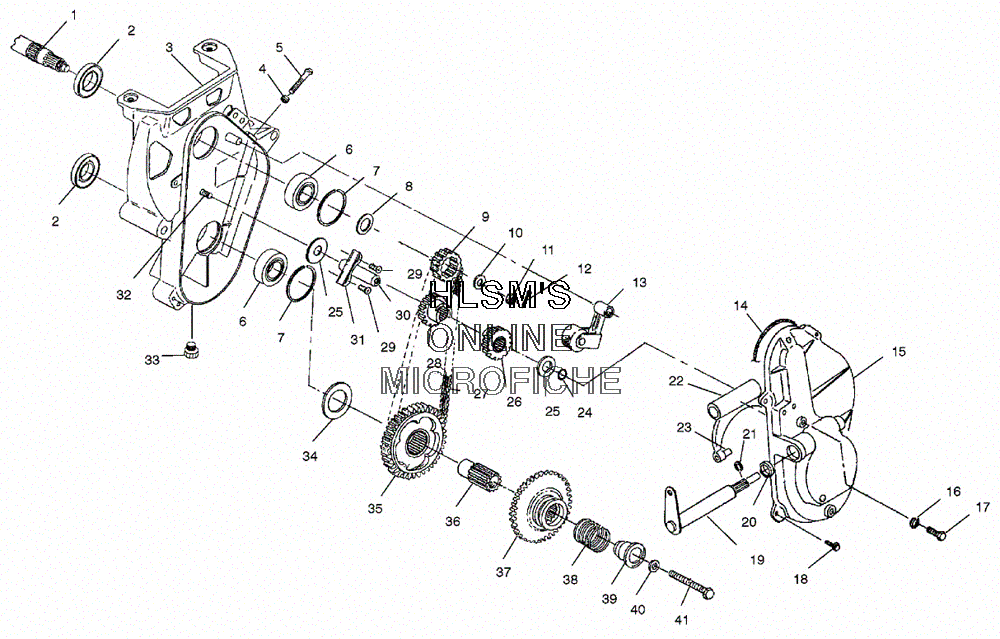

CHAINCASE ASSEMBLY для Polaris TRAIL TOURING (S00ST5BS) - 2000 года выпуска`
-
№АртикулНазвание
-
23610030 SEAL, OILSEAL, OIL
-
35132158 CHAINCASECHAINCASE
-
47542404 NUTNUT
-
57515551 SCREWSCREW
-
63514309 BEARING, BALLBEARING, BALL
-
77718406 RING, RETAININGRING, RETAINING
-
87555917 WASHERWASHER
-
93221095 SPROCKET, SPLINE (19 TEETH 3/4W)SPROCKET, SPLINE (19 TEETH 3/4W)
-
107571620 WASHER, SLOTTEDWASHER, SLOTTED
-
117542811 NUTNUT
-
127661203 PIN COTTERPIN COTTER
-
131332213 TIGHTENER, CHAINCASETIGHTENER, CHAINCASE
-
133553002 BEARINGBEARING
-
135630123 WHEEL, C/C IDLERWHEEL, C/C IDLER
-
137558702 WASHER THRUSTWASHER THRUST
-
137662210 PIN, CHAIN TIGHTENERPIN, CHAIN TIGHTENER
-
145410277 GASKET, CHAINCASEGASKET, CHAINCASE
-
155132159 COVER, CHAINCASECOVER, CHAINCASE
-
167558403 WASHER WROUGHTWASHER WROUGHT
-
177512492 SCREWSCREW
-
187512242 SCREWSCREW
-
191341221-067 SHAFT, SHIFT (BLACK)SHAFT, SHIFT (BLACK)
-
203610029 SEAL, OILSEAL, OIL
-
217710415 RING, RETAINERRING, RETAINER
-
222200363 SHIFT FORK/SHAFT KIT (INCL. 19, 20, 22, 23)SHIFT FORK/SHAFT KIT (INCL. 19, 20, 22, 23)
-
225130805 FORK, SHIFTFORK, SHIFT
-
237661826 PIN, SHIFT FORKPIN, SHIFT FORK
-
245410589 O-RINGO-RING
-
257555877 WASHER, THRUSTWASHER, THRUST
-
261341075 GEAR, SPUR PINIONGEAR, SPUR PINION
-
263554508 BEARING, NEEDLEBEARING, NEEDLE
-
273221113 CHAIN, HYVO (66 P 3/4W)CHAIN, HYVO (66 P 3/4W)
-
281341241 SPROCKET, PINIONSPROCKET, PINION
-
283554508 BEARING, NEEDLEBEARING, NEEDLE
-
297512019 SCREWSCREW
-
305131770 SHAFT, PINION W/WRENCH FLATSSHAFT, PINION W/WRENCH FLATS
-
315243162 BRACKET, CHAIN RETENTIONBRACKET, CHAIN RETENTION
-
327515477 BOLTBOLT
-
337052115 PLUGPLUG
-
347555871 WASHER, REVERSEWASHER, REVERSE
-
351341227 SPROCKET ASSY. (40 TEETH 3/4W)SPROCKET ASSY. (40 TEETH 3/4W)
-
365130720 COUPLER, DRIVECOUPLER, DRIVE
-
371341410 REVERSE GEAR ASSY.REVERSE GEAR ASSY.
-
387041887 SPRING, COMPRESSIONSPRING, COMPRESSION
-
395130727 RETAINER, DRIVE COUPLERRETAINER, DRIVE COUPLER
-
407552901 LOCK, WASHERLOCK, WASHER
-
417517581 SCREWSCREW
