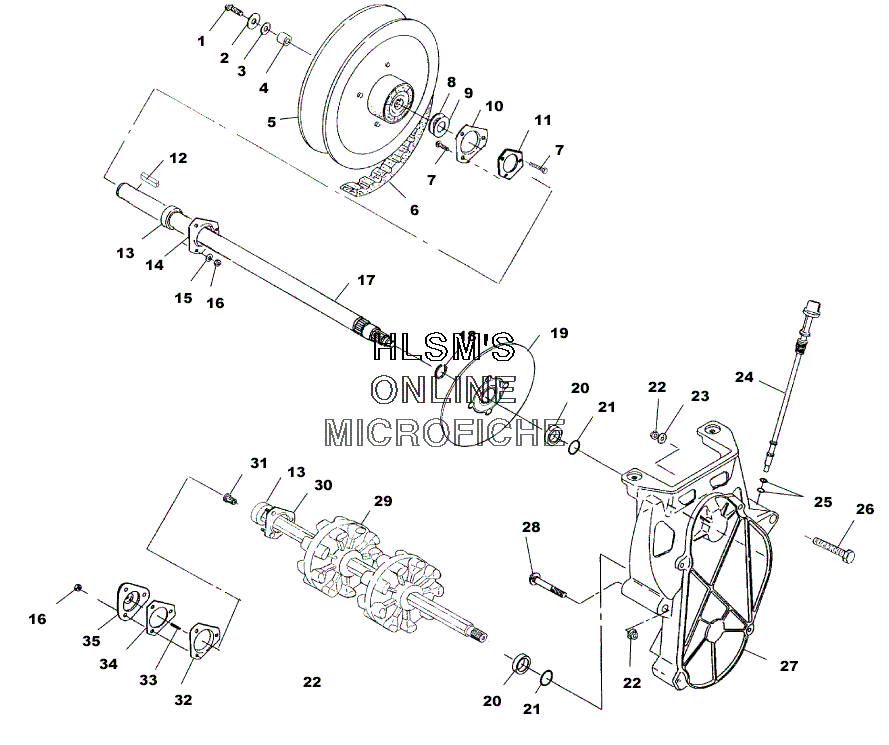

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris 500 XC (S00SB5AS) - 2000 года выпуска`
-
№АртикулНазвание
-
17515369 BOLTBOLT
-
27555701 WASHER, FLATWASHER, FLAT
-
37555734 WASHER (OPT)WASHER (OPT)
-
45020291 SPACERSPACER
-
63211074 BELT, DRIVEBELT, DRIVE
-
77512377 BOLTBOLT
-
87555864 BUSHING (OPT)BUSHING (OPT)
-
97556509 WASHER, SPECIAL (OPT)WASHER, SPECIAL (OPT)
-
105241359 FLANGE, RELUBE W/ZERKFLANGE, RELUBE W/ZERK
-
115811095 GASKET, JACKSHAFT (BLACK)GASKET, JACKSHAFT (BLACK)
-
127721116 KEYKEY
-
133514525 BEARINGBEARING
-
145222751 FLANGETTEFLANGETTE
-
157558402 WASHER STEELWASHER STEEL
-
167542324 NUTNUT
-
171332207 JACKSHAFT ASSY. (15 SPLINE) (INCL. 13, 18)JACKSHAFT ASSY. (15 SPLINE) (INCL. 13, 18)
-
187710422 RING, RETAININGRING, RETAINING
-
191910403 BRAKE DISC ASSY., SNOWBRAKE DISC ASSY., SNOW
-
205020588 SLEEVE, SEALSLEEVE, SEAL
-
215410613 O-RINGO-RING
-
227542423 NUTNUT
-
237558403 WASHER WROUGHTWASHER WROUGHT
-
245431419 DIPSTICK ASSYDIPSTICK ASSY
-
255410675 O-RINGO-RING
-
267515485 BOLTBOLT
-
287515428 BOLTBOLT
-
291590284 DRIVESHAFT ASSY., 2 DR WIDE, XHS (INCL. 13, 30, 31)DRIVESHAFT ASSY., 2 DR WIDE, XHS (INCL. 13, 30, 31)
-
301012945 FLANGETTE ASSY., W/SCREWSFLANGETTE ASSY., W/SCREWS
-
313280019 BUSHING, METAL SPEEDOMETERBUSHING, METAL SPEEDOMETER
-
325243529 FLANGETTE, OFFSET W/HOLEFLANGETTE, OFFSET W/HOLE
-
333280017 SQUARE, KEY SPEEDOMETERSQUARE, KEY SPEEDOMETER
-
345830012 GASKET, DRIVE ADAPTORGASKET, DRIVE ADAPTOR
-
353280116 ADAPTER, DRIVE W/ZERKADAPTER, DRIVE W/ZERK
