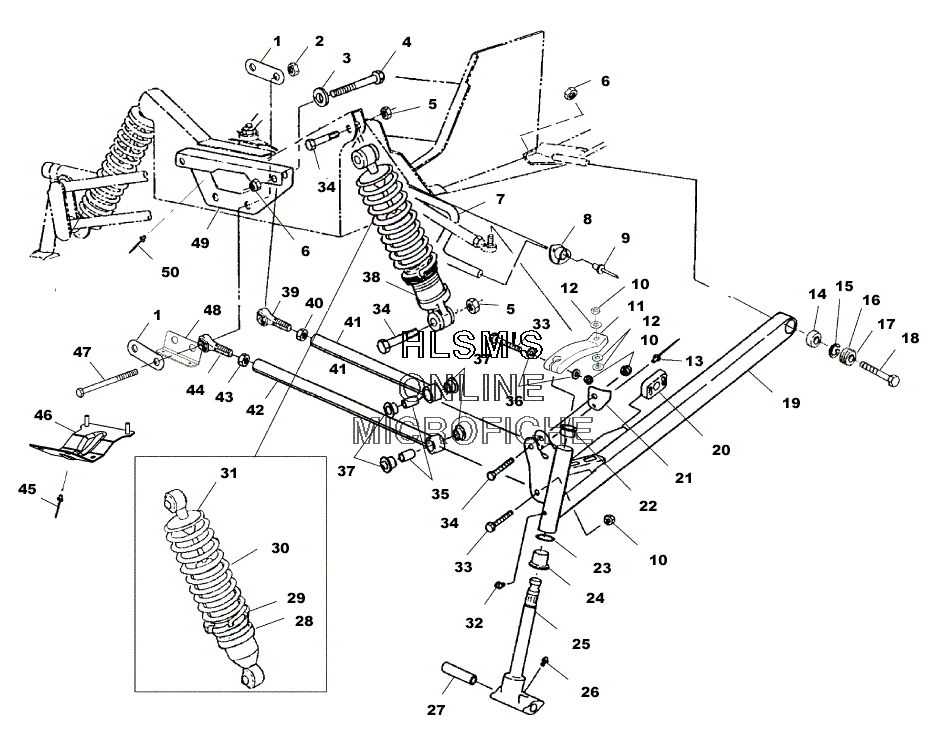

SUSPENSION - FRONT для Polaris 500 XC (S00SB5AS) - 2000 года выпуска
-
№АртикулНазвание
-
15211345 STRAP, SPACER (BOTTOM)STRAP, SPACER (BOTTOM)
-
27542703 NUT, FLEXNUT, FLEX
-
37558702 WASHER, THRUSTWASHER, THRUST
-
47512551 BOLTBOLT
-
57542439 NUT, NYLOKNUT, NYLOK
-
67542503 NUT, LOCKNUT, LOCK
-
75243008-067 BAR, TORSION (5/8) (BLACK)BAR, TORSION (5/8) (BLACK)
-
85432038 BUSHING, SWAY BARBUSHING, SWAY BAR
-
97621477 RIVETRIVET
-
107542403 NUT, LOCKNUT, LOCK
-
115131739 ARM, STEERING (LEFT)ARM, STEERING (LEFT)
-
115131740 ARM, STEERING (RIGHT)ARM, STEERING (RIGHT)
-
127555797 WASHERWASHER
-
137661643 RIVETRIVET
-
147061042 BEARING-SPHERICAL, PLASTIC (7/16)BEARING-SPHERICAL, PLASTIC (7/16)
-
157710437 RING, RETAININGRING, RETAINING
-
165811629 FOAM, TRAILING ARM MOUNTFOAM, TRAILING ARM MOUNT
-
177555801 WASHERWASHER
-
187512579 BOLTBOLT
-
191820713 TRAILING ARM ASSY. (LEFT/BLACK) (INCL. 14, 15)TRAILING ARM ASSY. (LEFT/BLACK) (INCL. 14, 15)
-
191820714 TRAILING ARM ASSY. (RIGHT/BLACK) (INCL. 14, 15)TRAILING ARM ASSY. (RIGHT/BLACK) (INCL. 14, 15)
-
205432561 SLIDE, SWAYBAR (5/8)SLIDE, SWAYBAR (5/8)
-
215242017-067 STOP, STEERING (LEFT)STOP, STEERING (LEFT)
-
215242018-067 STOP, STEERING (RIGHT)STOP, STEERING (RIGHT)
-
223573909 BUSHING, FLANGEBUSHING, FLANGE
-
237556509 WASHER, SPECIALWASHER, SPECIAL
-
243574208 BUSHING, SPINDLE HOUSINGBUSHING, SPINDLE HOUSING
-
256230099-067 SPINDLE, SHAFTSPINDLE, SHAFT
-
267080306 FITTING, LUBE W/BALL CHECKFITTING, LUBE W/BALL CHECK
-
275010158 BUSHING, PIVOTBUSHING, PIVOT
-
281500063 RETAINER, SPRING BODY THREADEDRETAINER, SPRING BODY THREADED
-
295431734 RING, SPRING PRELOAD ADJUSTERRING, SPRING PRELOAD ADJUSTER
-
307041551-067 SPRING, COMPRESSIONSPRING, COMPRESSION
-
315630580 RETAINER, SPRING SLOTTEDRETAINER, SPRING SLOTTED
-
327080433 ZERK, FITTING THREADEDZERK, FITTING THREADED
-
337517583 SCREWSCREW
-
347515415 BOLTBOLT
-
355010127 BUSHING, RADIUS RODBUSHING, RADIUS ROD
-
367555832 WASHERWASHER
-
375431486 BUSHING, RADIUS ROD PIVOT (OUTER)BUSHING, RADIUS ROD PIVOT (OUTER)
-
387041799 SHOCK-GAS, SELECT (IFS)SHOCK-GAS, SELECT (IFS)
-
397061010 ROD END (7/16) (LINED)ROD END (7/16) (LINED)
-
407542520 NUT, JAMNUT, JAM
-
411822588-067 RADIUS ROD (UPPER/BLACK)RADIUS ROD (UPPER/BLACK)
-
421822559-067 RADIUS ROD (LOWER/BLACK)RADIUS ROD (LOWER/BLACK)
-
437542711 NUT, JAMNUT, JAM
-
447061027 ROD END, RADIUS (LOWER/RIGHT)ROD END, RADIUS (LOWER/RIGHT)
-
457621452 RIVETRIVET
-
477512684 BOLTBOLT
-
485242578 BRACKET, RADIUS ROD (BOTTOM)BRACKET, RADIUS ROD (BOTTOM)
-
491012575-067 BRACE, BULKHEAD (FRONT/BLACK)BRACE, BULKHEAD (FRONT/BLACK)
-
507661638 RIVET, INTERLOCK BRIVET, INTERLOCK B
